MiniPack – Machine sous vide à double chambre et couvercle pivotant 220-240 V – MVS 620

Experience durability and reliable performance with the Minipack Double Chamber Swing Lid Vacuum Sealer. Designed for heavy-duty use in professional environments, this model combines simplicity with essential features for efficient packaging. The Minipack Double Chamber Swing Lid Vacuum Sealer is an essential tool for food processing facilities and commercial kitchens seeking reliable, efficient, and durable vacuum sealing solutions. Built with industry-standard components and user-friendly features, it meets the rigorous demands of professional food packaging.

Key Features:

Chamber & Seal Bars:

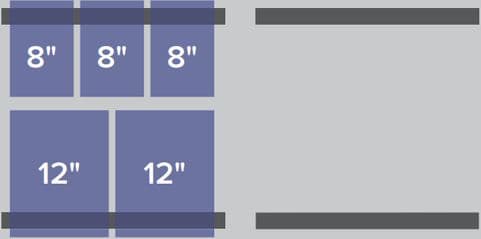

• • Chamber Width x Length: 26.50″ x 23.50″
  • Chamber Height: 10.00″
  • Number of Seal Bars (lid mounted): 2
  • Position of Seal Bars: Front & Back

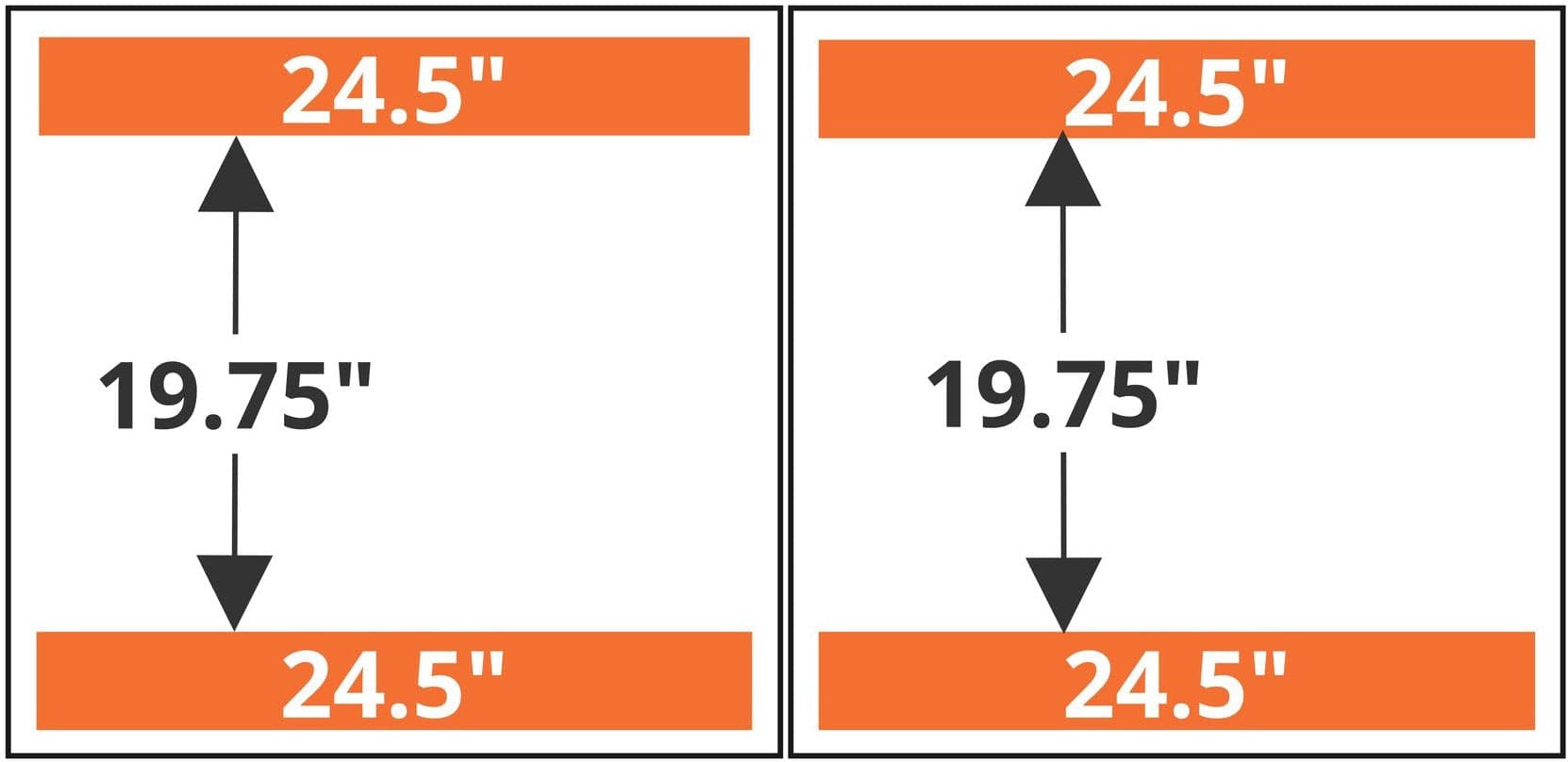

  • Seal Bar Length: 2 x 24.50″
  • Distance between Seal Bars: 19.75″
  • Quick Change Seal Bars for easy maintenance
  • Independent Power to each Seal Bar ensures consistent sealing performance

Performance:

• • Pump Type: Busch R5 Oil Rotary
  • Cycles per Minute up to 3 for efficient operation
  • Free Air Displacement @ 50Hz: 100 m³/h
  • Free Air Displacement @ 60Hz: 120 m³/h
  • Pump Power Rating: 5 hp
  • Power Supply: 200-240V / 3ph / 23A for reliable power delivery

Display & Controls:

• • Water Resistant Digital Display (IP65) for durability in demanding environments
  • Selectable Control (Time or %) for flexible operation
  • Electronic Millibar Sensor ensures precise vacuum control
  • Customizable Programs: 9 for tailored packaging needs

Operational Features:

• • Programmable Sealbar Pre-Heat for enhanced sealing efficiency
  • Programmable Sealing Time for customizable packaging
  • Gentle Air Return protects delicate products during the vacuum process
  • Gas Plus Program (pouch ballooning) for modified atmosphere packaging
  • Extra Vacuum (30 sec) option for increased vacuum intensity
  • Fast & Hygienic Lid Evacuation ensures quick cycle times
  • High Volume Density Plates for stable packaging operations

Service & Maintenance:

• • Pump Conditioning prolongs pump life
  • Self Diagnostic feature for easy troubleshooting
  • Indicating Display provides clear status updates
  • Toolless Valve Replacement for simplified maintenance
  • Programmable Service Reminder ensures timely maintenance

Warranty:

• • 1 Year Limited Warranty with an option for a 2nd Year Conditional Warranty under the VP Program

Housing & Dimensions:

• • Material: Stainless 304 for durability and hygiene
  • Lid Type / Lid Spring Alignment: Swing Lid / Horizontal
  • Width x Length: 58.75″ x 36.00″
  • Height (Lid open/closed): 53.00″ / 43.00″
  • Working Height: 33″ for ergonomic operation
  • Locking Casters ensure stability during operation

Shipping Weight & Dimensions:

• • Shipping Weight: 829 lbs
