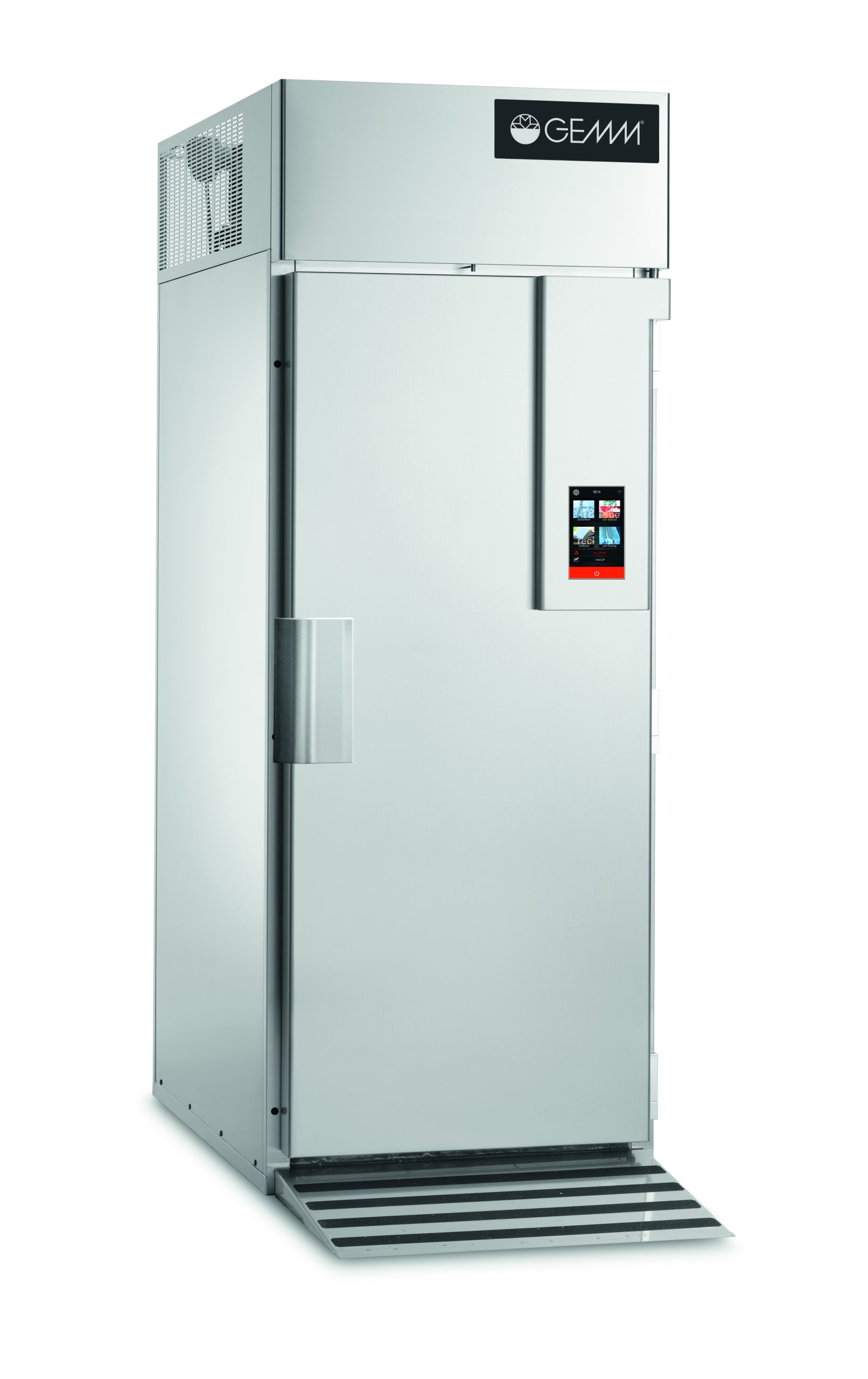

Gemm – Blast Chiller for Trolleys | Freezer

Delivery Notice: For items larger than 100 inches, please ensure that a delivery dock or forklift is available for delivery. Eurodib Blast Chillers for Trolleys by Gemm are designed to meet the medium to large­ scale food preparation needs, from restaurant kitchens to semi-industrial operators. – Built entirely of AISI 304 stainless steel, fitted with reinforced insulated floors and ramps. – High-performance condensing units with variable fan speed allow for consistent temperature control. – 7″ touch-screen control board (displays in 8 languages) including programs like: continuous cycle for ice cream, fish sanitizing cycle and a self-diagnostic system. USB device and core probe included. – Working cycle: by time or probe – Core probe (? L? handle) included for core temperature control – Automatic core probe detection: switch to probe mode – Internal LED light – Immediate fan interruption upon door opening – Heated frame and threshold, three­ chamber magnetic seal, compensation valve – Internal stainless steel AISI 304 finish and rounded corners with R=15 mm – Insulating panels (100 mm thick): injected with CFC and HCFC-free polyurethane foam of 42 Kg/m3 between two AISI 304 stainless steel sheets, with thermal transmittance of U=0.23 W/m2K – Insulated (90 mm) and reinforced floor in 15/1O mm AISI 304 stainless steel – Suitable for recessed floor installation – Standard ramp included (20.5?) *Trolley not included Control Panel: – Hard/soft chilling and blast freezing – Customize the parameters of each cycle: time, ventilation speed, temperature – Create your own recipe book: save up to 100 different chilling/freezing cycles – Special preset cycles: pre-cooling, ice cream hardening, room drying, fish sanitation Manual and automatic defrost – Customized blast chilling cycle: create 4 distinct phases according to time, room temperature, product temperature and ventilation – Automatic storage function and option to save the recipe at the end of each new cycle Preset recipes included – Continuous diagnostic and alarm display Internal Features No. 1 vertical evaporator high thermal exchange coefficient Multi-circuit Anticorrosion cataphoresis treatment Air conveyors facilitate high performance without dehydrating products Evaporators equipped with no. 3 Air speed: 0.7-7 m/s, variable through the control board. Air range for each evaporator: 10,500 m3/h Automatic defrost outside working cycles only Accessible evaporator wall to facilitate cleaning and maintenance Stainless steel bumper to maintain trolley position during use USB PORT: Upload and download recipes. Download HACCP alarms. Historical machine operation file format Excel (.csv). Machine parameters and updates. WI-FI CONNECTION: Data transfer with the remote monitoring system via Wi-Fi connection. Connect and monitor the blast chiller in real time from smartphone and PC and receive alerts in case of abnormal activity. Download alarms and HACCP alarms. Machine operation history in Excel or graphic format. parameters. OPTIONS (Available upon request) Ion sterilizer Additional pass-through door Water cooled condensing unit Low noise housing condensing unit Ramp L = 110 cm Door with left hinges Thawing function Version without condensing unit Delivery Notice: For items larger than 100 inches, please ensure that a delivery dock or forklift is available for delivery.

Specifications

Input voltage: 230V 3PH (60 Hz), 5285W, 16A Compressor power: 3.5 HP Max absorbed power**: 4990W Cooling power***: 3980W Trolley capacity GN 2/1: (23.6″ x 31.5″) (60×80 cm) Total volume capacity: 40.5 CuFt (1147 L) Ramp Length: 20.5″ (52 cm) Ramp Pitch: 7° Chilling Capacity* (90 mins.) 90°C to 3°C = 95 Kg 197°F to 37 °F = 209.5 lb Freezing Capacity* (240 mins.) 90°C to -18°C = 75 Kg 197°F to 0°F = 165 lbs External dimensions+ (L x W x H): 52″ x 35″ x 95.3″ Internal dimensions (L x W x H) : 33.9″ x 28″ x 73.6″ Gas: R449A Defrosting system: Automatic with hot gas Climatic class: 5 +Does not include ramp *Ambient temperature of 30°C (86°F). Loading sample according to EN 17032:2018 **Evap. -10°C (14°F) Cond. 45°C (113°F) ***ASHARE: Evap. -23.3°C (-9.94°F) Cond. 54.4°C (129.9°F) Origin : Italy Warranty: 1 year parts and labor, 3 years compressor Height: 95.25″ Length: 52″ Width: 35″ Weight: 1052 lbs Package Length: 39.4″ Package Height: 101″ Package Weight: 1138 lbs UPC: 628242149600Input voltage: 230V 3PH (60 Hz), 5285W, 16A Compressor power: 3.5 HP Max absorbed power**: 4990W Cooling power***: 3980W Trolley capacity GN 2/1: (23.6″ x 31.5″) (60×80 cm) Total volume capacity: 40.5 CuFt (1147 L) Ramp Length: 20.5″ (52 cm) Ramp Pitch: 7° Chilling Capacity* (90 mins.) 90°C to 3°C = 95 Kg 197°F to 37 °F = 209.5 lb Freezing Capacity* (240 mins.) 90°C to -18°C = 75 Kg 197°F to 0°F = 165 lbs External dimensions+ (L x W x H): 52″ x 35″ x 95.3″ Internal dimensions (L x W x H) : 33.9″ x 28″ x 73.6″ Gas: R449A Defrosting system: Automatic with hot gas Climatic class: 5 +Does not include ramp *Ambient temperature of 30°C (86°F). Loading sample according to EN 17032:2018 **Evap. -10°C (14°F) Cond. 45°C (113°F) ***ASHARE: Evap. -23.3°C (-9.94°F) Cond. 54.4°C (129.9°F) Origin : Italy Warranty: 1 year parts and labor, 3 years compressor Height: 95.25″ Length: 52″ Width: 35″ Weight: 1052 lbs Package Length: 39.4″ Package Height: 101″ Package Weight: 1138 lbs UPC: 628242149600
