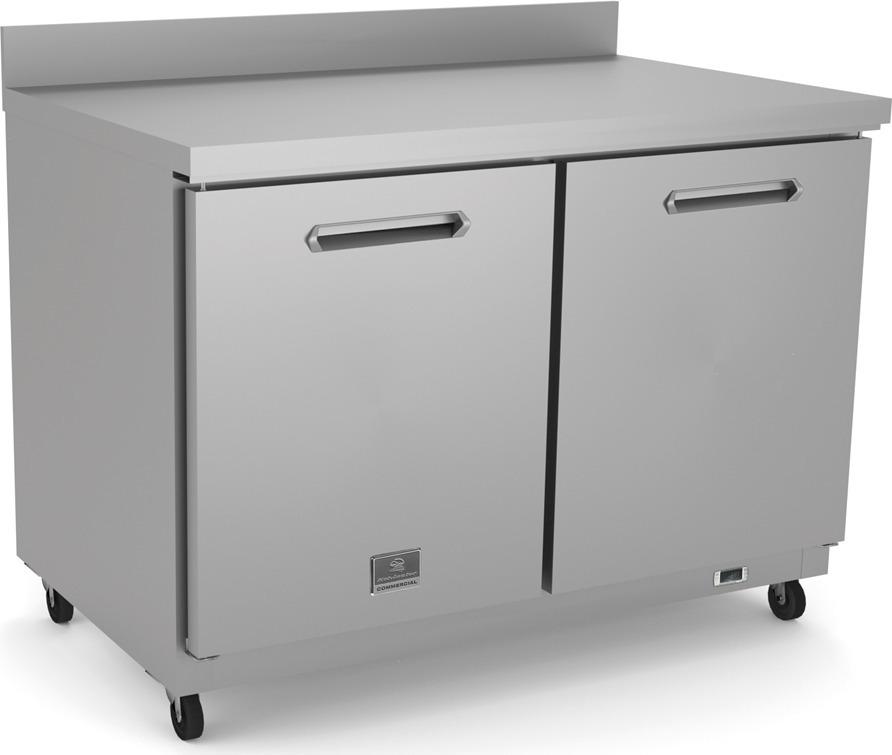

Kelvinator Commercial – 48″ Under Counter Refrigerator with Worktop & 2 Doors – KCHUCWT48R
- 3-yearmanufacturer warranty
- Voltage: 115V
- Phase: Single phase
- Plug: NEMA 5-15P
- Refrigerant: R-600A
- Certification: ETL certified
- Certification: ETL Sanitation certified
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
From about $421.44/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $157.46/mo · $36.34/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- 738300
- Brand
- Kelvinator
- Department
- Refrigeration & Ice
- Voltage
- 115V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Plug
NEMA plug
The NEMA code names the shape of the plug and the outlet it fits (for example 5-15P is the standard 15 A, 120 V plug). The outlet at the counter has to match it, or an electrician fits one that does. - NEMA 5-15P
- Refrigerant
Refrigerant
The gas inside the cooling circuit. R-290 (propane) and R-600a are the newer low-impact refrigerants most makers now use; a service technician works with whichever one the unit holds. - R-600A
- Certifications
ETL
An Intertek ETL listing to the applicable safety standards. Equipment installed in Canada normally carries the Canadian version, cETLus or cETL, rather than the US-only mark.ETL Sanitation
An Intertek listing to food equipment sanitation standards: the materials and design were judged cleanable and suitable for food contact.- Manufacturer warranty
- 3 years, parts and labour
About this item
- For decades, the Kelvinator brand has been synonymous with quality and performance.
- With the introduction of the latest Kelvinator Commercial line of food service refrigerators and freezers, Kelvinator has delivered to the marketplace a line of products for professionals, designed to provide years of trouble-free service in demanding commercial applications.
- Kelvinator backs these products with a three-year parts and labor, five-year compressor that is supported by a coast to coast network of authorized service technicians.
- All Kelvinator Commercial refrigerators and freezers meet NSF / ANSI 7 standards for food service application.
See moreSee less
- 2-door refrigerated counter top with exterior back panel in aluminium, exterior bottom panel in galvanized steel, exterior side and top panel in 430 stainless steel; interior back, top and bottom panels in 304 stainless steel.
- Fin & tube condenser to improve the performances in high temperature environments.
- Automatic Defrost Cooling System and temperature control.
- External temperature display.
Item details
Certifications
- Certifications
- ETL, ETL Sanitation
Warranty & Origin
- Warranty
- 3 Years Parts & Labour, 5 Years Compressor
Electric
- Supply voltage
- 115 V/1 ph/60 Hz
- Plug type
- USA NEMA 5-15P
- Current consumption
- 3 Amps
- Compressor power
- 1/8 hp
- Power Cable Length
- 2500 mm
Key Information
- Number and type of grids (included)
- 2 (538x425)
- Door hinges
- 1 Left+1 Right
- Number and type of doors
- 2 Full
- Type of external material
- Stainless Steel
- Type of internal material
- 304 AISI
Sustainability
- Refrigerant type
- R600a
- Refrigerant weight
- 75 g
Capacity
- Gross capacity
- 12 cu.feet
Refrigeration Data
- Operating temperature min.
- 32 °F (0 ° C)
- Operating temperature max.
- 41 °F (5° C)
- Defrost type
- Auto Defrost
- Evaporator type
- Finned
- Refrigerant unit side
- Back
Dimensions
- Weight
- 214 lb (97.1 kg)
- Width
- 48.2" (122 cm)
- Depth
- 29.9" (76 cm)
- Height
- 39.6" (101 cm)
Shipping
- Box length
- 49.8" (126 cm)
- Box width
- 31.5" (80 cm)
- Box height
- 42.1" (107 cm)
- Shipping weight
- 265 lb (120.2 kg)
Specs
- Model
- 738300
- Brand
- Kelvinator
- Department
- Refrigeration & Ice
- Availability
- In stock
Certifications1
- Certifications
- ETL, ETL Sanitation
Warranty & Origin1
- Warranty
- 3 Years Parts & Labour, 5 Years Compressor
Electric5
- Supply voltage
- 115 V/1 ph/60 Hz
- Plug type
- USA NEMA 5-15P
- Current consumption
- 3 Amps
- Compressor power
- 1/8 hp
- Power Cable Length
- 2500 mm
Key Information5
- Number and type of grids (included)
- 2 (538x425)
- Door hinges
- 1 Left+1 Right
- Number and type of doors
- 2 Full
- Type of external material
- Stainless Steel
- Type of internal material
- 304 AISI
Sustainability2
- Refrigerant type
- R600a
- Refrigerant weight
- 75 g
Capacity1
- Gross capacity
- 12 cu.feet
Refrigeration Data5
- Operating temperature min.
- 32 °F (0 ° C)
- Operating temperature max.
- 41 °F (5° C)
- Defrost type
- Auto Defrost
- Evaporator type
- Finned
- Refrigerant unit side
- Back
Dimensions4
- Weight
- 214 lb (97.1 kg)
- Width
- 48.2" (122 cm)
- Depth
- 29.9" (76 cm)
- Height
- 39.6" (101 cm)
Shipping4
- Box length
- 49.8" (126 cm)
- Box width
- 31.5" (80 cm)
- Box height
- 42.1" (107 cm)
- Shipping weight
- 265 lb (120.2 kg)
Description
For decades, the Kelvinator brand has been synonymous with quality and performance. With the introduction of the latest Kelvinator Commercial line of food service refrigerators and freezers, Kelvinator has delivered to the marketplace a line of products for professionals, designed to provide years of trouble-free service in demanding commercial applications. Kelvinator backs these products with a three-year parts and labor, five-year compressor that is supported by a coast to coast network of authorized service technicians. All Kelvinator Commercial refrigerators and freezers meet NSF / ANSI 7 standards for food service application. 2-door refrigerated counter top with exterior back panel in aluminium, exterior bottom panel in galvanized steel, exterior side and top panel in 430 stainless steel; interior back, top and bottom panels in 304 stainless steel. Fin & tube condenser to improve the performances in high temperature environments. Automatic Defrost Cooling System and temperature control. External temperature display. Features: External temperature display Removable door gasket for easy cleaning operations Fin & Tube Condenser improves performance in high temperature environments Automatic Defrost Cooling System provides worry-free performance Electronic Temperature Control, quick and simple to set, with control display for easy monitoring Heavy duty vinyl coated steel shelves High efficiency components to minimize the energy consumption still guaranteeing the highest performances Cabinet and door insulated with high density polyurethane for low environmental impact Reversible door Self-closing door with 90-degree stay-open feature Heavy duty casters CFC and HCFC free (ecological refrigerant type: R600a) Pre-wired heavy duty power cord Heavy duty door hinges Magnetic door gasket removable without tools for easy cleaning
Manuals and documents2
Videos1
Reviews
No reviews yet. If this unit is in your kitchen, the next buyer would like to hear how it runs.
Questions about this product
What are the dimensions and weight of the Kelvinator 738300?
The Kelvinator 738300 measures 48.2" (122 cm) wide, 29.9" (76 cm) deep and 39.6" (101 cm) high, and weighs 214 lb (97.1 kg).
What power supply does the Kelvinator 738300 need?
Supply voltage: 115 V/1 ph/60 Hz; Plug type: USA NEMA 5-15P; Compressor power: 1/8 hp; Power Cable Length: 2500 mm.
What is the capacity of the Kelvinator 738300?
Gross capacity: 12 cu.feet.
What certifications does the Kelvinator 738300 have?
Certifications: ETL, ETL Sanitation.
Is the Kelvinator 738300 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Kelvinator 738300?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Kelvinator 738300?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Kelvinator 738300?
The manufacturer lists: 3 Years Parts & Labour, 5 Years Compressor. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Kelvinator 738300?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
