Unox · XAFR04HSETDV
Unox – XAFR-04HS-ETDV ARIANNA Bakerlux Half-Size Convection Oven – NXSXAFR04HSETDV
- 1-yearmanufacturer warranty
- ENERGY STARcertified
- Current: 15.7 A
- Power: 3,800 W
- Plug: NEMA 6-20P
- Construction: Stainless steel
- Certification: NSF certified
- Certification: ENERGY STAR
Questions about this product
What are the dimensions and weight of the Unox XAFR04HSETDV?
The Unox XAFR04HSETDV measures 23.6" (60 cm) wide, 28.3" (72 cm) deep and 19.7" (50 cm) high, and weighs 88 lb (39.9 kg).
What power supply does the Unox XAFR04HSETDV need?
Watts: 3800W; Amperage: 15.7A; Nema: 6-20P; Volts: 208-240V; Volts: 208; Power supply: Electric.
What is the capacity of the Unox XAFR04HSETDV?
Capacity: 4 shelves (13" x 18").
What certifications does the Unox XAFR04HSETDV have?
cMETus: Yes; Energy Star: Yes; NSF: Yes.
Is the Unox XAFR04HSETDV in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Unox XAFR04HSETDV?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Unox XAFR04HSETDV?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Unox XAFR04HSETDV?
The manufacturer lists: 1 Year. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Unox XAFR04HSETDV?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
Can I use humidity settings and programmable recipes for pastries?
Yes; the control panel provides programmable cycles and adjustable humidity so recipes that require injected steam or staged baking can be set and reused.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Save $2,536.7644% below the maker's list price of $5,750.00
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
From about $279.50/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $104.43/mo · $24.10/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- XAFR04HSETDV
- Brand
- Unox
- Department
- Cooking Equipment
- Plug
NEMA plug
The NEMA code names the shape of the plug and the outlet it fits (for example 5-15P is the standard 15 A, 120 V plug). The outlet at the counter has to match it, or an electrician fits one that does. - NEMA 6-20P
- Current
Current
How many amps the unit draws at full load. The circuit feeding it has to be rated above this figure, which an electrician checks before installation. - 15.7 A
- Power
- 3,800 W
- Construction
- Stainless steel
- Certifications
NSF
A sanitation mark from NSF: the design and materials were judged cleanable and suitable for food use. It is not an electrical safety certification; health inspectors commonly look for it on food equipment.ENERGY STAR
An efficiency label, administered in Canada by Natural Resources Canada, for equipment that meets set energy-use criteria. Some utilities offer rebates on certified models.- Manufacturer warranty
- 1 year, parts and labour
About this item
- A half-size convection oven with humidity control and programmable touch controls that bakes on four 460 x 330 mm trays.
- Four half-size (460 x 330 mm) trays at once suit a café, bakery corner or restaurant baking and reheating small to medium batches. Humidity control and programmable cycles let staff repeat pastry and bake-off recipes the same way each time.
- Check before ordering: Confirm electrical supply: 208-240V at 15.7A single-phase and that the available outlet matches a 6-20P plug. Verify the intended tray format and spacing: this model accepts four 460 x 330 mm trays with a 3" shelf clearance. Allow overhead and front clearance for the top-to-bottom door swing—confirm space above the unit to fully open the door. Check physical handling: unit weight is 88 lb with a shipping weight of 93 lb and listed chassis dimensions to ensure service access and counter fit.
- The Unox XAFR-04HS-ETDV ARIANNA Bakerlux Half-Size Convection Oven is a professional-grade solution built for bakeries and pastry shops seeking exceptional productivity and consistent baking results.
See moreSee less
- With its advanced TOUCH technology, this oven combines efficiency and simplicity, all within a compact footprint of less than a square meter.
- The intuitive control panel allows easy access to all functions, including programmable recipes, adjustable humidity levels, and multi-step baking processes.
- fitted with Unox’s innovative STEAM.
- Plus, the XAFR-04HS-ETDV instantly generates humidity inside the baking chamber, ensuring perfectly golden, evenly baked products with every batch.
Specifications
Certifications3
- cMETus
- Yes
- Energy Star
- Yes
- NSF
- Yes
Specifications22
- Shelf clearance
- 3"
- Fans
- 1
- Temperature range
- 0–260°C / 32–500°F
- Chamber dimensions
- 13.75" L x 19.5" W x 13.2" H
- Warranty
- 1 Year
- Country of Origin
- Italy Warranty: 1 year parts and labor (glass door not included)
- Plugs
- 6-20P (220V)
- Oven Series
- BakerLux
- Number of oven shelves
- 4
- Oven Door swings
- Top to bottom
- Volts
- 208
- Height (chamber)
- 19.7"
- Length (chamber)
- 28.3"
- Width (chamber)
- 23.6"
- Type
- Commercial convection ovens with humidity
- Trays
- 4 trays 460x330
- Panel
- 2.4" Touch control panel
- Power supply
- Electric
- Tray size
- 460x330
- Voltage
- 240V 1~ / 208V 1~
- Electric power
- 2,9-3,8 kW
- Frequency
- 60 Hz
Construction2
- Door swing
- Top to bottom
- Construction
- Stainless steel housing & cooking chamber, double-pane glass door, insulated baking cavity for thermal efficiency and user safety
Electrical4
- Watts
- 3800W
- Amperage
- 15.7A
- Nema
- 6-20P
- Volts
- 208-240V
Capacity1
- Capacity
- 4 shelves (13" x 18")
Dimensions4
- Width
- 23.6" (60 cm)
- Depth
- 28.3" (72 cm)
- Height
- 19.7" (50 cm)
- Weight
- 88 lb (39.9 kg)
Shipping1
- Shipping weight
- 93 lb (42.2 kg)
Description

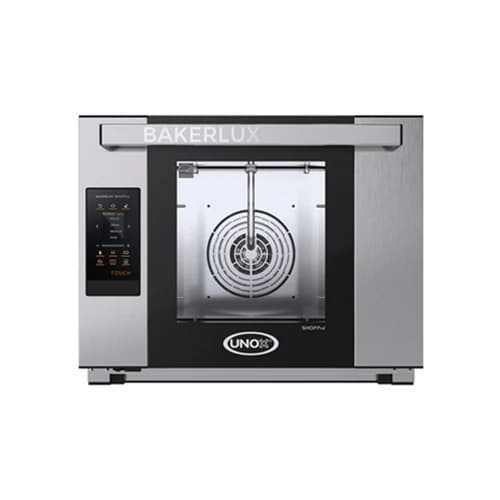

The Unox XAFR-04HS-ETDV ARIANNA Bakerlux Half-Size Convection Oven is a professional-grade solution built for bakeries and pastry shops seeking exceptional productivity and consistent baking results. With its advanced TOUCH technology, this oven combines efficiency and simplicity, all within a compact footprint of less than a square meter. The intuitive control panel allows easy access to all functions, including programmable recipes, adjustable humidity levels, and multi-step baking processes. fitted with Unox’s innovative STEAM. Plus, the XAFR-04HS-ETDV instantly generates humidity inside the baking chamber, ensuring perfectly golden, evenly baked products with every batch. The AIR. Plus bi-directional fan system delivers uniform air and heat distribution, providing consistent results across all trays. For ultimate baking precision, the DRY. Plus feature effectively expels excess humidity from the chamber, helping create a desirable internal product structure and maintaining texture for hours. The EFFICIENT. Power system delivers rapid heat-up times, reaching temperatures from 60°C to 260°C (140°F to 500°F) in just five minutes, while the low-e glass lining and high-performance insulation minimize energy consumption. Its long-lasting stainless steel housing, cooking chamber, and double-pane glass door deliver longevity and thermal efficiency. The interior LED lighting delivers excellent visibility, while the insulated baking cavity enhances safety. Additional delivers include a proofer control option (proofer is sold separately), fan shut-off when the door is opened, and an automatic door locking mechanism for enhanced safety. The oven delivers two fan speeds, humidity settings from 0% to 100%, and the ability to program up to 99 recipes with 1-9 baking steps. With a 2.0 cu. ft. chamber capacity and a shelf clearance of 3 inches, the Unox XAFR-04HS-ETDV accommodates various baking needs. Made in Italy and backed by a one-year warranty, it is an suitable choice for professionals looking to elevate their baking operations. *NOTE: Half-Size Proofer is sold separately. If this item is required by a certain date, please contact Norpex before ordering to guarantee delivery times can be met. If you have any questions about this item or the terms above, please or email us at commercial@Norpex.
Manuals and documents2
Videos1
