Valoriani · 48145 · ROTATIVO120-RI

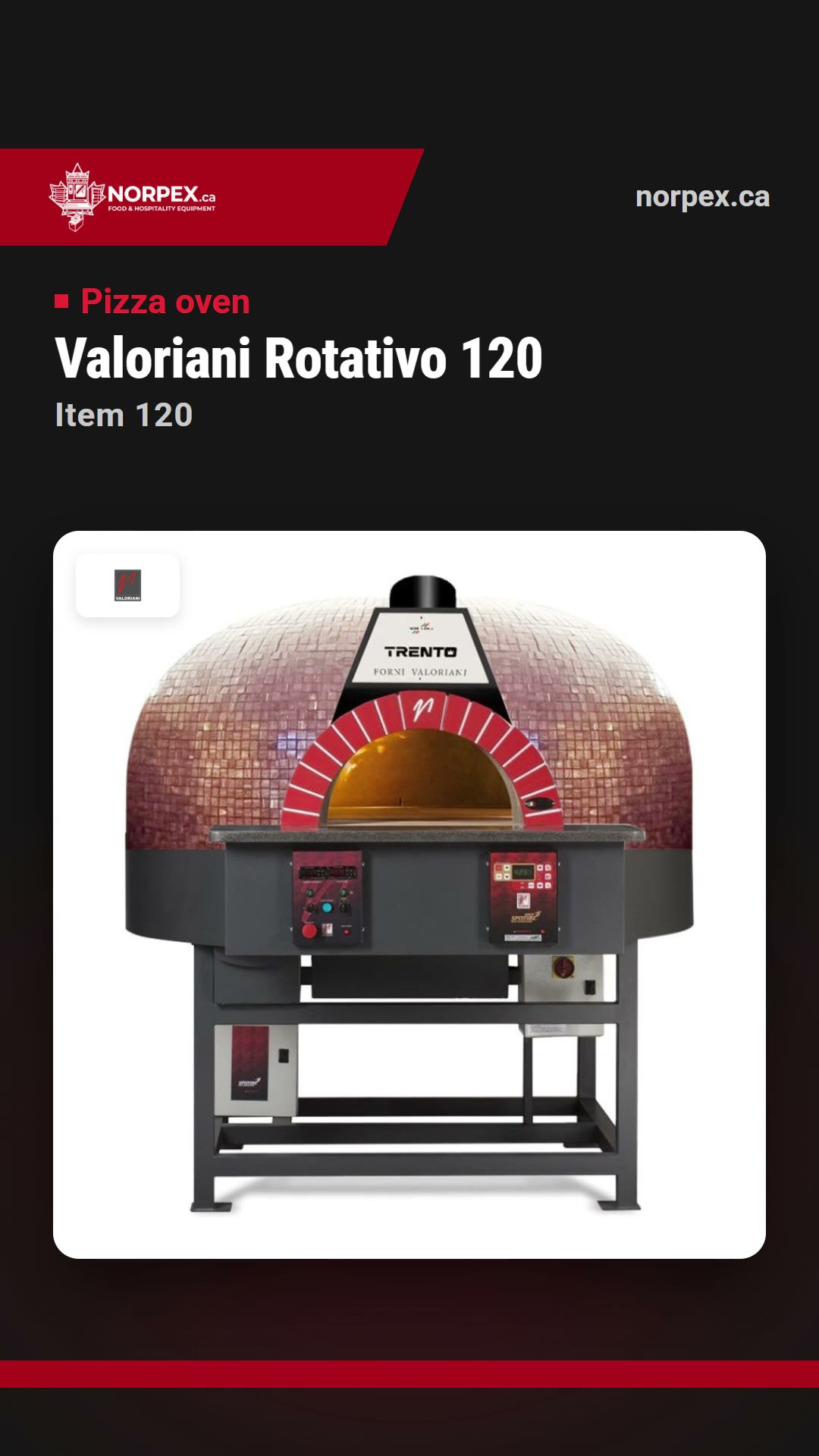

Trento Valoriani Rotativo 120 Gas and Wood Fired Pizza Oven with Rotating Deck, Red Iridium Mosaic – 100,000 BTU
- 1-yearmanufacturer warranty
Made inItaly
- Voltage: 110-120V
- Phase: Single phase
- Plug: NEMA 5-15P
- Certification: cETLus certified
- Certification: ETL Sanitation certified
Questions about this product
What are the dimensions and weight of the Valoriani 48145?
The Valoriani 48145 measures 70.9" (180 cm) wide, 79.8" (203 cm) deep and 42.3" (107 cm) high, and weighs 3637.6 lb (1650.0 kg).
What power supply does the Valoriani 48145 need?
BTU (Max per Hour): 98,952; BTU (Power in Working Order): 69,266; Kcal (Power in Working Order): 17,455; Power: Burner - 90 W | Rotation - 200 W; Amps: Burner - 1 A | Rotation - 2 A; Electrical: 110-120Vac / 60Hz / 1Ph.
What is the capacity of the Valoriani 48145?
Pizza Capacity (Dia. 11”-12”): 8-9; BTU (Max per Hour): 98,952.
What certifications does the Valoriani 48145 have?
Certifications: cETLus, ETL Sanitation.
Is the Valoriani 48145 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Valoriani 48145?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Valoriani 48145?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Valoriani 48145?
The manufacturer lists: 1 Year Parts Warranty, 1 Year Labor Warranty. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Valoriani 48145?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
Can this oven run on gas only, wood only, or both at the same time?
The unit is configured for combined gas and wood operation; confirm with the supplier which fuel connections and on-site preparations are needed for the chosen mode.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Save $32,966.1834% below the maker's list price of $94,546.17
Questions before you buy?
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
- LEASEAbout $2,001.35/mo · $461.85/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- 48145
- Brand
- Valoriani
- Department
- Cooking Equipment
- Maker's model
- ROTATIVO120-RI
- Voltage
- 110-120V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Plug
NEMA plug
The NEMA code names the shape of the plug and the outlet it fits (for example 5-15P is the standard 15 A, 120 V plug). The outlet at the counter has to match it, or an electrician fits one that does. - NEMA 5-15P
- Certifications
cETLus
An Intertek ETL listing to both Canadian and US safety standards; the small c and us name the two countries. Canadian electrical inspectors commonly accept it like CSA and cULus.ETL Sanitation
An Intertek listing to food equipment sanitation standards: the materials and design were judged cleanable and suitable for food contact.- Manufacturer warranty
- 1 year, parts and labour
- Country of origin
- Italy
About this item
- A combined gas-and-wood pizza oven with a rotating floor that bakes 8-9 pizzas of 11–12” at a time, for pizzerias that want wood-fired flavour with gas control in view of guests.
- The rotating floor holds 8-9 pizzas of 11–12” diameter at once, which suits a busy pizzeria loading and pulling several pies per cycle. Gas and wood firing together give wood-fired flavour with gas control, and the rotation means one operator can work the oven.
- Check before ordering: Confirm electrical supply with your electrician: 110-120Vac / 60Hz / 1Ph and rotation/burner draw listed as 1 A and 2 A. Decide fuel connection and venting: this model is supplied for gas and wood firing—confirm the gas hookup type and chimney/flue routing with a gas fitter and contractor. Plan extraction and hood capacity to match the oven’s required extraction flow of 290 / 310 Nm³/h and the 8” / 200 mm flue diameter. Confirm site access and floor capacity for the crate: 80" x 87" x 81" and 4400 lb shipping weight.
- Choice of Pre-Cast Modular or pre-assembled pizza ovens – This particular model has been pre-fitted with Red-Iridium Mosaic and Red Brick Customization.
See moreSee less
- Presents a spectacular cooking display, adding ambiance.
- Cost-effective operation with a choice of wood-only, gas-only, or gas/wood combination.
- Fast cooking times – a pizza will cook perfectly in 2-3 minutes – Perfect for Neapolitan-style Pizzas.
- Ability to cook an array of different foods – from pizzas to your complete menu.
Specifications
Specifications17
- Pizza Capacity (Dia. 11”-12”)
- 8-9
- Color/Material
- Red Iridium Mosaic and Red Brick
- BTU (Max per Hour)
- 98,952
- BTU (Power in Working Order)
- 69,266
- LPG Gas Working (Kcal Max)
- 24,935
- Kcal (Power in Working Order)
- 17,455
- Power
- Burner - 90 W | Rotation - 200 W
- Amps
- Burner - 1 A | Rotation - 2 A
- Electrical
- 110-120Vac / 60Hz / 1Ph
- Required Extraction Flow
- 290 / 310 Nm³/h
- Heating Time (to 300°C / 572°F)
- 100 minutes
- Working Temperature
- 260-538°C (500-1000°F)
- Flue Diameter
- 8” / 200 mm
- Arch Opening (W x H)
- 22” x 11.5” / 550 x 290 mm
- Rotating Floor
- 47” x 47” / 1200 x 1200 mm
- Interior Dimensions (W x H)
- 55” x 55” / 1400 x 1400 mm
- Stand Net Dimensions (W x D x H)
- 52.8” x 46.5” x 31.7” / 1340 x 1180 x 805 mm
Details4
- Country of Origin
- Italy
- Certifications
- cETLus, ETL Sanitation
- Plug Type
- 5-15 P
- Warranty
- 1 Year Parts Warranty, 1 Year Labor Warranty
Dimensions4
- Weight
- 3637.6 lb (1650.0 kg)
- Width
- 70.9" (180 cm)
- Depth
- 79.8" (203 cm)
- Height
- 42.3" (107 cm)
Shipping4
- Box length
- 80" (203 cm)
- Box width
- 87" (221 cm)
- Box height
- 81" (206 cm)
- Shipping weight
- 4400 lb (1995.8 kg)
Description
Valoriani Rotativo 120– Engineered to Outperform
Thanks to its long experience in the refractory field, Valoriani has created its ownRotative Oven, available in the combined wood/gas version, reducing the critical issues of the other products already on the market.
1. Authentic Refractory Cotto Floor
Unlike ovens that use concrete, Valoriani’s baking floor is made from high-qualityrefractory cotto, delivering superior heat retention, even cooking, and authentic Italian flavor in every pizza.
2. Precision-Tuned SPITFIRE Gas Burner
Purpose-built to meet the oven’s exact baking requirements, theSPITFIRE gas burnerensures powerful, efficient heating with consistent performance—perfect for busy kitchens and high-volume demands.
3. Exclusive R. H. S.® Heat Recycling System
TheRecycling Heating Systemredirects high-temperature air beneath the baking surface, enhancing energy efficiency while reducing fuel consumption—ideal for sustainable operations.
4. Premium Insulation Materials
Only the best-in-class insulation is used, minimizing heat loss and optimizing internal temperature stability for long shifts and peak-hour usage.
5. Effortless Digital Control Panel
Operators can easily managebaking temperature, floor rotation speed, cooking time,andRHS temperaturefrom an intuitive interface—ensuring perfect results, batch after batch.
6. Neapolitan-Ready Performance
Capable of reaching and maintaining high temperatures required for authentic Neapolitan-style pizza—without compromising speed or consistency.
These features allow a remarkable consumption saving and an easy achievement of temperature suitable also for Neapolitan pizza. Moreover, the easy and reliable control panel allows easy control of all the oven functions such as the baking temperature, the floor rotation speed, the baking time, and the temperature of the RHS System.
OTHER FEATURES
-
Choice of Pre-Cast Modular or pre-assembled pizza ovens – This particular model has been pre-fitted with Red-Iridium Mosaic and Red Brick Customization
-
Presents a spectacular cooking display, adding ambiance.
-
Low-maintenance cooking.
-
Cost-effective operation with a choice of wood-only, gas-only, or gas/wood combination.
-
Fast cooking times – a pizza will cook perfectly in 2-3 minutes – Perfect for Neapolitan-style Pizzas
-
Ability to cook an array of different foods – from pizzas to your complete menu.
-
Enhanced flavors – your customers will love the Versatility – ability to utilize different cooking methods; baking, braising, stewing, sautéing, grilling, smoking, roasting, searing in juices, maintaining moisture & flavor, and preventing food from drying.
-
Extremely durable and – built to last.
-
Made in and fully imported from Italy.
