Prince Castle · MHB100HM1
Prince Castle – Modular Pass-Through Holding Module – MHB100HM1
Priced on request
In stock
Volume-priced item. A specialist replies with exact pricing within one business day.
- Delivery
- Shipping options are confirmed before you pay. Shipping details
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET. Project pricing in one business day.
- Model
- MHB100HM1
- Brand
- Prince Castle
- Department
- Cooking Equipment
- Size, L × W × H
- 13.76 × 10.28 × 4.11
- Weight
- 10 lb
- Availability
- In stock
| Specifications | |
|---|---|
| Model | MHB100HM1 |
| Description | Pass-through Holding Module (includes one pan cover) |
| Region | North America |
| Capacity | |
| Pan Capacity | 1 pan (1/3 size, sold separately) |
| Electrical | |
| Voltage | 120V, 50/60 Hz |
| Wattage | 180W |
| Certifications | |
| Certifications | ETL/cETL (Intertek) |
| Warranty | |
| Warranty | 1-year parts and labour |

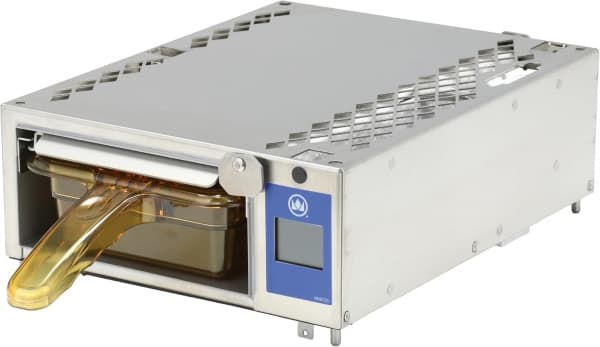

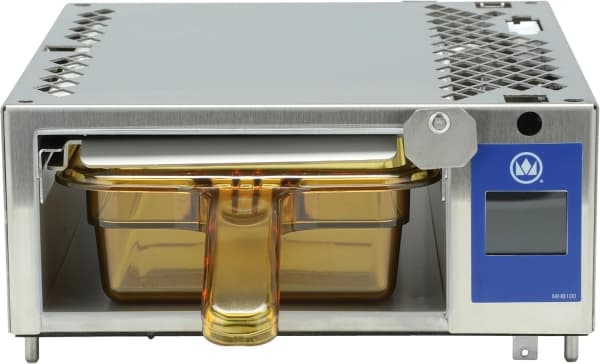

The Prince Castle MHB100HM1 is a pass-through holding module that stacks onto the MHB Main Base or Expansion Base. Each module holds one 1/3 size pan (sold separately) with independent temperature and hold-time control — allowing different food types to be held at their optimal conditions across modules.

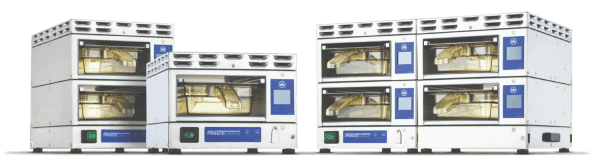

The pass-through design provides access from both sides of the unit, reducing reach distance and speeding up assembly during peak service. Modules stack vertically and can be seamlessly switched between pass-through and single-sided orientation to match evolving kitchen workflows.
Up to 8 total modules can run on a single circuit across the MHB system, making it one of the most power-efficient holding solutions available for operations with growing menus and limited electrical infrastructure.
Standard Features:
- Pass-through holding module — access from both sides
- Independent temperature and hold-time control per module
- Stacks onto MHB Main Base or Expansion Base
- Includes one pan cover
- Switchable between pass-through and single-sided orientation
- Up to 8 modules on a single circuit
- USB port for menu updates via PC application
Technical Specifications:
- Model: MHB100HM1
- Description: Pass-through Holding Module (includes one pan cover)
- Pan Capacity: 1 pan (1/3 size, sold separately)
- Voltage: 120V, 50/60 Hz
- Wattage: 180W
- Dimensions (W × H × D): 10.28" × 4.11" × 13.76" (26.1 × 10.4 × 35.0 cm)
- Shipping Weight: 10 lbs (4.5 kg)
- Region: North America
- Certifications: ETL/cETL (Intertek)
- Warranty: 1-year parts and labour
Spec sheet
No reviews yet. If this unit is in your kitchen, the next buyer would like to hear how it runs.
Questions about this product
What are the dimensions and weight of the Prince Castle MHB100HM1?
The Prince Castle MHB100HM1 measures 13.76 × 10.28 × 4.11 in (length × width × height), and weighs 10 lb.
What power supply does the Prince Castle MHB100HM1 need?
Voltage: 120V, 50/60 Hz; Wattage: 180W.
What is the capacity of the Prince Castle MHB100HM1?
Pan Capacity: 1 pan (1/3 size, sold separately).
What certifications does the Prince Castle MHB100HM1 have?
Certifications: ETL/cETL (Intertek).
Is the Prince Castle MHB100HM1 in stock, and can I buy it online?
It is in stock. It is ordered through a quote rather than online checkout. Large equipment, configured machines and anything that cannot be bought online are priced by a person on a quote, with freight included. Quotes come back within one business day.
How much does shipping cost for the Prince Castle MHB100HM1?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. There is no automatic free-shipping or flat-rate offer. Ranges, refrigeration and other heavy equipment ship by freight carrier. A liftgate, a delivery appointment or inside delivery needs to be arranged with Norpex before paying.
Can I return the Prince Castle MHB100HM1?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Prince Castle MHB100HM1?
The manufacturer lists: 1-year parts and labour. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Prince Castle MHB100HM1?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
