Omcan · 45293 · FR-CN-0320
Omcan – 46″ Ice Cream Display Chest Freezer with Flat Glass Top – 45293
- 1-yearmanufacturer warranty
- Voltage: 110V
- Phase: Single phase
- Current: 2.1 A
- Plug: NEMA 5-15P
- Refrigerant: R-290
- Certification: cETLus certified
- Certification: ETL Sanitation certified
Questions about this product
What are the dimensions and weight of the Omcan 45293?
The Omcan 45293 measures 23.6" (60 cm) wide, 45.7" (116 cm) deep and 30.5" (77 cm) high, and weighs 99 lb (44.9 kg).
What power supply does the Omcan 45293 need?
Electrical: 110V / 60Hz / 1Ph; Amps: 2.1A; Plug Type: 5-15 P.
What is the capacity of the Omcan 45293?
Freezer Capacity: 11 cu.ft.
What certifications does the Omcan 45293 have?
Certifications: cETLus, ETL Sanitation.
Is the Omcan 45293 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Omcan 45293?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Omcan 45293?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Omcan 45293?
The manufacturer lists: 1 Year Parts Warranty, 1 Year Labor Warranty. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Omcan 45293?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
Does it lock?
Yes, it has a built-in lock.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Save $153.309% below the maker's list price of $1,703.25
- Good dealAt or below the market price for this model
Questions before you buy?
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
4 payments of about $387.49Afterpay: pay in 4
Every 2 weeks · 0% interest
From about $134.82/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $50.37/mo · $11.62/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Price match
Price match
Ask for a price matchIf another Canadian store sells this same model new and in stock for less, delivered to your postal code, send it to us before you buy and we'll match their delivered price. Marketplaces, clearance and used items don't qualify.
A matched price is paid by Interac e-Transfer or bank deposit.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- 45293
- Brand
- Omcan
- Department
- Refrigeration & Ice
- Maker's model
- FR-CN-0320
- Voltage
- 110V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Plug
NEMA plug
The NEMA code names the shape of the plug and the outlet it fits (for example 5-15P is the standard 15 A, 120 V plug). The outlet at the counter has to match it, or an electrician fits one that does. - NEMA 5-15P
- Current
Current
How many amps the unit draws at full load. The circuit feeding it has to be rated above this figure, which an electrician checks before installation. - 2.1 A
- Refrigerant
Refrigerant
The gas inside the cooling circuit. R-290 (propane) and R-600a are the newer low-impact refrigerants most makers now use; a service technician works with whichever one the unit holds. - R-290
- Certifications
cETLus
An Intertek ETL listing to both Canadian and US safety standards; the small c and us name the two countries. Canadian electrical inspectors commonly accept it like CSA and cULus.ETL Sanitation
An Intertek listing to food equipment sanitation standards: the materials and design were judged cleanable and suitable for food contact.- Manufacturer warranty
- 1 year, parts and labour
- Country of origin
- China
About this item

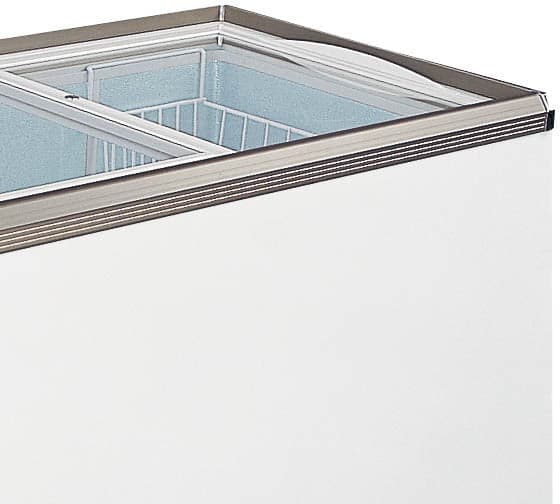

- An ice cream chest freezer with a flat glass top and sliding lids, so customers see frozen novelties from above while the case holds -18 to -10°C.
- With 11 cu.ft. inside, one basket supplied and room for four, it suits a convenience store, ice cream shop or snack bar selling packaged frozen treats. Casters let staff move it for cleaning.
- Check before ordering: It plugs into a 110V outlet (5-15 P) and draws 2.1 A. One basket is included; order more if you want the chest split into four sections. The packed box is 50" x 36" x 40" at 140 lb; check doorways on the way in.
- Introducing Omcan, a trusted leader in commercial kitchen equipment, recognized for delivering high-quality products that meet the demands of modern businesses.
See moreSee less
- The Omcan 46″ Ice Cream Display Chest Freezer with Flat Glass Top (45293) is specifically designed to enhance the merchandising and sales of frozen novelties and seasonal specialties.
- With a generous 11 cu.ft.
- of storage space, this freezer is an excellent choice for ice cream parlors, convenience stores, and supermarkets looking to display and store a large variety of frozen products.
- Constructed with a cold-roll steel sheet exterior and an embossed aluminum interior, this freezer is built for durability and long-lasting use.
Specifications
Specifications8
- Freezer Capacity
- 11 cu.ft
- Built‑in Lock
- Yes
- Number of Baskets
- 1
- Basket Dimensions
- 19.2" x 7.1" x 7.9"
- Temperature
- -18°C to -10°C
- Refrigerant
- R290
- Electrical
- 110V / 60Hz / 1Ph
- Amps
- 2.1A
Details4
- Country of Origin
- China
- Certifications
- cETLus, ETL Sanitation
- Plug Type
- 5-15 P
- Warranty
- 1 Year Parts Warranty, 1 Year Labor Warranty
Dimensions4
- Weight
- 99 lb (44.9 kg)
- Width
- 23.6" (60 cm)
- Depth
- 45.7" (116 cm)
- Height
- 30.5" (77 cm)
Shipping4
- Box length
- 50" (127 cm)
- Box width
- 36" (91 cm)
- Box height
- 40" (102 cm)
- Shipping weight
- 140 lb (63.5 kg)
Description
Introducing Omcan, a trusted leader in commercial kitchen equipment, recognized for delivering high-quality products that meet the demands of modern businesses. The Omcan 46″ Ice Cream Display Chest Freezer with Flat Glass Top (45293) is specifically designed to enhance the merchandising and sales of frozen novelties and seasonal specialties. With a generous 11 cu.ft. of storage space, this freezer is an excellent choice for ice cream parlors, convenience stores, and supermarkets looking to display and store a large variety of frozen products. Constructed with a cold-roll steel sheet exterior and an embossed aluminum interior, this freezer is built for durability and long-lasting use. The flat glass top provides a clear view of the products inside, making it easy for customers to browse and select their desired items. Designed with sliding doors and a built-in lock, this unit ensures the security of your products. The freezer comes equipped with casters for easy mobility and includes one basket, with the capacity to fit up to four baskets, offering flexible storage solutions. Key Features: Generous Storage Capacity: Offers 11 cu.ft. of storage space, ideal for holding a large variety of frozen products. Durable Construction: Built with a cold-roll steel sheet exterior and an embossed aluminum interior for long-lasting durability. Enhanced Product Visibility: The flat glass top allows customers to easily view and select products, boosting sales potential. Secure Design: Features sliding doors with a built-in lock, ensuring that your products remain secure. Flexible Storage: Includes 1 basket and can accommodate up to 4 baskets, providing versatile storage options. Easy Mobility: Equipped with casters for effortless repositioning within your store.
