Ice-O-Matic · CIM0636FW90

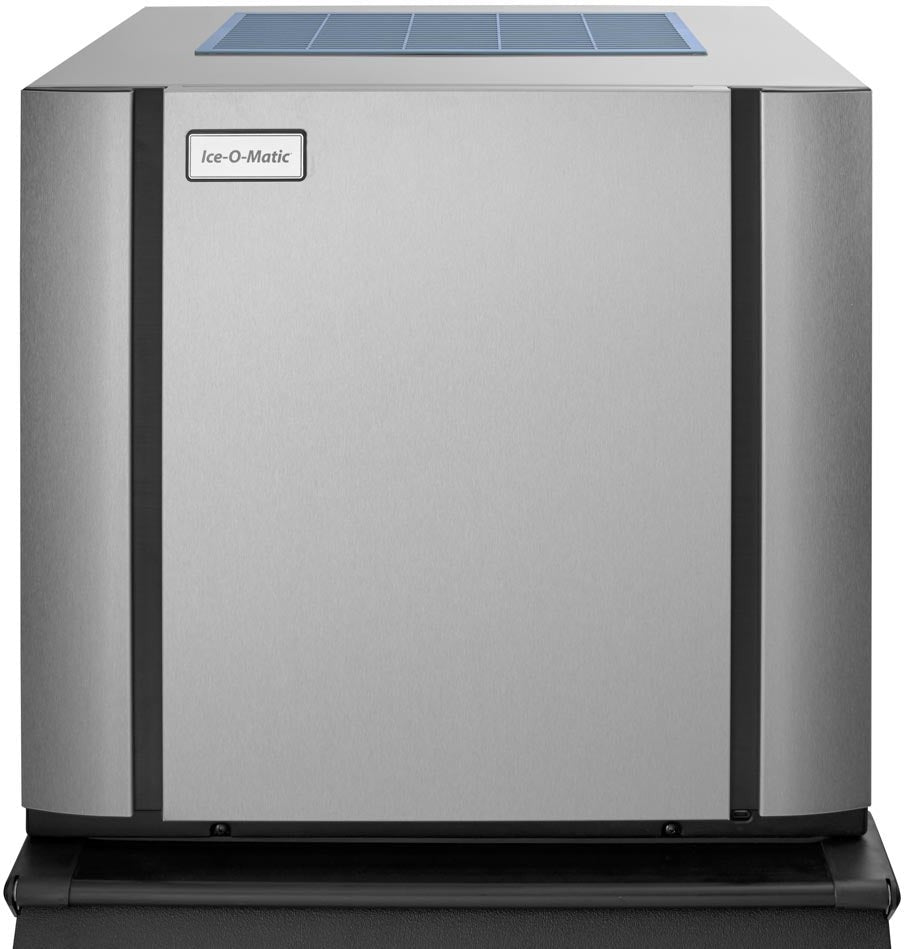

Ice-O-Matic – Elevation Series™ 30″ 620 lb Water Cooled Full Dice Cube Ice Machine – CIM0636FW90
- 3-yearmanufacturer warranty
- Voltage: 208-230V
- Phase: Single phase
- Refrigerant: R-290A
- Certification: cULus certified
Questions about this product
What are the dimensions and weight of the Ice-O-Matic CIM0636FW90?
The Ice-O-Matic CIM0636FW90 measures 24.25" (62 cm) wide, 30.25" (77 cm) deep and 21.25" (54 cm) high, and weighs 164 lb (74.4 kg).
What power supply does the Ice-O-Matic CIM0636FW90 need?
Voltage: 208-230/60/1.
What is the capacity of the Ice-O-Matic CIM0636FW90?
Production: 600 - 700 pounds.
What certifications does the Ice-O-Matic CIM0636FW90 have?
Certifications: cULus.
Is the Ice-O-Matic CIM0636FW90 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Ice-O-Matic CIM0636FW90?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Ice-O-Matic CIM0636FW90?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Ice-O-Matic CIM0636FW90?
The manufacturer lists: 3 Years Parts & Labour, 5 Years Evaporator & Compressor Parts. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Ice-O-Matic CIM0636FW90?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
Questions before you buy?
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
From about $847.66/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $316.71/mo · $73.09/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Price match
Price match
Ask for a price matchIf another Canadian store sells this same model new and in stock for less, delivered to your postal code, send it to us before you buy and we'll match their delivered price. Marketplaces, clearance and used items don't qualify.
A matched price is paid by Interac e-Transfer or bank deposit.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- CIM0636FW90
- Brand
- Ice-O-Matic
- Department
- Refrigeration & Ice
- Voltage
- 208-230V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Refrigerant
Refrigerant
The gas inside the cooling circuit. R-290 (propane) and R-600a are the newer low-impact refrigerants most makers now use; a service technician works with whichever one the unit holds. - R-290A
- Certifications
cULus
A UL certification to both Canadian and US safety standards; the small c and us name the two countries.- Manufacturer warranty
- 3 years, parts and labour
About this item
- The Ice-O-Matic Elevation Series™ 30″ Water-Cooled Full Dice Cube Ice Machine is engineered for high-capacity ice production, ideal for establishments such as restaurants, bars, and hotels that require a consistent supply of ice.
- This robust unit can produce approximately 620 lbs of full-size ice cubes in a 24-hour period under optimal conditions (70°F air / 50°F water) and maintains a production capacity of 535 lbs in warmer environments (90°F air / 70°F water).
- Equipped with a water-cooled, self-contained condenser, this ice machine offers efficient cooling and is well-suited for businesses with specific water requirements.
- The full-size ice cubes are designed to provide excellent chilling for beverages while minimizing dilution.
See moreSee less
- With the addition of PURE ICE® built-in antimicrobial protection, this machine helps ensure the ice remains clean and free from harmful bacteria.
- Key Features: Ice Production: Produces up to 620 lbs of full-size ice cubes per day under optimal conditions.
- Water-Cooled Condenser: Efficient cooling system designed for consistent ice production.
- Full-Size Cubes: Ideal for effective chilling in various beverage applications.
Specifications
Certifications1
- Certifications
- cULus
Warranty & Origin1
- Warranty
- 3 Years Parts & Labour, 5 Years Evaporator & Compressor Parts
Technical Details7
- Ice Type
- Full Cube
- Filter System
- IFQ1-XL
- Voltage
- 208-230/60/1
- Condensing Type
- Water
- Refrigerant
- R290A
- Production
- 600 - 700 pounds
- BABA Compliant
- Yes
Dimensions4
- Length
- 30.25" (77 cm)
- Width
- 24.25" (62 cm)
- Height
- 21.25" (54 cm)
- Weight
- 164 lb (74.4 kg)
Description
The Ice-O-Matic Elevation Series™ 30″ Water-Cooled Full Dice Cube Ice Machine is engineered for high-capacity ice production, ideal for establishments such as restaurants, bars, and hotels that require a consistent supply of ice. This robust unit can produce approximately 620 lbs of full-size ice cubes in a 24-hour period under optimal conditions (70°F air / 50°F water) and maintains a production capacity of 535 lbs in warmer environments (90°F air / 70°F water). Equipped with a water-cooled, self-contained condenser, this ice machine offers efficient cooling and is well-suited for businesses with specific water requirements. The full-size ice cubes are designed to provide excellent chilling for beverages while minimizing dilution. With the addition of PURE ICE® built-in antimicrobial protection, this machine helps ensure the ice remains clean and free from harmful bacteria. Key Features: Ice Production: Produces up to 620 lbs of full-size ice cubes per day under optimal conditions. Water-Cooled Condenser: Efficient cooling system designed for consistent ice production. Full-Size Cubes: Ideal for effective chilling in various beverage applications. PURE ICE® Antimicrobial Protection: Inhibits bacterial growth for cleaner, safer ice. LED Status Display: Easy monitoring of machine status and maintenance alerts. One-Touch Controls: Simplifies the sanitizing and descaling processes for user convenience. Dishwasher-Safe Components: Food zone parts can be easily removed and cleaned in a dishwasher. Certifications: Compliant with cULus, NSF, and CE standards for safety and energy efficiency.
