Gemm · BCT10US220

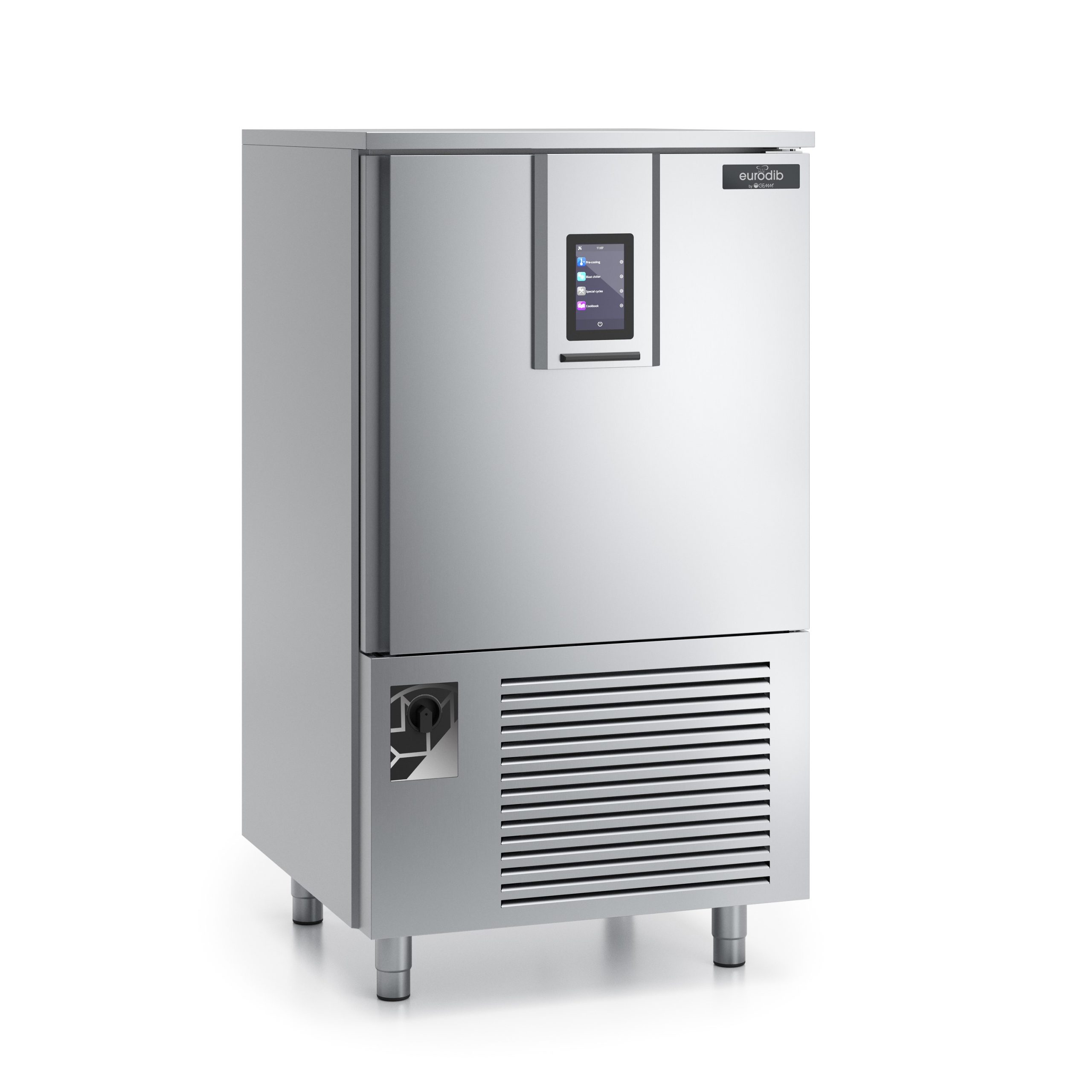

Gemm – Blast Chiller | Freezer
- 1-yearmanufacturer warranty
Made inItaly
- Current: 13.5 A
- Power: 3,105 W
- Plug: NEMA 6-20P
- Construction: Stainless steel
- Certification: cETLus certified
- Certification: ETL Sanitation certified
Questions about this product
What are the dimensions and weight of the Gemm BCT10US220?
The Gemm BCT10US220 measures 34" (86 cm) wide, 34" (86 cm) deep and 61.5" (156 cm) high, and weighs 370 lb (167.8 kg).
What power supply does the Gemm BCT10US220 need?
Watts: 3105W HP 1.5HP; Amperage: 13.5A; Nema: 6-20P; Volts: 208-230V; Power Requirements: Single Phase; Watts: 3105W.
What is the capacity of the Gemm BCT10US220?
Capacity: 197°F (90°C) to 37°F (3°C) = 75 lbs (34 kg) Freezing; Pan Types: 18 X 26 in (46 X 66 cm).
What certifications does the Gemm BCT10US220 have?
HACCP: Yes; cETLus Listed (Intertek): Yes; ETL Sanitation Listed (Intertek): Yes.
Is the Gemm BCT10US220 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Gemm BCT10US220?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Gemm BCT10US220?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Gemm BCT10US220?
The manufacturer lists: 1 year parts and labor, 3 years compressor. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Gemm BCT10US220?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Save $16,525.0044% below the maker's list price of $37,000.00
- Good dealAt or below the market price for this model
Questions before you buy?
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
- LEASEAbout $665.44/mo · $153.56/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- BCT10US220
- Brand
- Gemm
- Department
- Refrigeration & Ice
- Plug
NEMA plug
The NEMA code names the shape of the plug and the outlet it fits (for example 5-15P is the standard 15 A, 120 V plug). The outlet at the counter has to match it, or an electrician fits one that does. - NEMA 6-20P
- Current
Current
How many amps the unit draws at full load. The circuit feeding it has to be rated above this figure, which an electrician checks before installation. - 13.5 A
- Power
- 3,105 W
- Construction
- Stainless steel
- Certifications
cETLus
An Intertek ETL listing to both Canadian and US safety standards; the small c and us name the two countries. Canadian electrical inspectors commonly accept it like CSA and cULus.ETL Sanitation
An Intertek listing to food equipment sanitation standards: the materials and design were judged cleanable and suitable for food contact.- Manufacturer warranty
- 1 year, parts and labour
- Country of origin
- Italy
About this item
- Replaced by BCT10USN – BCT Blast Chillers: The same BCB Blast Chillers you know with extended capabilities The US series blast chillers by Gemm are ideal for chefs, pastry and ice cream makers who depend on reliability and simplicity.

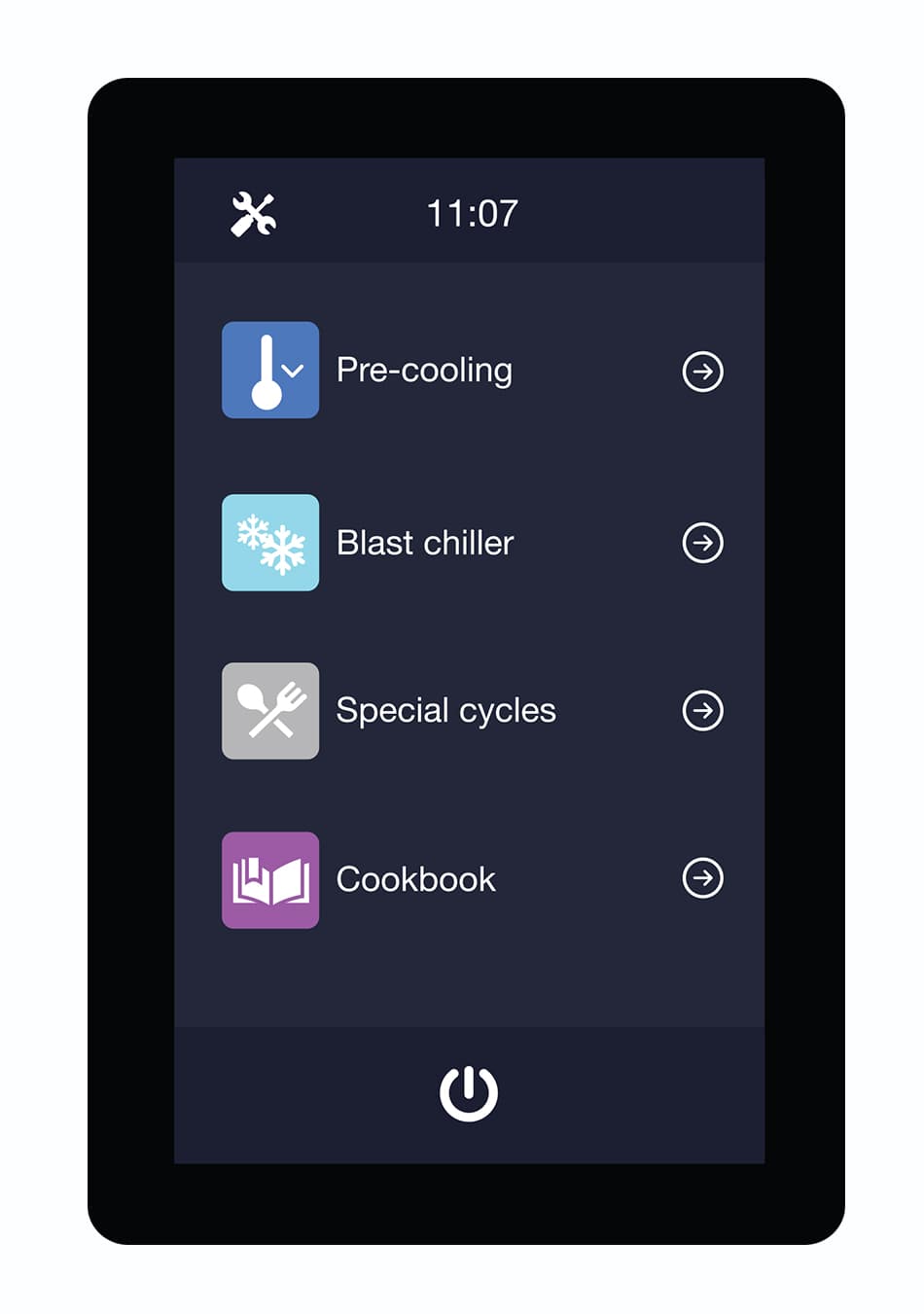

- They are fitted with an electronic control panel, intuitive and user-friendly, which allows chilling cycles to be set extremely rapidly.
- Chilling or Freezing cycles can be set by time or via probe inserted into the core of the product.
- Refrigerated power: 1785W, 6005 BTU/hr Refrigerant gas: R449A Tray capacity: 18?
Specifications
Certifications3
- HACCP
- Yes
- cETLus Listed (Intertek)
- Yes
- ETL Sanitation Listed (Intertek)
- Yes
Specifications10
- Refrigerant gas
- R449A
- Chamber dimensions
- 20.3" L x 29.75" W x 32.75" H Total Volume
- Warranty
- 1 year parts and labor, 3 years compressor
- Country of Origin
- Italy
- Plugs
- 6-20P (120V)
- Power Requirements
- Single Phase
- Pan Types
- 18 X 26 in (46 X 66 cm)
- Control
- Touchscreen
- Watts
- 3105W
- Volts
- 208
Capacity1
- Capacity
- 197°F (90°C) to 37°F (3°C) = 75 lbs (34 kg) Freezing
Electrical4
- Watts
- 3105W HP 1.5HP
- Amperage
- 13.5A
- Nema
- 6-20P
- Volts
- 208-230V
Construction1
- Material
- Stainless Steel
Dimensions4
- Width
- 34" (86 cm)
- Depth
- 34" (86 cm)
- Height
- 61.5" (156 cm)
- Weight
- 370 lb (167.8 kg)
Shipping1
- Shipping weight
- 406 lb (184.2 kg)
Description
Replaced by BCT10USN – BCT Blast Chillers: The same BCB Blast Chillers you know with extended capabilities The US series blast chillers by Gemm are ideal for chefs, pastry and ice cream makers who depend on reliability and simplicity. They are fitted with an electronic control panel, intuitive and user-friendly, which allows chilling cycles to be set extremely rapidly. Chilling or Freezing cycles can be set by time or via probe inserted into the core of the product.
Specifications
Refrigerated power: 1785W, 6005 BTU/hr Refrigerant gas: R449A Tray capacity: 18? x 26? Chamber dimensions: 20.3″ L x 29.75″ W x 32.75″ H Total Volume Capacity: 11 Cu Ft (311 L) Chilling Capacity 197°F (90°C) to 37°F (3°C) = 75 lbs (34 kg) Freezing Capacity 197°F (90°C) to 0°F (-18°C) = 48.5 lbs (22 kg) Watts 3105W HP 1.5HP Amperage 13.5A Capacity 10 trays (not included) Material Stainless Steel Nema 6-20P Volts 208-230V Origin : Italy Warranty: 1 year parts and labor, 3 years compressor Height: 61.5″ Length: 34″ Width: 34″ Weight: 370 lbs Package Length: 37″ Package Height: 68.5″ Package Weight: 406 lbs UPC: 628242148252Refrigerated power: 1785W, 6005 BTU/hr Refrigerant gas: R449A Tray capacity: 18? x 26? Chamber dimensions: 20.3″ L x 29.75″ W x 32.75″ H Total Volume Capacity: 11 Cu Ft (311 L) Chilling Capacity 197°F (90°C) to 37°F (3°C) = 75 lbs (34 kg) Freezing Capacity 197°F (90°C) to 0°F (-18°C) = 48.5 lbs (22 kg) Watts 3105W HP 1.5HP Amperage 13.5A Capacity 10 trays (not included) Material Stainless Steel Nema 6-20P Volts 208-230V Origin : Italy Warranty: 1 year parts and labor, 3 years compressor Height: 61.5″ Length: 34″ Width: 34″ Weight: 370 lbs Package Length: 37″ Package Height: 68.5″ Package Weight: 406 lbs UPC: 628242148252
