American Range · AR-36G-4B
American Range – 60″ Stainless Steel Restaurant Range 36″ Griddles and 4 Burners With 26.5″ 2 Standard Oven – AR-36G-4B
- 3-yearmanufacturer warranty
Made inUSA
- Certification: ETL certified
- Certification: ETL Sanitation certified
Questions about this product
How much does the American Range AR-36G-4B weigh?
The American Range AR-36G-4B weighs 749.99 lb (340.2 kg).
What certifications does the American Range AR-36G-4B have?
Certifications: ETL, ETL Sanitation.
Is the American Range AR-36G-4B in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the American Range AR-36G-4B?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the American Range AR-36G-4B?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the American Range AR-36G-4B?
The manufacturer lists: 3 Years Parts & Labour. Warranty terms are set by each manufacturer and vary by product line.
Can I finance the American Range AR-36G-4B?
Financing is available on approved credit. Apply from the financing page and a Norpex rep sets it up within one business day.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
Questions before you buy?
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
From about $1,022.09/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $381.89/mo · $88.13/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- AR-36G-4B
- Brand
- American Range
- Department
- Cooking Equipment
- Certifications
ETL
An Intertek ETL listing to the applicable safety standards. Equipment installed in Canada normally carries the Canadian version, cETLus or cETL, rather than the US-only mark.ETL Sanitation
An Intertek listing to food equipment sanitation standards: the materials and design were judged cleanable and suitable for food contact.- Manufacturer warranty
- 3 years, parts and labour
- Country of origin
- United States
About this item
- American Range, restaurant range size 60″ x 32-1/2″ x 56″ Stainless steel front, sides, backriser, shelf and 6″ adjustable legs.
- Removable full width drip pan.
- open burners with lift-o burner heads or 20,000 BTU/hr.
- 12″ section griddle or a combo burner griddle.
See moreSee less
- Heavy-duty cast iron grates, 12″ x 12″.
- Burner knobs are cool to the touch, high temperature material.
- standard oven, 30,000 BTU/hr.
- for convection or innovection with porcelain interior and inside door panel, oven interior measures 26- 1/2″W x 22-1/2″D x 13-1/2″H.
Specifications
Warranty & Origin2
- Warranty
- 3 Years Parts & Labour
- Country of Origin
- USA
Certifications1
- Certifications
- ETL, ETL Sanitation
Dimensions1
- Weight
- 749.99 lb (340.2 kg)
Description
American Range, restaurant range size 60″ x 32-1/2″ x 56″ Stainless steel front, sides, backriser, shelf and 6″ adjustable legs. Removable full width drip pan. Choose 32,000 BTU/hr. open burners with lift-o burner heads or 20,000 BTU/hr. 12″ section griddle or a combo burner griddle. Heavy-duty cast iron grates, 12″ x 12″. Burner knobs are cool to the touch, high temperature material. One oven: 35,000 BTU/hr. standard oven, 30,000 BTU/hr. for convection or innovection with porcelain interior and inside door panel, oven interior measures 26- 1/2″W x 22-1/2″D x 13-1/2″H. Oven thermostat adjusts from 250°F to 500°F. All ovens supplied with two racks. Oven door with a spring assisted, counterweight mechanism requiring no adjustment. Rear gas connection and pressure regulator.
Key Features:-
STANDARD FEATURES
• Commercial gas range 60″ wide and 32 1/2″ depth.
• Cooking height 36″.
• Stainless steel sides, front and 6″ deep front landing ledge.
• Adjustable steel legs (casters optional).
• Choose: 6″ high stainless-steel stub back, high riser or
high riser with shelf at no charge.
• Two year limited warranty, parts and labor.
• Base options: Standard, convection, innovection or storage base
GRIDDLES
• 1″ thick steel griddle plate.
• 3″ wide grease collector.
• One burner every 12″, rated at 20,000 BTU/hr.
• Stainless steel pilot for each burner for automatic ignition.
• Manual control valve for each burner. (Thermostatic control optional).
OPEN BURNERS

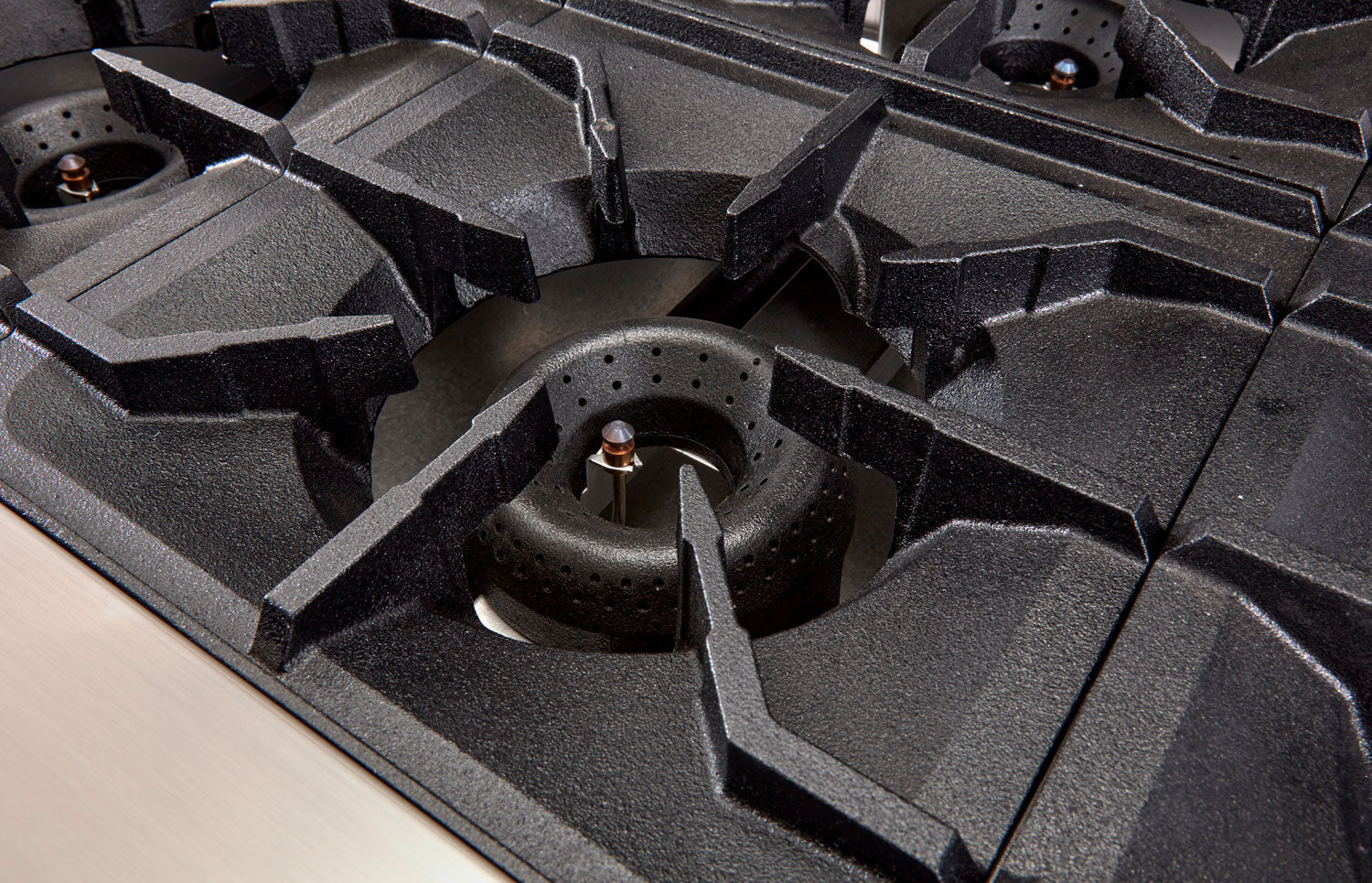

• 12″ x 12″ cast-iron top grates.
• 32,000 BTU/hr lift-off open burners.
• Removable full width drip pan under burner.
STANDARD OVEN
• Steel oven burner rated at 35,000 BTU/hr.
• Oven dimensions: 26 1/2″W x 22 1/2″D x 13 1/2″H.
• Thermostat ranging from 250°F to 500°F (121°C to 260°C).
• Oven Door: Spring assisted, counterweight door.
• Two chrome plated oven racks (additional racks optional).
• Two fixed rack positions.
• Porcelain enamel oven interior for easy cleaning.
• 100% safety gas shut off
