American Range · AR-48G-DSB

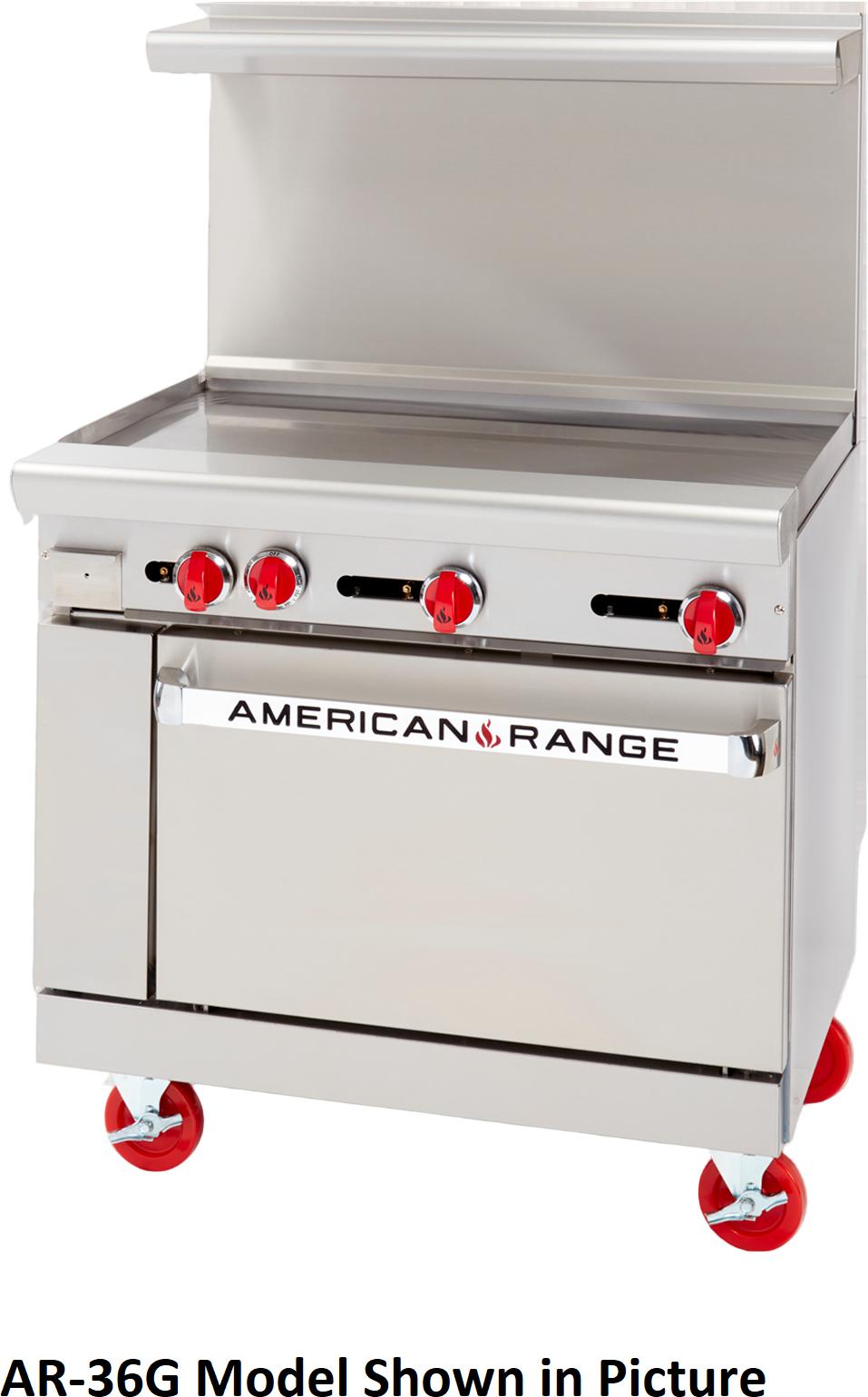

American Range – 48″ Stainless Steel Restaurant Range 48″ Griddles, and 20″ 2 Space Storage Bases – AR-48G-DSB
- 2-yearmanufacturer warranty
Made inUSA
- Certification: ETL certified
- Certification: ETL Sanitation certified
In stock· leaves the warehouse in 1–3 business days · delivery 7–10 business days after it ships
Pay your way
- LEASE
About $497.41/mo · $114.79/wk
36-month lease estimate, on approved credit. Apply
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
Product info
American Range, restaurant range size 48″ x 32-1/2″ x 56″ Stainless steel front, sides, backriser, shelf and 6″ adjustable legs. Removable full width drip pan. Choose 32,000 BTU/hr. open burners with…
Specs
- Model
- AR-48G-DSB
- Brand
- American Range
- Department
- Cooking Equipment
- Availability
- In stock
Warranty & Origin
- Warranty
- 2 Years Parts & Labour
- Country of Origin
- USA
Certifications
- Certifications
- ETL, ETL Sanitation
Dimensions
- Weight
- 520 lb (235.9 kg)
Description

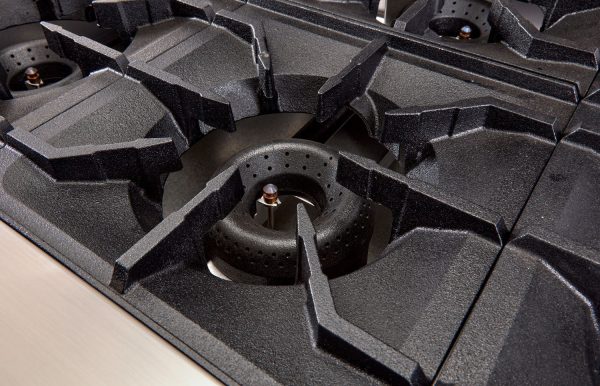

American Range, restaurant range size 48″ x 32-1/2″ x 56″ Stainless steel front, sides, backriser, shelf and 6″ adjustable legs. Removable full width drip pan. Choose 32,000 BTU/hr. open burners with lift-off burner heads or 20,000 BTU/12″ section griddle or a combo burner griddle. Heavy-duty cast iron grates, 12″ x 12″. Burner knobs are cool to the touch, high temperature material. Two ovens: 27,000 BTU/hr. standard oven, with porcelain interior and inside door panel, oven interior measures 20″W x 26-1/2″D x 13-1/2″H. Oven thermostat adjusts from 250°F to 500°F. Ovens supplied with two racks. Oven door with a spring assisted, counterweight mechanism requiring no adjustment. Rear gas connection and pressure regulator.
Key Features:-
STANDARD FEATURES
• Commercial gas range 48″ wide and 32 1/2″ depth.
• Cooking height 36″.
• Stainless steel sides, front and 6″ deep front landing ledge.
• Adjustable steel legs (casters optional).
• Choose: 6″ high stainless-steel stub back, high riser or
high riser with shelf at no charge.
• Two year limited warranty, parts and labor.
• Base options are standard oven or storage base.
GRIDDLES
• 1″ thick steel griddle plate.
• 3″ wide grease collector.
• One burner every 12″, rated at 20,000 BTU/hr.
• Stainless steel pilot for each burner for automatic ignition.
• Manual control valve for each burner. (Thermostatic control optional).
Videos1
Reviews
No reviews yet. If this unit is in your kitchen, the next buyer would like to hear how it runs.
Questions about this product
How much does the American Range AR-48G-DSB weigh?
The American Range AR-48G-DSB weighs 520 lb (235.9 kg).
What certifications does the American Range AR-48G-DSB have?
Certifications: ETL, ETL Sanitation.
Is the American Range AR-48G-DSB in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the American Range AR-48G-DSB?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the American Range AR-48G-DSB?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the American Range AR-48G-DSB?
The manufacturer lists: 2 Years Parts & Labour. Warranty terms are set by each manufacturer and vary by product line.
Can I finance the American Range AR-48G-DSB?
Financing is available on approved credit. Apply from the financing page and a Norpex rep sets it up within one business day.
