American Range · AR-4B-24RG-126L-SBR
American Range – 48″ Stainless Steel Restaurant Range 24″ Raised Griddles, 4 Burners With 26.5″ 1 Standard Oven and 1 Storage Base – AR-4B-24RG-126L-SBR
- 2-yearmanufacturer warranty
Made inUSA
- Certification: ETL certified
- Certification: ETL Sanitation certified
In stock· leaves the warehouse in 1–3 business days · delivery 7–10 business days after it ships
Pay your way
- LEASE
About $540.47/mo · $124.72/wk
36-month lease estimate, on approved credit. Apply
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
Product info
American Range, restaurant range size 48″ x 32-1/2″ x 56″ Stainless steel front, sides, backriser, shelf and 6″ adjustable legs. Removable full width drip pan. Choose a combo 32,000 BTU/hr. open burne…
Specs
- Model
- AR-4B-24RG-126L-SBR
- Brand
- American Range
- Department
- Cooking Equipment
- Availability
- In stock
Warranty & Origin
- Warranty
- 2 Years Parts & Labour
- Country of Origin
- USA
Certifications
- Certifications
- ETL, ETL Sanitation
Dimensions
- Weight
- 590 lb (267.6 kg)
Description
American Range, restaurant range size 48″ x 32-1/2″ x 56″ Stainless steel front, sides, backriser, shelf and 6″ adjustable legs. Removable full width drip pan. Choose a combo 32,000 BTU/hr. open burners with no-clog lift-off burner heads along with 20,000 BTU/hr. per 12″ section raised griddle with 3/4″ plate. Heavy-duty cast iron grates, 12″ x 12″. Burner knobs are cool to the touch, high temperature material. Two ovens: 35,000 BTU/hr. standard oven, 30,000 BTU/hr. for convection or innovection with porcelain interior and inside door panel, oven interior measures 26-1/2″W x 22-1/2″D x 13-1/2″H. Oven thermostat adjusts from 250°F to 500°F. All ovens supplied with two racks. Oven door with a spring assisted, counterweight mechanism requiring no adjustment. Rear gas connection and pressure regulator.
Key Features:-
STANDARD FEATURES
• Commercial gas range 48″ wide and 32 1/2″ depth.
• Cooking height 36″ and 44″.
• Stainless steel sides, front and 6″ deep front landing ledge.
• Adjustable steel legs (casters optional).
• Choose: 6″ high stainless-steel stub back, high riser or
high riser with shelf at no charge.
• Two year limited warranty, parts and labor.
• Base options: Standard, convection, innovection or storage base
RAISED GRIDDLES
• 3/4″ thick steel griddle plate.
• 3″ wide grease collector.
• One burner every 12″, rated at 20,000 BTU/hr.
• Stainless steel pilot for each burner for automatic ignition.
• Manual control valve for each burner

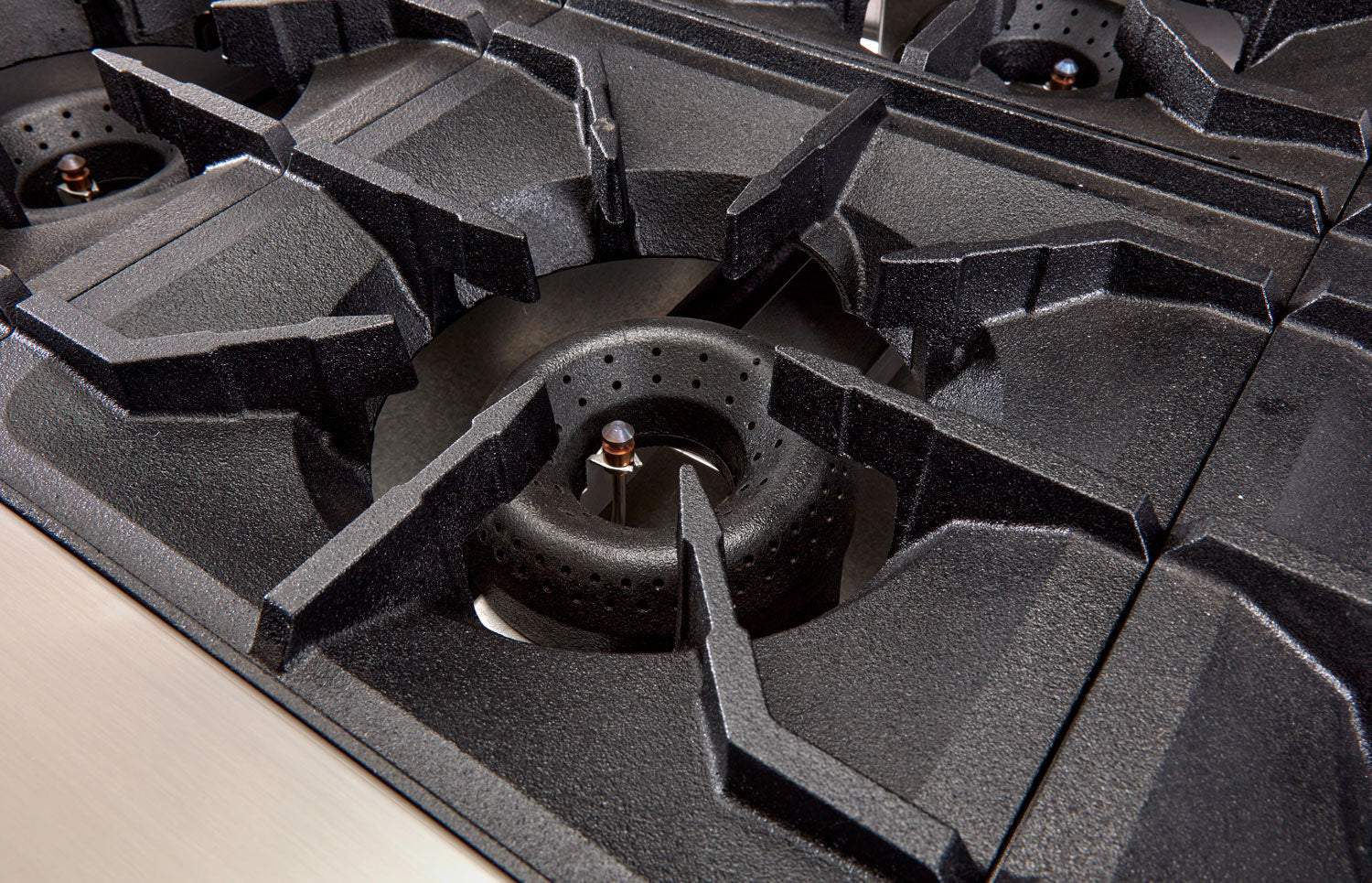

OPEN BURNERS
• 12″ x 12″ cast-iron top grates.
• 32,000 BTU/hr lift-off open burners.
• Removable full width drip pan under burner
STANDARD OVEN
• Steel oven burner rated at 35,000 BTU/hr.
• Oven dimensions: 26 1/2″W x 22 1/2″D x 13 1/2″H.
• Thermostat ranging from 250°F to 500°F (121°C to 260°C).
• Oven Door: Spring assisted, counterweight door.
• Two chrome plated oven racks (additional racks optional).
• Two fixed rack positions.
• Porcelain enamel oven interior for easy cleaning.
• 100% safety gas shut off
