Omcan · 48269 · RS-CN-1050-B

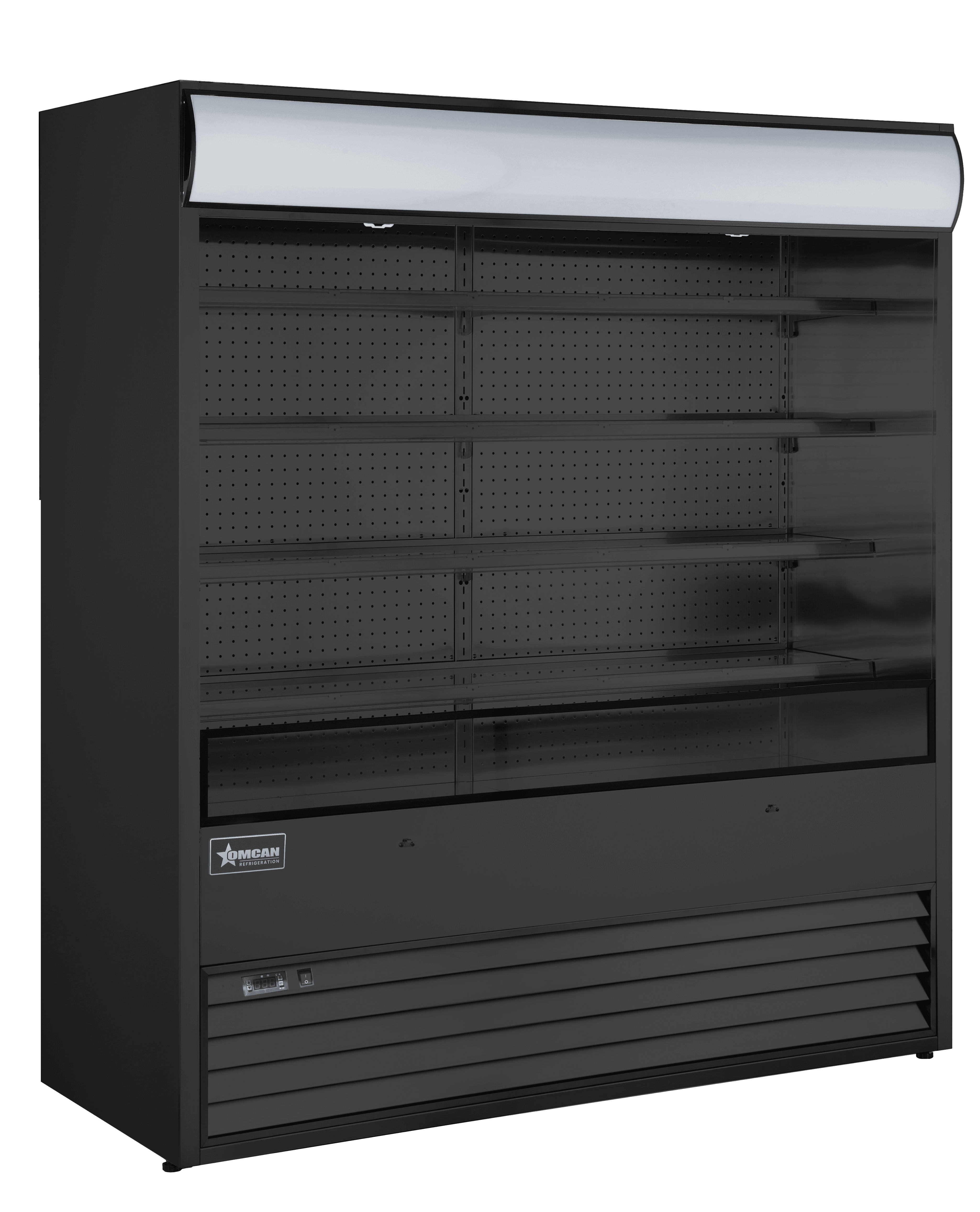

Omcan 72″ Four (4) Shelf Grab-and-Go Open Refrigerated Floor Self-Serve Display Case, 37 cu.ft. (1048 L), Black
- 2-yearmanufacturer warranty
- Voltage: 220V
- Phase: Single phase
- Current: 11.5 A
- Power: 2,400 W
- Plug: NEMA 6-20P
- Refrigerant: R-290
- Certification: cETLus certified
- Certification: ETL Sanitation certified
Questions about this product
What are the dimensions and weight of the Omcan 48269?
The Omcan 48269 measures 72" (183 cm) wide, 30.1" (76 cm) deep and 81.5" (207 cm) high, and weighs 565.5 lb (256.5 kg).
What power supply does the Omcan 48269 need?
Power: 2400 W; Lamp Power: 10 W; Electrical: 220V / 60Hz / 1Ph; Plug Type: 6-20 P.
What is the capacity of the Omcan 48269?
Capacity (L / CU. FT.): 1050 L / 37.1 cu. ft.; Shelf Load Capacity: 50 kg / 110 lb.
What certifications does the Omcan 48269 have?
Certifications: cETLus, ETL Sanitation.
Is the Omcan 48269 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Omcan 48269?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Omcan 48269?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Omcan 48269?
The manufacturer lists: 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Omcan 48269?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
Does it close at night?
Yes, with a pull-down night curtain.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Save $4,666.6131% below the maker's list price of $14,706.60
Questions before you buy?
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
From about $873.32/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $326.30/mo · $75.30/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Price match
Price match
Ask for a price matchIf another Canadian store sells this same model new and in stock for less, delivered to your postal code, send it to us before you buy and we'll match their delivered price. Marketplaces, clearance and used items don't qualify.
A matched price is paid by Interac e-Transfer or bank deposit.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- 48269
- Brand
- Omcan
- Department
- Refrigeration & Ice
- Maker's model
- RS-CN-1050-B
- Voltage
- 220V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Plug
NEMA plug
The NEMA code names the shape of the plug and the outlet it fits (for example 5-15P is the standard 15 A, 120 V plug). The outlet at the counter has to match it, or an electrician fits one that does. - NEMA 6-20P
- Current
Current
How many amps the unit draws at full load. The circuit feeding it has to be rated above this figure, which an electrician checks before installation. - 11.5 A
- Power
- 2,400 W
- Refrigerant
Refrigerant
The gas inside the cooling circuit. R-290 (propane) and R-600a are the newer low-impact refrigerants most makers now use; a service technician works with whichever one the unit holds. - R-290
- Certifications
cETLus
An Intertek ETL listing to both Canadian and US safety standards; the small c and us name the two countries. Canadian electrical inspectors commonly accept it like CSA and cULus.ETL Sanitation
An Intertek listing to food equipment sanitation standards: the materials and design were judged cleanable and suitable for food contact.- Manufacturer warranty
- 2 years, parts and labour
- Country of origin
- China
About this item
- A 72″ black self-serve grab-and-go refrigerated floor display with 37.1 cu. ft. / 1050 L of space and 5 shelves, for convenience stores, cafeterias and cafés selling packaged food and drinks.
- Five shelves of 54” x 12.2” carry 50 kg / 110 lb each in a 69” x 21” x 51” interior held at 2 - 10°C / 35.6 - 50°F by ventilated R290 cooling, LED lights run under each shelf, and a pull-down night curtain closes it after hours. Digital control, automatic defrost and four casters round it out; it runs at 65.2 dB.
- Check before ordering: It plugs into a 6-20 P outlet on 220V / 60Hz / 1Ph and draws 11.5 A (2400 W). It is 72" wide, 30.1" deep and 81.5" high at 565.5 lb; measure the route in. Keep it away from entrances and air vents that would disturb the open front.
- Feature Specification Capacity (L / CU.
See moreSee less
- Certifications: cETLus, ETL Sanitation.
- Warranty: 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty.
Specifications
Specifications16
- Capacity (L / CU. FT.)
- 1050 L / 37.1 cu. ft.
- Power
- 2400 W
- Lamp Power
- 10 W
- Current
- 11.5 A
- Electrical
- 220V / 60Hz / 1Ph
- Exterior Material
- PP (Lightbox), PMMA (Railing), 430 Stainless Steel
- Temperature Range
- 2 - 10°C / 35.6 - 50°F
- Refrigerant
- R290
- Type of Climate
- 3
- Number of Shelves
- 5
- Number of Casters
- 4
- Noise During Operation
- 65.2 dB
- Shelf Dimensions
- 54” x 12.2” / 1372.4 x 310 mm
- Shelf Load Capacity
- 50 kg / 110 lb
- Interior Dimensions
- 69” x 21” x 51” /1747 x 543 x 1300 mm
- Foaming Agent
- C5H10
Details4
- Country of Origin
- China
- Certifications
- cETLus, ETL Sanitation
- Plug Type
- 6-20 P
- Warranty
- 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty
Dimensions4
- Width
- 72" (183 cm)
- Depth
- 30.1" (76 cm)
- Height
- 81.5" (207 cm)
- Weight
- 565.5 lb (256.5 kg)
Shipping4
- Box length
- 76" (193 cm)
- Box width
- 33" (84 cm)
- Box height
- 88" (224 cm)
- Shipping weight
- 653 lb (296.2 kg)
Description
Keep food fresh and visible with this Grab-and-Go refrigerated display. This open refrigerated display is perfect for showcasing products while providing easy access for customers. It features bright LED lighting under each shelf and adjustable shelves to accommodate a variety of merchandise. Designed for energy efficiency and space savings, it includes a pull-down night curtain and a digital temperature control with display to keep products fresh. The unit also offers smooth mobility with four casters, a ventilated cooling system for even airflow, and automatic defrost for hassle-free maintenance.
- Feature Specification Capacity (L / CU. FT.) 1050 L / 37.1 cu. ft. Power 2400 W Lamp Power 10 W Current 11.5 A Electrical 220V / 60Hz / 1Ph Exterior Material PP (Lightbox), PMMA (Railing), 430 Stainless Steel Temperature Range 2 - 10°C / 35.6 - 50°F Refrigerant R290 Type of Climate 3 Number of Shelves 5 Number of Casters 4 Noise During Operation 65.2 dB Shelf Dimensions 54” x 12.2” / 1372.4 x 310 mm Shelf Load Capacity 50 kg / 110 lb Interior Dimensions 69” x 21” x 51” /1747 x 543 x 1300 mm </t
- Weight: 653 lb
- Certifications: cETLus, ETL Sanitation
- Warranty: 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty
