Omcan · 47105 · RS-CN-0470

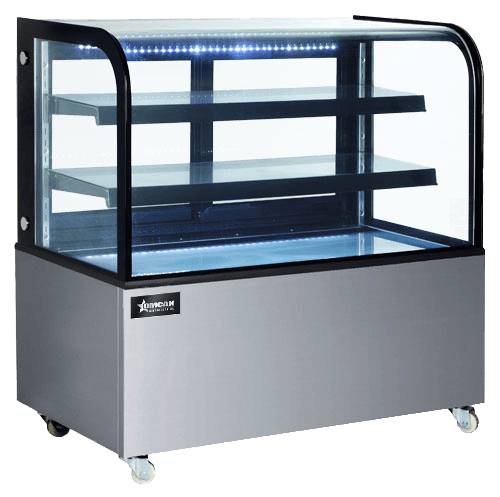

Omcan 60" Two (2) Shelf Curved Edge Refrigerated Floor Display Case, 18 cu.ft. (500 L)
- 2-yearmanufacturer warranty
- Voltage: 115V
- Phase: Single phase
- Current: 4 A
- Power: 420 W
- Plug: NEMA 5-15P
- Refrigerant: R-290
- Certification: cETLus certified
- Certification: ETL Sanitation certified
Questions about this product
What are the dimensions and weight of the Omcan 47105?
The Omcan 47105 measures 59.6" (151 cm) wide, 26.6" (68 cm) deep and 48" (122 cm) high, and weighs 401.2 lb (182 kg).
What power supply does the Omcan 47105 need?
Power: 420 W; Lamp Power: 21 W; Electrical: 115V / 60Hz / 1Ph; Plug Type: 5-15 P.
What is the capacity of the Omcan 47105?
Capacity: 500 L / 17.7 cu. ft.
What certifications does the Omcan 47105 have?
Certifications: cETLus, ETL Sanitation.
Is the Omcan 47105 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Omcan 47105?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Omcan 47105?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Omcan 47105?
The manufacturer lists: 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Omcan 47105?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Save $2,944.5730% below the maker's list price of $9,684.56
Questions before you buy?
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
From about $586.27/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $219.05/mo · $50.55/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Price match
Price match
Ask for a price matchIf another Canadian store sells this same model new and in stock for less, delivered to your postal code, send it to us before you buy and we'll match their delivered price. Marketplaces, clearance and used items don't qualify.
A matched price is paid by Interac e-Transfer or bank deposit.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- 47105
- Brand
- Omcan
- Department
- Refrigeration & Ice
- Maker's model
- RS-CN-0470
- Voltage
- 115V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Plug
NEMA plug
The NEMA code names the shape of the plug and the outlet it fits (for example 5-15P is the standard 15 A, 120 V plug). The outlet at the counter has to match it, or an electrician fits one that does. - NEMA 5-15P
- Current
Current
How many amps the unit draws at full load. The circuit feeding it has to be rated above this figure, which an electrician checks before installation. - 4 A
- Power
- 420 W
- Refrigerant
Refrigerant
The gas inside the cooling circuit. R-290 (propane) and R-600a are the newer low-impact refrigerants most makers now use; a service technician works with whichever one the unit holds. - R-290
- Certifications
cETLus
An Intertek ETL listing to both Canadian and US safety standards; the small c and us name the two countries. Canadian electrical inspectors commonly accept it like CSA and cULus.ETL Sanitation
An Intertek listing to food equipment sanitation standards: the materials and design were judged cleanable and suitable for food contact.- Manufacturer warranty
- 2 years, parts and labour
- Country of origin
- China
About this item
- Feature Specification Capacity 500 L / 17.7 cu.
- Certifications: cETLus, ETL Sanitation.
- Warranty: 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty.
Specifications
Specifications9
- Capacity
- 500 L / 17.7 cu. ft
- Power
- 420 W
- Lamp Power
- 21 W
- Current
- 4 A
- Electrical
- 115V / 60Hz / 1Ph
- Refrigerant
- R290
- Temperature Range
- 0°C - 12°C / 32°F - 53.6°F
- Shelf Dimensions
- 55” x 12”/1403 x 311 mm 55” x 15”/ 1401 x 371 mm
- Interior Dimensions
- 57.5” x 22.8” x 25.2”/1460 x 580 x 641 mm
Details4
- Country of Origin
- China
- Certifications
- cETLus, ETL Sanitation
- Plug Type
- 5-15 P
- Warranty
- 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty
Dimensions4
- Width
- 59.6" (151 cm)
- Depth
- 26.6" (68 cm)
- Height
- 48" (122 cm)
- Weight
- 401.2 lb (182 kg)
Shipping4
- Box length
- 63" (160 cm)
- Box width
- 29" (74 cm)
- Box height
- 50" (127 cm)
- Shipping weight
- 518 lb (235 kg)
Description
Elevate your shop and keep your treats fresh, visible, and irresistible. This sleek design includes bright LED lighting, adjustable shelves, and clear glass for full product visibility from all angles. The energy-efficient cooling system uses an eco-friendly refrigerant to keep your items fresh while promoting sustainability. Equipped with digital controls, smooth mobility, and easy maintenance, this display case combines style and function perfectly for any dessert-focused space. Features include LED illumination under each shelf, a digital temperature controller and display, ventilated cooling, adjustable chrome-plated shelves, triple layer glass on all sides, four castors with two brakes, automatic defrost, and double glass construction.
- Feature Specification Capacity 500 L / 17.7 cu. ft Power 420 W Lamp Power 21 W Current 4 A Electrical 115V / 60Hz / 1Ph Refrigerant R290 Temperature Range 0°C - 12°C / 32°F - 53.6°F Shelf Dimensions 55” x 12”/1403 x 311 mm 55” x 15”/ 1401 x 371 mm Interior Dimensions 57.5” x 22.8” x 25.2”/1460 x 580 x 641 mm Net Weight 401.2 lb / 182 kg Net Dimensions (WDH) 59.6” x 26.6” x 48”/ 1515 x 675 x 1220 mm NOTE: This equipment is intended for use in an indoor environment where ambient temperature and humidity do not exceed 26°C / 80°F and 55% relative humidity.
- Certifications: cETLus, ETL Sanitation
- Warranty: 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty
