Omcan · 50096 · FR-CN-1219-BS-HC
Omcan 47″ Two (2) Door Worktop Freezer with Backsplash, 11 cu.ft. (320 Liter), Stainless Steel
- 2-yearmanufacturer warranty
- Voltage: 115V
- Phase: Single phase
- Current: 4.5 A
- Power: 300 W
- Plug: NEMA 5-15P
- Doors: 2 doors
- Refrigerant: R-290
- Certification: cETLus certified
- Certification: ETL Sanitation certified
Questions about this product
What are the dimensions and weight of the Omcan 50096?
The Omcan 50096 measures 47.2" (120 cm) wide, 29.5" (75 cm) deep and 38.8" (99 cm) high, and weighs 214 lb (97.1 kg).
What power supply does the Omcan 50096 need?
Electrical: 115V / 60Hz / 1Ph; Power: 300 W; Amperage: 4.5 A; Plug Type: 5-15 P.
What is the capacity of the Omcan 50096?
Shelf Loading Capacity: 88 lb.
What certifications does the Omcan 50096 have?
Certifications: cETLus, ETL Sanitation.
Is the Omcan 50096 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Omcan 50096?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Omcan 50096?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Omcan 50096?
The manufacturer lists: 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Omcan 50096?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
Will the doors stay shut during busy service?
Yes; the doors are self-closing, helping keep the cabinet sealed when not actively in use.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Save $687.1018% below the maker's list price of $3,677.09
- Free shippingDrop-off delivery, Canada-wide
Questions before you buy?
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
From about $260.08/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $97.17/mo · $22.42/wk
- Free shipping
- Free drop-off delivery across Canada: to your door for a parcel, to a business with a loading dock for a pallet. A liftgate, a home delivery or a remote address costs only the difference, shown at checkout.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Price match
Price match
Ask for a price matchIf another Canadian store sells this same model new and in stock for less, delivered to your postal code, send it to us before you buy and we'll match their delivered price. Marketplaces, clearance and used items don't qualify.
A matched price is paid by Interac e-Transfer or bank deposit.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- 50096
- Brand
- Omcan
- Department
- Refrigeration & Ice
- Maker's model
- FR-CN-1219-BS-HC
- Voltage
- 115V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Plug
NEMA plug
The NEMA code names the shape of the plug and the outlet it fits (for example 5-15P is the standard 15 A, 120 V plug). The outlet at the counter has to match it, or an electrician fits one that does. - NEMA 5-15P
- Current
Current
How many amps the unit draws at full load. The circuit feeding it has to be rated above this figure, which an electrician checks before installation. - 4.5 A
- Power
- 300 W
- Doors
- 2 doors
- Refrigerant
Refrigerant
The gas inside the cooling circuit. R-290 (propane) and R-600a are the newer low-impact refrigerants most makers now use; a service technician works with whichever one the unit holds. - R-290
- Certifications
cETLus
An Intertek ETL listing to both Canadian and US safety standards; the small c and us name the two countries. Canadian electrical inspectors commonly accept it like CSA and cULus.ETL Sanitation
An Intertek listing to food equipment sanitation standards: the materials and design were judged cleanable and suitable for food contact.- Manufacturer warranty
- 2 years, parts and labour
- Country of origin
- China
About this item
- Counter-height worktop freezer that gives a dedicated frozen storage area with two self-closing doors and a 11 cu. ft. interior, suited to operations needing organized, frozen staging under a prep surface.
- This two-door, 11 cu. ft. worktop freezer fits kitchens that need a compact frozen storage footprint while keeping product accessible at counter height. The two-door layout lets operators separate categories or prep batches inside a single cabinet. With its single interior cabinet volume, plan usage for small, managed frozen inventories rather than high-turn, large-volume storage.
- Check before ordering: Confirm the electrical circuit: 115V / 60Hz / 1Ph and 4.5 A to ensure the outlet and breaker match the unit. Verify the self-closing door swing and space at the installation site so both doors can open fully and clear any obstacles. Allow for room for ventilated cooling airflow as required by the model’s ventilated system and confirm the unit’s weight of 214 lb for floor loading. Plan for shipping crate dimensions and handling: shipping weight is 275 lb so check access and threshold clearances for the boxed unit.
- ft. / 320 L Interior Dimensions (WDH) <td colspan="1.
See moreSee less
- Certifications: cETLus, ETL Sanitation.
- Warranty: 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty.
Specifications
Specifications16
- Temperature Range
- -22°C ~ -18°C / -8°F ~ -0°F
- Electrical
- 115V / 60Hz / 1Ph
- Power
- 300 W
- Amperage
- 4.5 A
- Refrigerant
- R290
- Isolation Material
- Cyclopentane
- Cooling System
- Ventilated
- Defrosting
- Automatic
- Type of Controller
- Digital display
- Self-Closing Door
- Yes
- Number of Doors
- 2
- Quantity of Shelves
- 2
- Shelf Material
- Plastic Coated
- Shelf Loading Capacity
- 88 lb
- Net Volume
- 11 cu. ft. / 320 L
- Interior Dimensions (WDH)
- 42.6" x 19.8" x 23.5" / 1083 x 504 x 597 mm
Details4
- Country of Origin
- China
- Certifications
- cETLus, ETL Sanitation
- Plug Type
- 5-15 P
- Warranty
- 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty
Dimensions4
- Width
- 47.2" (120 cm)
- Depth
- 29.5" (75 cm)
- Height
- 38.8" (99 cm)
- Weight
- 214 lb (97.1 kg)
Shipping4
- Box length
- 50" (127 cm)
- Box width
- 33" (84 cm)
- Box height
- 38" (97 cm)
- Shipping weight
- 275 lb (124.7 kg)
Description
Upgrade your commercial kitchen or food service establishment with the Omcan 47-inch Two Door Worktop Freezer with Backsplash. Designed to meet your freezing needs while maximizing space efficiency, this freezer combines advanced features with a sleek and durable construction.
Efficient Cooling Performance : With a temperature range of -22°C to -18°C (-7.6°F to -0.4°F), this freezer maintains optimal freezing conditions for your perishable goods. The powerful 300 W motor ensures rapid cooling, while the ventilated cooling system guarantees consistent and uniform temperatures throughout the cabinet.
Convenience and Versatility : The self-closing door ensures that your freezer remains tightly sealed, preserving the cold air inside and reducing energy waste. The automatic defrosting feature saves you time and effort, eliminating the need for manual defrosting. The digital controller allows you to easily adjust and monitor the temperature settings.
Durable Construction : Crafted with high-quality materials, the Omcan Worktop freezer is built to withstand the demands of a busy commercial kitchen. The Cyclopentane isolation material enhances insulation efficiency, while the sturdy plastic coated shelves can accommodate a maximum loading capacity of 20 kg per shelf. The inclusion of casters provides mobility, allowing you to effortlessly move the freezer when needed.
Ample Storage Capacity : With a generous net volume of 11 cu.ft. (320 L), this freezer offers ample space for storing a wide range of frozen goods. The interior storage provides enough room to organize and access your items efficiently, while the compact exterior dimensions allow for seamless integration into your kitchen layout.
Reliable and User-Friendly : The 47-inch Worktop Freezer is designed for effortless operation and reliable performance. Its electrical speci
- Feature Specification Temperature Range -22°C ~ -18°C / -8°F ~ -0°F Electrical 115V / 60Hz / 1Ph Power 300 W Amperage 4.5 A Refrigerant R290 Isolation Material Cyclopentane Cooling System Ventilated Defrosting Automatic Type of Controller Digital display Self-Closing Door Yes Number of Doors 2 Quantity of Shelves 2 Shelf Material Plastic Coated Shelf Loading Capacity 88 lb Net Volume 11 cu. ft. / 320 L Interior Dimensions (WDH) <td colspan="1
- Weight: 275 lb
- Certifications: cETLus, ETL Sanitation
- Warranty: 2 Year Parts Warranty, 2 Year Labor Warranty, 5 Year Compressor Warranty
Manuals and documents3
Reviews
No reviews yet. If this unit is in your kitchen, the next buyer would like to hear how it runs.
Complete the setup
Parts that fit it and the items a kitchen usually adds with it.
- $2,989.99
- $143.88
Total for the ticked items
$3,133.87
Upgrade options
The next sizes up in this line, and what the difference costs.

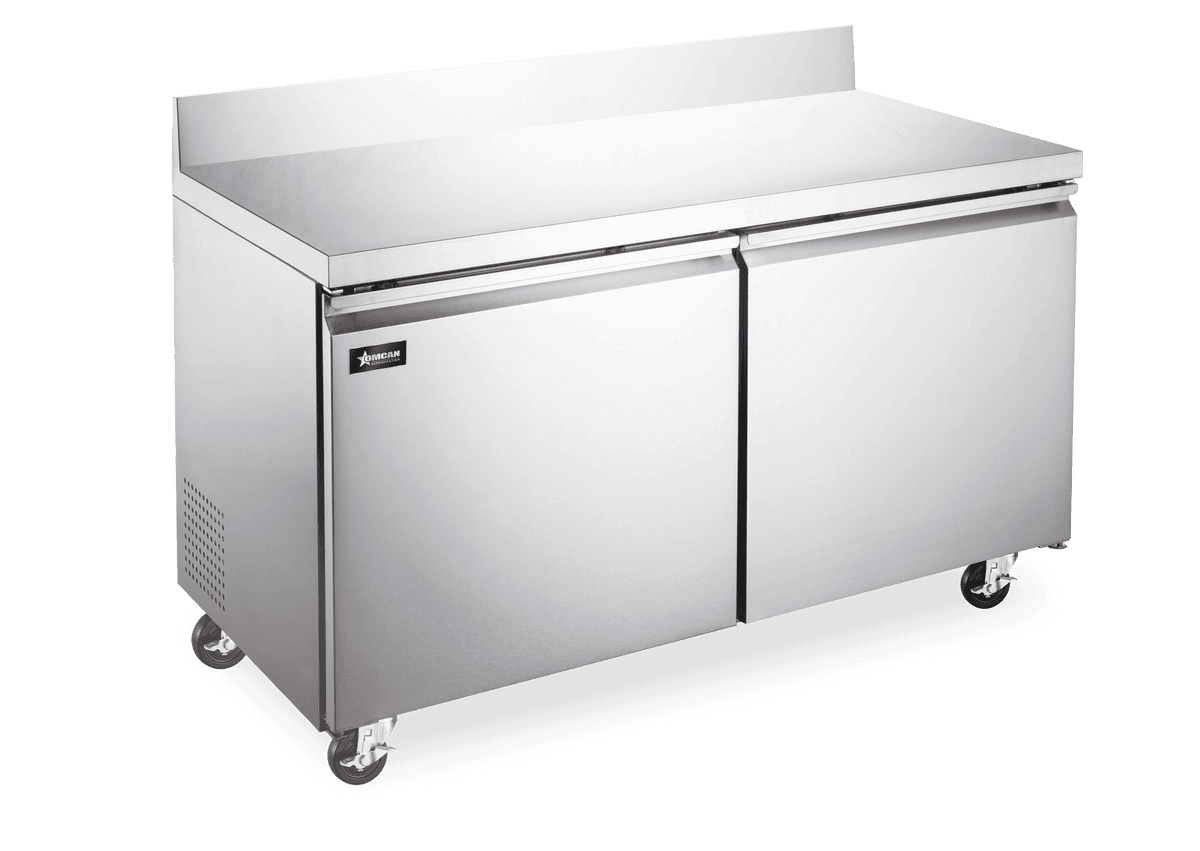

- Omcan 60″ Two (2) Door Worktop Freezer With Backsplash, 15 cu.ft. (425 Liter), Stainless Steel
