Veetsan · 504294

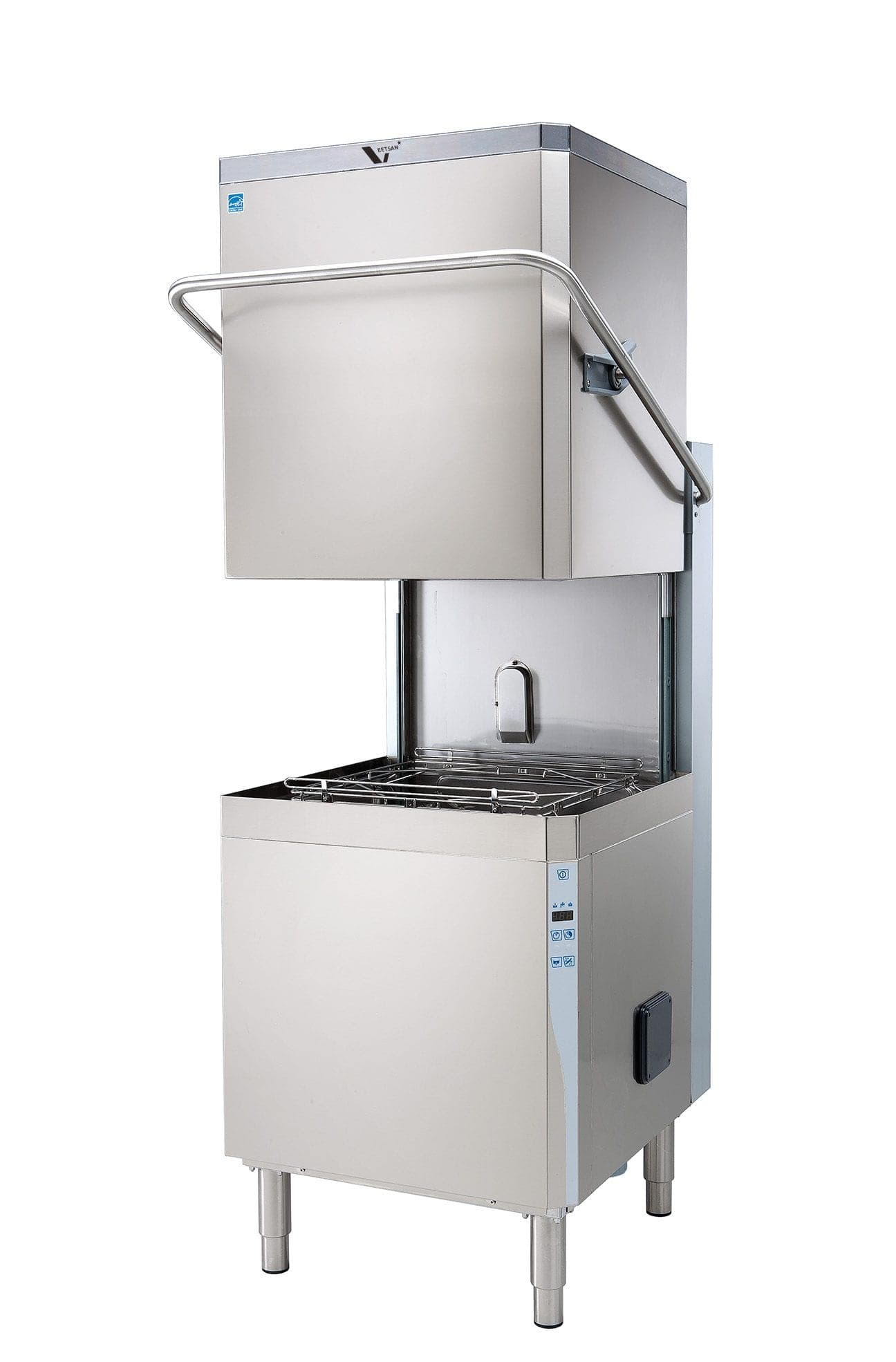

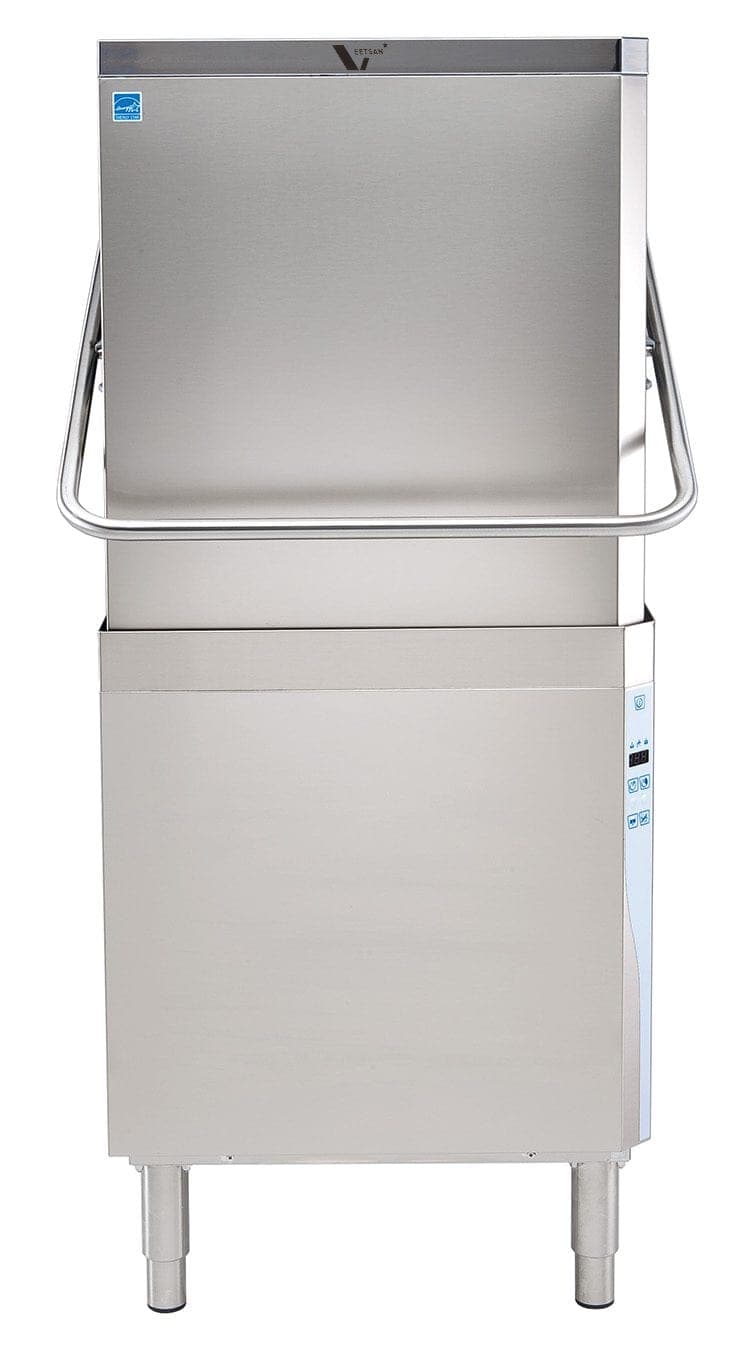

Veetsan – VDH63/1 Hoodtype Dishwasher (Single Phase) – 504294
Priced on request
In stock
Volume-priced item. A specialist replies with exact pricing within one business day.
- Delivery
- Shipping options are confirmed before you pay. Shipping details
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET. Project pricing in one business day.
- Model
- 504294
- Brand
- Veetsan
- Department
- Sinks, Work Tables & Dish Room
- Weight
- 317 lb
- Availability
- In stock
| Electrical | |
|---|---|
| Supply voltage | 208 V/1 ph/60 Hz 25 7/16 " |
| Electric power | 9.9 kW at 50°F (10°C) |
| Specifications | |
| Booster heating elements | 9 kW at 50°F (10°C) |
| Tank heating elements | 3 kW |
| Wash pump size | 1.1 hp (0.8 kW) |
| Booster Capacity | 3.17 gal (12 L) |
| Tank Capacity | 6.34 gal (24 L) |
| Water | |
| Water supply temperature | 50-122°F (10-50°C) |
| Inlet Water supply pressure | 7 - 102 psi (0.5 - 7 bar) |
| Peak Rate of Drain Flow | 0 gal/min |
| Water consumption per cycle | 0.53 gal (2 L) |
| Drain line size | 0.8’’ (20.5 mm) pumped drain |
| Incoming water line size | G 3/4” |
| Performance | |
| Racks per hour | 63* |
| Dishes per hour | 1134* |
| Wash temperature (MIN) | 167°F (75°C) |
| Rinse temperature (MIN) | 187°F (86°C) |
| Duration cycle - NSF | 57/150 sec. |
| Noise level | <63 dBA |
Characteristics and Advantages:
- 63 racks per hour
- 0.5gal (2L) of water per rack
- Hot water sanitation
- Included atmospheric booster to raise incoming cold water to a constant temperature of min 187°F (86°C) and pressure throughout the rinsing cycle. No external booster is needed.
- Energy Star 2.0 certified
- Full stainless steel AISI304 construction with double skin insulated hood

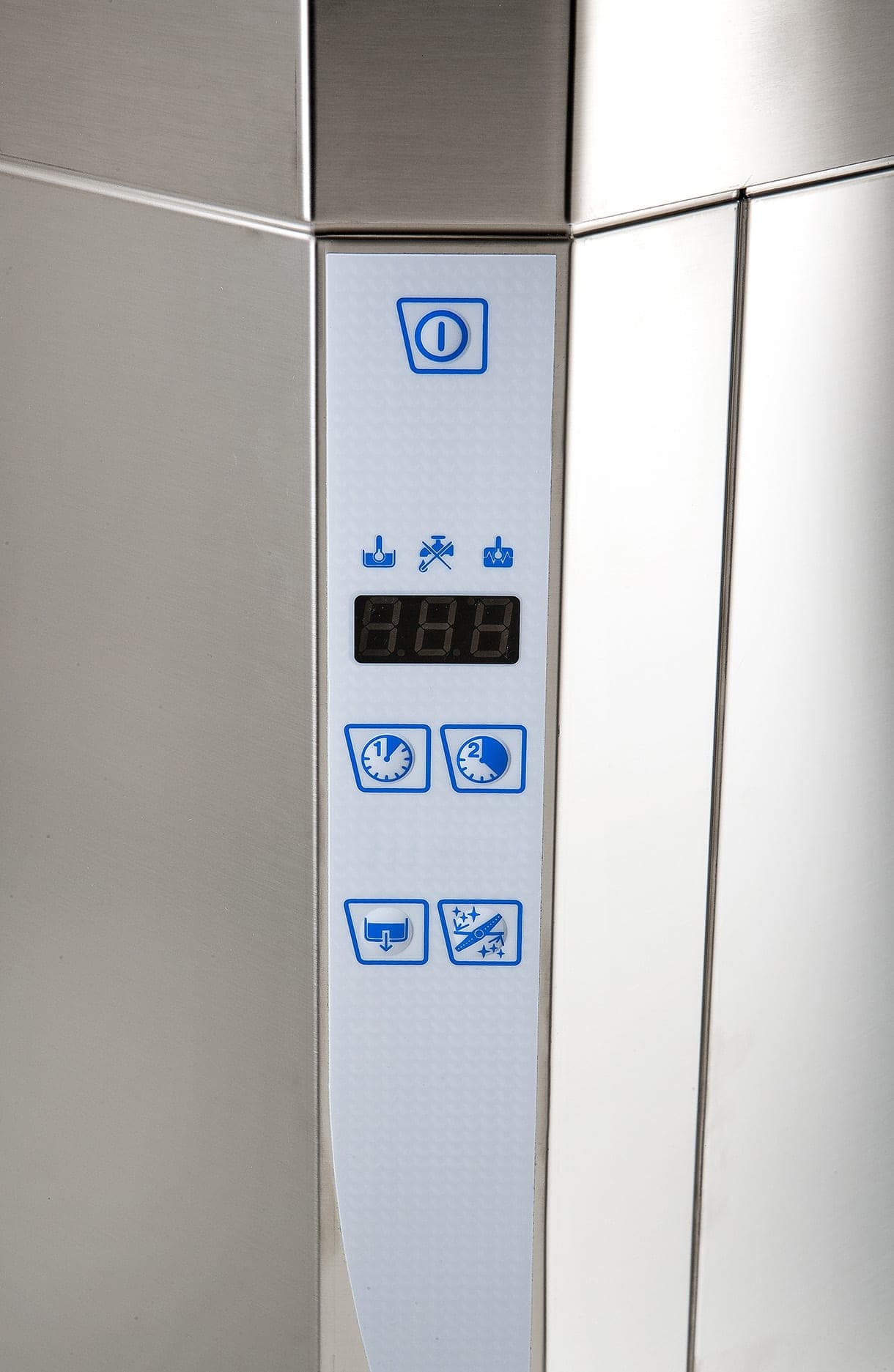

- Electronic control with temperature display, self-diagnostics for serviceability
- Deep drawn stainless steel tank with round corners for easy to clean
- Inclined wash arms and ceiling to avoid washed water drops containing detergent on clean wares after the rinsing phase
- Included detergent and rinse aid pumps for automatic initial and continuous cycle loading ensure perfect results

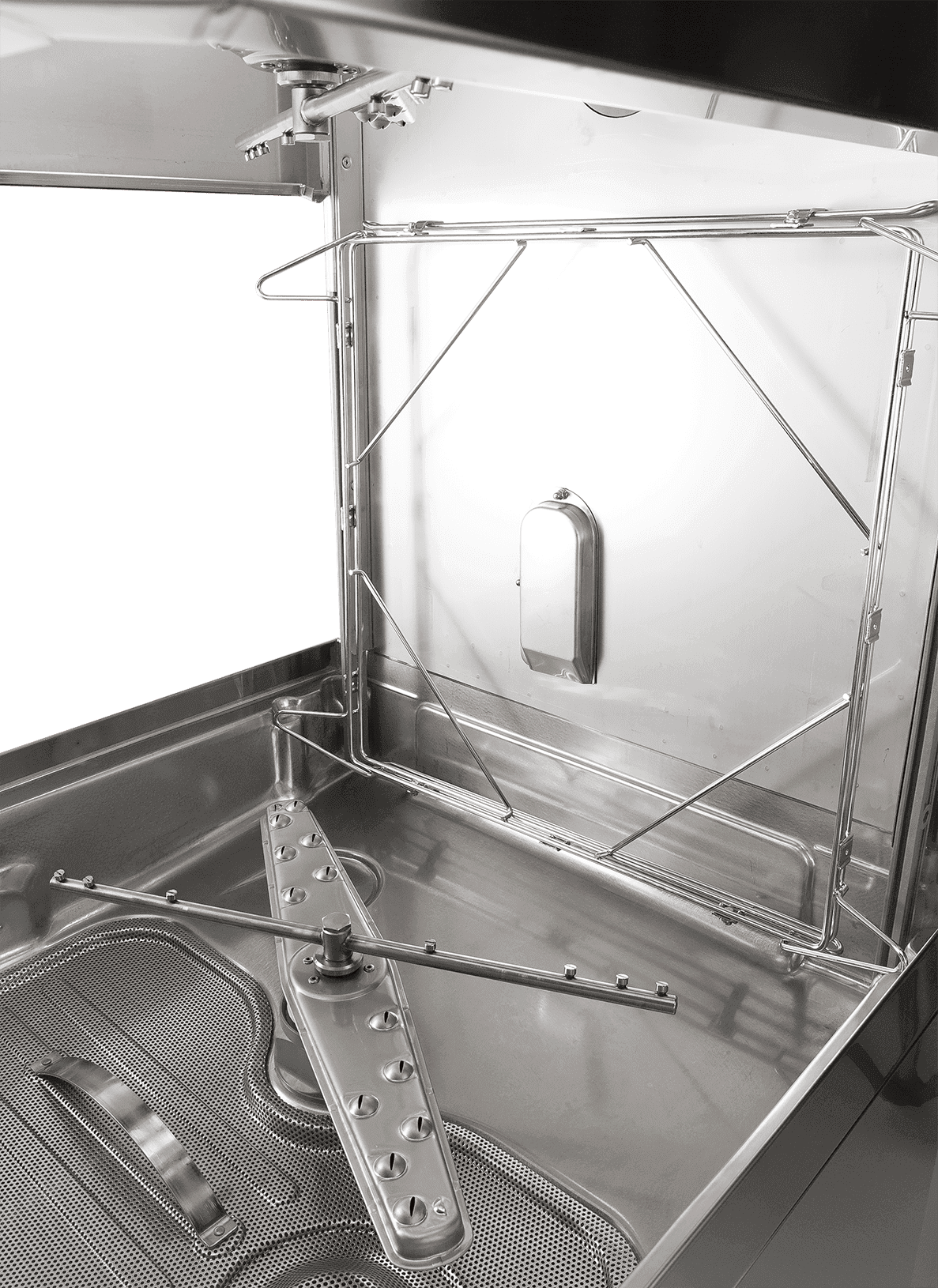

- Revolving interchangeble stainless steel upper and lower wash/ rinse arms
- Stainless steel tank filter easy removable for cleaning
- Automatic fill of wash tank
- Automatic self-cleaning cycle
- Vertical self-draining wash pump
- 17-5⁄16” door opening
- Single phase electrical connection
No reviews yet. If this unit is in your kitchen, the next buyer would like to hear how it runs.
Questions about this product
How much does the Veetsan 504294 weigh?
The Veetsan 504294 weighs 317 lb.
What power supply does the Veetsan 504294 need?
Supply voltage: 208 V/1 ph/60 Hz 25 7/16 "; Electric power: 9.9 kW at 50°F (10°C).
What is the capacity of the Veetsan 504294?
Booster Capacity: 3.17 gal (12 L); Tank Capacity: 6.34 gal (24 L); Racks per hour: 63*; Dishes per hour: 1134*.
What certifications does the Veetsan 504294 have?
Duration cycle - NSF: 57/150 sec.
Is the Veetsan 504294 in stock, and can I buy it online?
It is in stock. It is ordered through a quote rather than online checkout. Large equipment, configured machines and anything that cannot be bought online are priced by a person on a quote, with freight included. Quotes come back within one business day.
How much does shipping cost for the Veetsan 504294?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. There is no automatic free-shipping or flat-rate offer. Ranges, refrigeration and other heavy equipment ship by freight carrier. A liftgate, a delivery appointment or inside delivery needs to be arranged with Norpex before paying.
Can I return the Veetsan 504294?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
Is there a spec sheet for the Veetsan 504294?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
