Unox · XAFR04FSETDV
Unox – XAFR-04FS-ETDV ROSELLA Bakerlux Convection Oven w/ Top to Bottom Opening – NXSXAFR04FSETDV

Made inItaly
- ENERGY STARcertified
- Plug: NEMA 6-50P
- Construction: Stainless steel
- Certification: NSF certified
- Certification: ENERGY STAR
Questions about this product
What are the dimensions and weight of the Unox XAFR04FSETDV?
The Unox XAFR04FSETDV measures 31.5" (80 cm) wide, 33.9" (86 cm) deep and 19.7" (50 cm) high, and weighs 126 lb (57.2 kg).
What power supply does the Unox XAFR04FSETDV need?
Plug: NEMA 6-50P; Power supply: Electric; Voltage: 240V 3~ / 208V 3~ / 240V 1~ / 208V 1~; Electric power: 5,9-7,6 kW; Frequency: 60 Hz.
What is the capacity of the Unox XAFR04FSETDV?
Chamber capacity: 3.6 cuFt.
What certifications does the Unox XAFR04FSETDV have?
cMETus: Yes; Energy Star: Yes; NSF: Yes.
Is the Unox XAFR04FSETDV in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Unox XAFR04FSETDV?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Unox XAFR04FSETDV?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Unox XAFR04FSETDV?
The manufacturer lists: 1 year parts and labor (glass door not included). Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Unox XAFR04FSETDV?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Save $4,003.2643% below the maker's list price of $9,200.00
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
- From about $452.03/mo
Klarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $168.89/mo · $38.97/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- XAFR04FSETDV
- Brand
- Unox
- Department
- Cooking Equipment
- Plug
NEMA plug
The NEMA code names the shape of the plug and the outlet it fits (for example 5-15P is the standard 15 A, 120 V plug). The outlet at the counter has to match it, or an electrician fits one that does. - NEMA 6-50P
- Construction
- Stainless steel
- Certifications
NSF
A sanitation mark from NSF: the design and materials were judged cleanable and suitable for food use. It is not an electrical safety certification; health inspectors commonly look for it on food equipment.ENERGY STAR
An efficiency label, administered in Canada by Natural Resources Canada, for equipment that meets set energy-use criteria. Some utilities offer rebates on certified models.- Country of origin
- Italy
About this item

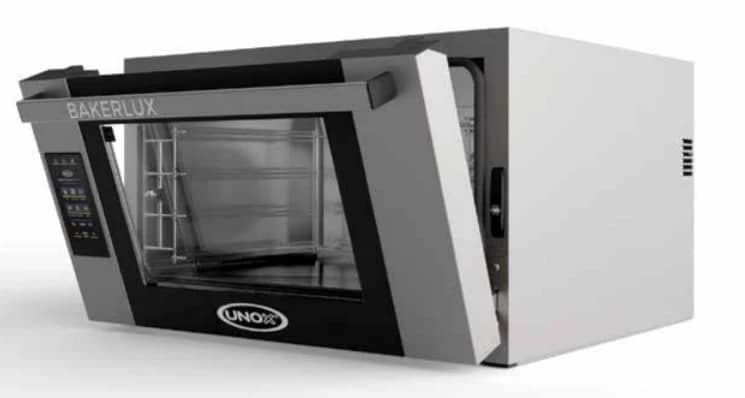

- The Unox XAFR-04FS-ETDV Rosella Bakerlux Full-Size Convection Oven is a professional-grade solution built for bakeries and pastry shops seeking exceptional productivity and consistent baking results.
- With its advanced TOUCH technology, this oven combines efficiency and simplicity, all within a compact footprint of less than a square meter.
- The intuitive control panel allows easy access to all functions, including programmable recipes, adjustable humidity levels, and multi-step baking processes.
- configured with Unox’s innovative STEAM.
See moreSee less
- Plus, the XAFR-04FS-ETDV instantly generates humidity inside the baking chamber, ensuring perfectly golden, evenly baked products with every batch.
- Plus bi-directional fan system delivers uniform air and heat distribution, providing consistent results across all trays.
- For ultimate baking precision, the DRY.
- Plus feature effectively expels excess humidity from the chamber, helping create a desirable internal product structure and maintaining texture for hours.
Specifications
General2
- Line
- BAKERLUX SHOP.Pro TOUCH
- Door
- Drop-Down Door
Electrical1
- Plug
- NEMA 6-50P
Tray specifications1
- Distance between trays
- 2 in
Certifications3
- cMETus
- Yes
- Energy Star
- Yes
- NSF
- Yes
Specifications14
- Shelf clearance
- 3"
- Fans
- 2
- Temperature range
- 0–260°C / 32–500°F
- Chamber dimensions
- 17.4" L x 27.4" W x 13.2" H
- Warranty
- 1 year parts and labor (glass door not included)
- Country of Origin
- Italy
- Type
- Commercial convection ovens with humidity
- Trays
- 4 trays 18"x26"
- Panel
- 2.4" Touch control panel
- Power supply
- Electric
- Tray size
- 18"x26"
- Voltage
- 240V 3~ / 208V 3~ / 240V 1~ / 208V 1~
- Electric power
- 5,9-7,6 kW
- Frequency
- 60 Hz
Construction2
- Door swing
- Top to bottom
- Construction
- Stainless steel housing & cooking chamber, double-pane glass door, insulated baking cavity for thermal efficiency and user safety
Capacity1
- Chamber capacity
- 3.6 cuFt
Dimensions4
- Width
- 31.5" (80 cm)
- Depth
- 33.9" (86 cm)
- Height
- 19.7" (50 cm)
- Weight
- 126 lb (57.2 kg)
Shipping1
- Shipping weight
- 161 lb (73 kg)
Description
The Unox XAFR-04FS-ETDV Rosella Bakerlux Full-Size Convection Oven is a professional-grade solution built for bakeries and pastry shops seeking exceptional productivity and consistent baking results. With its advanced TOUCH technology, this oven combines efficiency and simplicity, all within a compact footprint of less than a square meter. The intuitive control panel allows easy access to all functions, including programmable recipes, adjustable humidity levels, and multi-step baking processes. configured with Unox’s innovative STEAM. Plus, the XAFR-04FS-ETDV instantly generates humidity inside the baking chamber, ensuring perfectly golden, evenly baked products with every batch. The AIR. Plus bi-directional fan system delivers uniform air and heat distribution, providing consistent results across all trays. For ultimate baking precision, the DRY. Plus feature effectively expels excess humidity from the chamber, helping create a desirable internal product structure and maintaining texture for hours. The EFFICIENT. Power system delivers rapid heat-up times, reaching temperatures from 60°C to 260°C (140°F to 500°F) in just five minutes, while the low-e glass lining and high-performance insulation minimize energy consumption. Its long-lasting stainless steel housing, cooking chamber, and double-pane glass door deliver longevity and thermal efficiency. The interior LED lighting delivers excellent visibility, while the insulated baking cavity enhances safety. Additional delivers include a proofer control option (proofer is sold separately), fan shut-off when the door is opened, and an automatic door locking mechanism for enhanced safety. The oven provides two fan speeds, humidity settings from 0% to 100%, and the ability to program up to 99 recipes with 1-9 baking steps. With a 3.6 cu. ft. chamber capacity and a shelf clearance of 3 inches, the Unox XAFR-04FS-ETDV accommodates various baking needs. Made in Italy and backed by a one-year warranty, it is an well-suited choice for professionals looking to elevate their baking operations. *NOTE: Full-Size Proofer and the Full-Size Proofer with Boiler are each sold separately. If this item is required by a certain date, please contact Norpex before ordering to guarantee delivery times can be met. If you have any questions about this item or the terms above, please or email us at commercial@Norpex.
Manuals and documents4
4 documents
- Unox XAFR-04FS-ETDV User manualOperation and usePDF, opens in a new tab
- Unox XAFR-04FS-ETDV Installation manualInstallationPDF, opens in a new tab
- Unox XAFR-04FS-ETDV Spec sheetSpec sheetPDF, opens in a new tab
- Unox XAFR-04FS-ETDV BrochureBrochurePDF, opens in a new tab
