Scotsman · HID540ABX-1

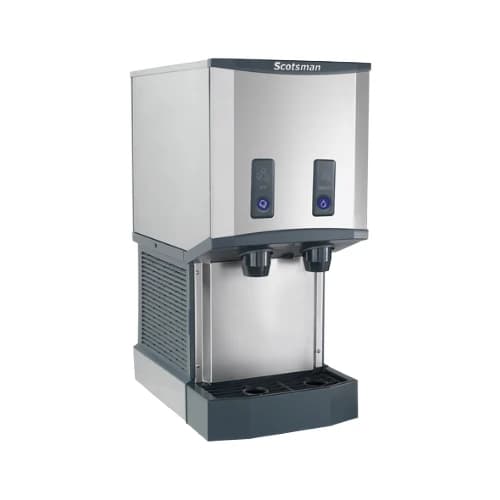

Scotsman HID540ABX-1 21″ Meridian Push-Button Air Cooled Countertop Nugget Ice Machine & Water Dispenser – 500 Lbs.
- 3-yearmanufacturer warranty
- Voltage: 115V
- Phase: Single phase
- Certification: cULus certified
- Certification: NSF certified
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Good dealAt or below the market price for this model
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
From about $1,247.12/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $465.97/mo · $107.53/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- HID540ABX-1
- Brand
- Scotsman
- Department
- Refrigeration & Ice
- Voltage
- 115V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Certifications
cULus
A UL certification to both Canadian and US safety standards; the small c and us name the two countries.NSF
A sanitation mark from NSF: the design and materials were judged cleanable and suitable for food use. It is not an electrical safety certification; health inspectors commonly look for it on food equipment.- Manufacturer warranty
- 3 years, parts and labour
About this item
- 21″ countertop ice machine & water dispenser.
- Stainless steel evaporator and exterior panels for long-term durability.
- every 24h and stores up to 40 Lbs.
- Environmentally friendly R290 refrigerant.
See moreSee less
- Button activated dispensing mechanism for quick, hygienic operation.
- Fully removable bin, spouts, air filter, sink, and grill for easy cleaning & maintenance.
- USB port for fast on-site software updates.
- Industry-leading energy and water efficiency along with quieter operation.
Item details
Certifications
- Certifications
- cULus, NSF
Electrical
- Voltage
- 115V / 60Hz / 1Ph
Warranty & Origin
- Warranty
- 3 Years Parts & Labour, 5 Years Compressor Parts
- Country of Origin
- Assembled in USA
Specifications
- BTUs per hour
- 6,800
- As printed
- Air Button Activated 40/18.1 115/60/1 15 Cord 4.18 12/45.5 -
Dimensions
- Length
- 24.38" (62 cm)
- Width
- 21.25" (54 cm)
- Height
- 41" (104 cm)
- Weight
- 220 lb (99.8 kg)
Shipping
- Box length
- 27.1" (69 cm)
- Box width
- 24.2" (61 cm)
- Box height
- 47.5" (121 cm)
- Shipping weight
- 215 lb (97.5 kg)
Specs
- Model
- HID540ABX-1
- Brand
- Scotsman
- Department
- Refrigeration & Ice
- Availability
- In stock
Certifications1
- Certifications
- cULus, NSF
Electrical1
- Voltage
- 115V / 60Hz / 1Ph
Warranty & Origin2
- Warranty
- 3 Years Parts & Labour, 5 Years Compressor Parts
- Country of Origin
- Assembled in USA
Specifications2
- BTUs per hour
- 6,800
- As printed
- Air Button Activated 40/18.1 115/60/1 15 Cord 4.18 12/45.5 -
Dimensions4
- Length
- 24.38" (62 cm)
- Width
- 21.25" (54 cm)
- Height
- 41" (104 cm)
- Weight
- 220 lb (99.8 kg)
Shipping4
- Box length
- 27.1" (69 cm)
- Box width
- 24.2" (61 cm)
- Box height
- 47.5" (121 cm)
- Shipping weight
- 215 lb (97.5 kg)
Description
- 21″ countertop ice machine & water dispenser
- Stainless steel evaporator and exterior panels for long-term durability
- Produces up to 500 Lbs. every 24h and stores up to 40 Lbs. of nugget chewable ice
- Environmentally friendly R290 refrigerant
- Button activated dispensing mechanism for quick, hygienic operation
- Fully removable bin, spouts, air filter, sink, and grill for easy cleaning & maintenance
- USB port for fast on-site software updates
- Industry-leading energy and water efficiency along with quieter operation
- well-suited for hotels, restaurants, bars, healthcare facilities, etc
Description
The Scotsman HID540ABX-1 Countertop Ice Machine & Water Dispenser produces 500 Lbs. of chewable H² nugget ice daily within a compact 21.25″ width. This air cooled unit includes a 40 Lbs. storage capacity, ensuring that chilled water and ice are ready for high traffic environments without taking up excessive counter space.
This model uses a push button dispensing system that incorporates AgION antimicrobial compounds to inhibit the growth of microbes and algae. The exterior panels and evaporator are built from stainless steel to provide longevity in commercial zones. A front accessible air filter and removable bin parts allow staff to maintain hygiene standards with minimal effort during daily operations.
Utilizing R290 refrigerant, the system provides high energy efficiency with a quiet operating profile. The dispenser delivers LED diagnostic lights to help identify service needs, and a USB drive port allows for quick software updates. Sealed bearings eliminate the need for frequent lubrication, while a unit specific QR code gives staff quick access to manuals and warranty history logs.
- Restaurant Size Recommendation:Suitable for medium to large healthcare facilities, office breakrooms, or quick service beverage stations needing a 500 lbs. production capacity per day.
- Maintenance Advice:Clean the air filter and removable bin components every week, and use the unit specific QR code to track service history and deliver the bearings stay clean.
- Manufacturer’s Warranty:Scotsman delivers a 3 year parts and labor warranty on all components and a 5 year parts warranty on the compressor and condenser. Coverage applies to commercial installations in North, South, and Central America.
Read more
This product was made in United States of America.
This item meets NSF’s standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
Certified by Underwriters Laboratories, this product has been stringently tested and meets US and Canada’s safety standards.
Manuals and documents4
4 documents
- Installation and User’s Manual for Meridian Ice Maker-Dispensers models HID312X, HID525X and HID540XInstallationPDF, opens in a new tab
- Service Manual for Meridian Ice Maker-Dispensers Models HID312X, HID525X and HID540XServicePDF, opens in a new tab
- HID312X, HID525X and HID540X Service PartsPartsPDF, opens in a new tab
- Specification SheetSpec sheetPDF, opens in a new tab
Videos1
Reviews
No reviews yet. If this unit is in your kitchen, the next buyer would like to hear how it runs.
Questions about this product
What are the dimensions and weight of the Scotsman HID540ABX-1?
The Scotsman HID540ABX-1 measures 21.25" (54 cm) wide, 24.38" (62 cm) deep and 41" (104 cm) high, and weighs 220 lb (99.8 kg).
What power supply does the Scotsman HID540ABX-1 need?
Voltage: 115V / 60Hz / 1Ph.
What is the capacity of the Scotsman HID540ABX-1?
BTUs per hour: 6,800.
What certifications does the Scotsman HID540ABX-1 have?
Certifications: cULus, NSF.
Is the Scotsman HID540ABX-1 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Scotsman HID540ABX-1?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Scotsman HID540ABX-1?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Scotsman HID540ABX-1?
The manufacturer lists: 3 Years Parts & Labour, 5 Years Compressor Parts. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Scotsman HID540ABX-1?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
