GBS – The RouxGaRoux Series: Industrial T-Towers

Product Description

The RouxGaRoux Tower is a commanding T-style dispensing system designed for high-capacity service in commercial environments. Built from robust304 Schedule 10 Stainless Steel, this tower features a centered vertical column supporting a wide horizontal crossbar, delivering a balanced, symmetrical aesthetic. Its versatile design makes it ideal for everything from busy taprooms to stadium concessions. The series offersSingle Facedmodels for traditional back-bar or front-bar setups andDouble Faced (DF)models for island configurations, allowing bartenders to pour from both sides of the station simultaneously.

Face Configurations

Single Faced (SF)

• Application:Standard bars where faucets are needed on the front side only.
• Capacity:Configurable from 4 to 18 faucets in a single row.
• Availability:Counter Mount, Soffit Mount, and Wall Mount.

Double Faced (DF)

• Application:Island bars and high-volume venues requiring access from both sides. Faucets are mounted on both the front and back of the crossbar.
• Capacity:Configurable from 4 to 18 faucets per side.
• Availability:Counter Mount and Soffit Mount.

Mounting Styles

• Counter Mount (Model: CM)The classic T-Tower design that anchors directly to the bar top with a central pedestal.
  • Best For:Front bars and island stations requiring a sturdy, centered focal point.
  • Versions:Single Faced & Double Faced.
  • Clearance:10 7/8" from deck to faucet center.
  • Base:9" diameter mounting flange.
  • Total Height:13 1/2".

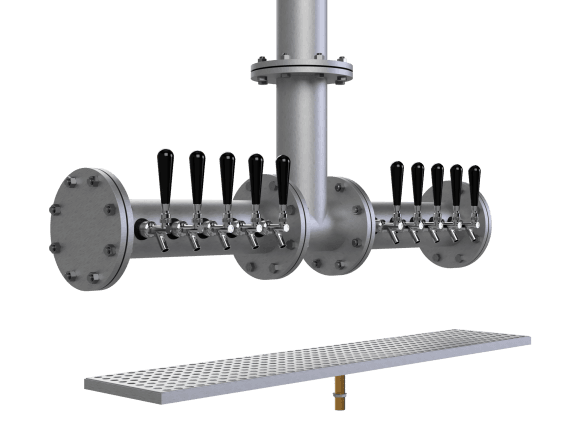

• Soffit Mount (Model: SM)A suspended T-configuration that hangs from the ceiling, keeping the counter surface completely open.
  • Best For:Maximizing counter space and maintaining clear sightlines.
  • Versions:Single Faced & Double Faced.
  • Installation:Custom drop pipe lengths available.
  • Ergonomics:Recommended installation height of 55"-59" from finished floor to faucet.
• Wall Mount (Model: WM)A T-style tower that secures to a vertical wall surface.
  • Best For:Back-bar applications with limited counter depth.
  • Versions:Single Faced only.
  • Projection:Extends 17" from the wall to the front of the faucet.
  • Clearance:8" from wall to center of the tower pipe.

Technical Specifications

Construction

• Material:100% 304 Schedule 10 Stainless Steel pipe.
• Finish:Standard #4 Brushed Stainless Steel or Custom Powder Coated (RAL colors).
• Cooling:Glycol-ready recirculation loop.

Dispensing & Dimensions

• Faucet Spacing:Standard 3" Center-to-Center spacing.
• Mounting Hardware:Includes 13 x 5" bolts and nuts.

Add-On Options

• Glass Rinser:Integrated rinser available in Center or Offset positions (Counter Mount only).
• Drainage:Two drains required on all drip pans over 45" wide.

Model Comparison Summary

FeatureCounter Mount (CM)Soffit Mount (SM)Wall Mount (WM)Install LocationBar Top / DeckCeiling / SoffitVertical WallFaces AvailableSingle & DoubleSingle & DoubleSingle OnlyMaterial304 Sched 10 SS304 Sched 10 SS304 Sched 10 SSMin Faucets444Max Faucets18 (SF) / 18 (DF)18 (SF) / 18 (DF)18 (Total)Total Height13 1/2"Custom Drop13 1/2" (Structure)
