GBS – The Pirogue Series: Industrial Bridge Towers

Product Description

The Pirogue Tower is a heavy-duty dispensing solution designed for high-volume commercial venues and island bars. Fabricated entirely from industrial-grade304 Schedule 10 Stainless Steel, this bridge-style tower features a robust pipe construction that delivers a striking "industrial chic" aesthetic.

The series is defined by its versatility, offeringSingle Facedmodels for standard service andDouble Faced (DF)models for high-traffic island bars, allowing bartenders to pour simultaneously from both sides of the tower.

Face Configurations

Single Faced (SF)

• Application:Standard bars, back bars, or service stations where dispensing is required from one side only.
• Capacity:Configurable from 4 to 26 faucets in a single row.
• Availability:Counter Mount, Soffit Mount, and Wall Mount.

Double Faced (DF)

• Application:Island bars, stadiums, and high-volume taprooms. Faucets are mounted on both the front and back of the bridge, maximizing serving efficiency without increasing the tower's footprint.
• Capacity:Mirrors the single-faced capacity on both sides (e.g., a 10-faucet length provides 10 taps on the front and 10 taps on the back).
• Availability:Counter Mount and Soffit Mount only.

Mounting Styles

• Counter Mount (Model: CM)The classic "Pass-Thru" bridge design that secures directly to the bar top.
  • Best For:Creating a centerpiece on a front bar or island.
  • Versions:Single Faced & Double Faced.
  • Clearance:10 7/8" from deck to faucet center.
  • Base:6" diameter mounting flanges with 13 1/2" total height.

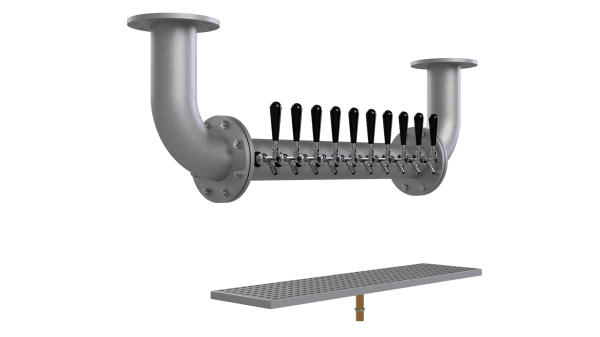

• Soffit Mount (Model: SM)A suspended configuration that hangs from the ceiling or header, keeping the bar top completely clear.
  • Best For:Venues requiring open sightlines or maximum counter space.
  • Versions:Single Faced & Double Faced.
  • Installation:Custom drop pipe lengths available to match ceiling height.
  • Ergonomics:Recommended installation height of 55"-59" from finished floor to faucet.

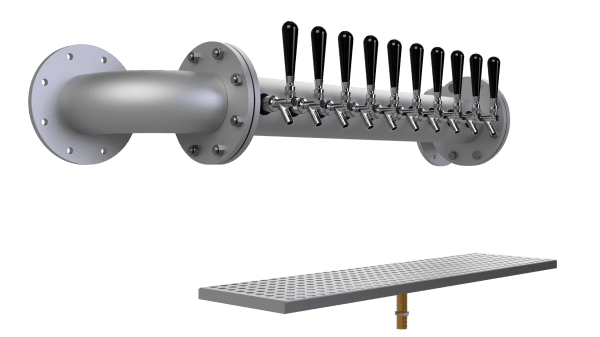

• Wall Mount (Model: WM)A cantilevered "floating" design that mounts to a vertical surface.
  • Best For:Back-bar setups with limited counter depth.
  • Versions:Single Faced only.
  • Projection:Extends 17" from the wall to the front of the faucet.
  • Clearance:8" from wall to center of the tower pipe.

Technical Specifications

Construction

• Material:100% 304 Schedule 10 Stainless Steel pipe.
• Finish:Standard #4 Brushed Stainless Steel or Custom Powder Coated (RAL colors).
• Cooling:Glycol-ready recirculation loop ensures cold pours.

Dispensing & Dimensions

• Faucet Spacing:Standard 3" Center-to-Center spacing.
• Line Exit:
• Single Faced:Lines exit one side for 4-18 faucets; both sides for 19+ faucets.
• Double Faced:Lines exit both sides for models over 18 faucets (check specific weight loads for support).
• Mounting Hardware:Includes 13 x 5" bolts and nuts.

Add-On Options

• Glass Rinser:Integrated rinser available in Center or Offset positions (Counter Mount only).

Model Comparison Summary

FeatureCounter Mount (CM)Soffit Mount (SM)Wall Mount (WM)Install LocationBar Top / DeckCeiling / SoffitVertical WallFaces AvailableSingle & DoubleSingle & DoubleSingle OnlyMaterial304 Sched 10 SS304 Sched 10 SS304 Sched 10 SSMin Faucets444Max Faucets26 (per side)26 (per side)26 (Total)Total Height13 1/2"Custom Drop13 1/2" (Structure)
