GBS – The Fais Do Do Series: Cantilever L-Towers

Product Description

The Fais Do Do Tower is a striking dispensing solution designed for high-volume commercial venues and island bars. Fabricated entirely from industrial-grade304 Schedule 10 Stainless Steel, this cantilever-style tower features a robust single-pedestal construction that creates a dramatic "floating" aesthetic. The series is defined by its open architecture, offeringSingle Facedmodels for standard service andDouble Faced (DF)models for high-traffic island bars, allowing bartenders to pour simultaneously from both sides of the tower.

Face Configurations

Single Faced (SF)

• Application:Standard bars, back bars, or service stations where dispensing is required from one side only.
• Capacity:Configurable from 4 to 18 faucets in a single row.
• Leg Orientation:Must specifyLeft SideorRight Sideleg placement to match bar layout.
• Availability:Counter Mount and Soffit Mount.

Double Faced (DF)

• Application:Island bars, stadiums, and high-volume taprooms. Faucets are mounted on both the front and back of the horizontal pipe, maximizing serving efficiency without increasing the tower's footprint.
• Capacity:Configurable from 4 to 10 faucets per side.
• Availability:Counter Mount and Soffit Mount.

Mounting Styles

• Counter Mount (Model: CM)The distinctive L-shaped cantilever design that secures directly to the bar top with a single offset pedestal.
  • Best For:Creating a centerpiece on a front bar or island with minimal counter footprint.
  • Versions:Single Faced & Double Faced.
  • Clearance:10 7/8" from deck to faucet center.
  • Base:7 1/2" diameter flange (Single Faced) or 9" diameter flange (Double Faced).
  • Total Height:13 1/2".

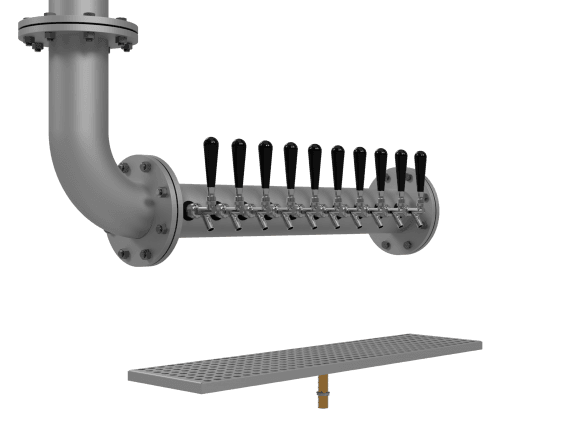

• Soffit Mount (Model: SM)A suspended configuration that hangs from the ceiling or header, keeping the bar top completely clear.
  • Best For:Venues requiring open sightlines or maximum counter space.
  • Versions:Single Faced & Double Faced.
  • Installation:Custom drop pipe lengths available to match ceiling height.
  • Ergonomics:Recommended installation height of 55"-59" from finished floor to faucet.

Technical Specifications

Construction

• Material:100% 304 Schedule 10 Stainless Steel pipe.
• Finish:Standard #4 Brushed Stainless Steel or Custom Powder Coated (RAL colors).
• Cooling:Glycol-ready recirculation loop ensures cold pours.

Dispensing & Dimensions

• Faucet Spacing:Standard 3" Center-to-Center spacing.
• Mounting Hardware:Includes 13 x 5" bolts and nuts.

Add-On Options

• Glass Rinser:Integrated rinser available in Center or Offset positions (Counter Mount only).

Model Comparison Summary

FeatureCounter Mount (CM)Soffit Mount (SM)Install LocationBar Top / DeckCeiling / SoffitFaces AvailableSingle & DoubleSingle & DoubleMaterial304 Sched 10 SS304 Sched 10 SSMin Faucets44Max Faucets18 (SF) / 10 (DF)18 (SF) / 10 (DF)Total Height13 1/2"Custom Drop
