GBS – The Caimon Series: Cylindrical Draft Towers

Product Description

The Caimon Tower series defines modern dispensing with its clean, cylindrical aesthetic. Unlike the industrial pipe look of the Pirogue, the Caimon features sleek, tubular stainless steel columns and headers, offering a refined and polished appearance suitable for any bar environment. Constructed from premium304 Stainless Steel, the Caimon family scales to meet any dispensing requirement. The series starts with the single-pedestalCaimon T, expands to the double-pedestalCaimon H, and culminates in the massive, triple-pedestalCaimon Mfor high-volume beer walls.

Series Configurations

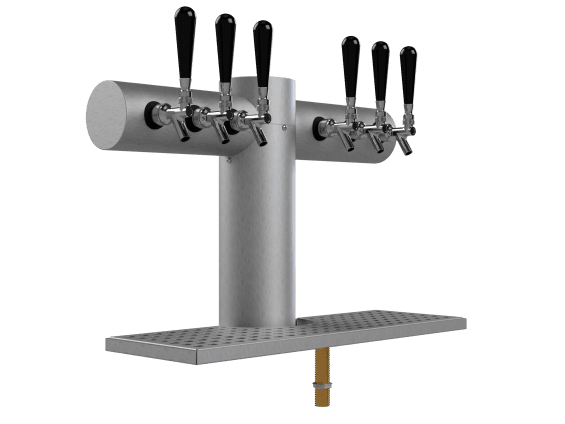

Caimon T (Single Pedestal)A classic T-style tower with a single central column.

• Capacity:4 to 10 faucets.
• Design:Ideal for compact stations or moderate tap counts where a centered focal point is desired.

Caimon H (Double Pedestal)A goalpost or "H-style" tower supported by two outer columns.

• Capacity:8 to 20 faucets.
• Design:Provides structural stability for longer headers and wider tap selections.
• Line Exit:Lines exit via the Left or Right leg (for up to 18 faucets) or both legs (for 19+ faucets).

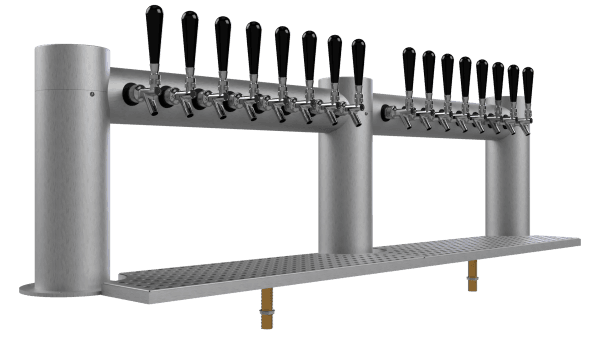

Caimon M (Multi-Pedestal)A high-capacity solution featuring three vertical columns (two outer, one central) to support extensive tap runs.

• Capacity:16 to 40+ faucets.
• Design:Engineered for stadium-sized beer walls.
• Line Exit:Lines exit through both outer columns (or all three columns for setups over 32 faucets).

Mounting & Specifications

• Standard Counter MountAll Caimon models are designed to bolt securely to the bar top/deck.
• Total Height:16 1/2" (to top of handle).
• Box Height:13 1/2" (deck to top of header).
• Faucet Clearance:10 7/8" (deck to center of faucet).
• Pedestal Diameter:5" diameter columns.
• Header Diameter:5" diameter.

Technical Specifications

Construction

• Material:100% 304 Stainless Steel.
• Finish:Standard #4 Brushed Stainless Steel, #8 Mirror Polished, or Custom Powder Coated (RAL colors).
• Cooling:Glycol-ready recirculation loop.

Dispensing Details

• Faucet Spacing:Standard 3" Center-to-Center.
• Mounting Hardware:Includes 13 x 5" bolts and nuts.

Add-On Options

• Glass Rinser:Integrated rinser available in Center or Offset positions (Counter Mount only).
• Drainage:Two drains required on all drip pans over 45" wide.

Model Comparison Summary

FeatureCaimon TCaimon HCaimon MStyleT-Tower (1 Leg)H-Tower (2 Legs)Multi-Tower (3 Legs)Min Faucets4816Max Faucets102040+Column Width5"5"5"Line ExitCenterLeft / Right / BothOuter Columns
