Calcana · 3162004

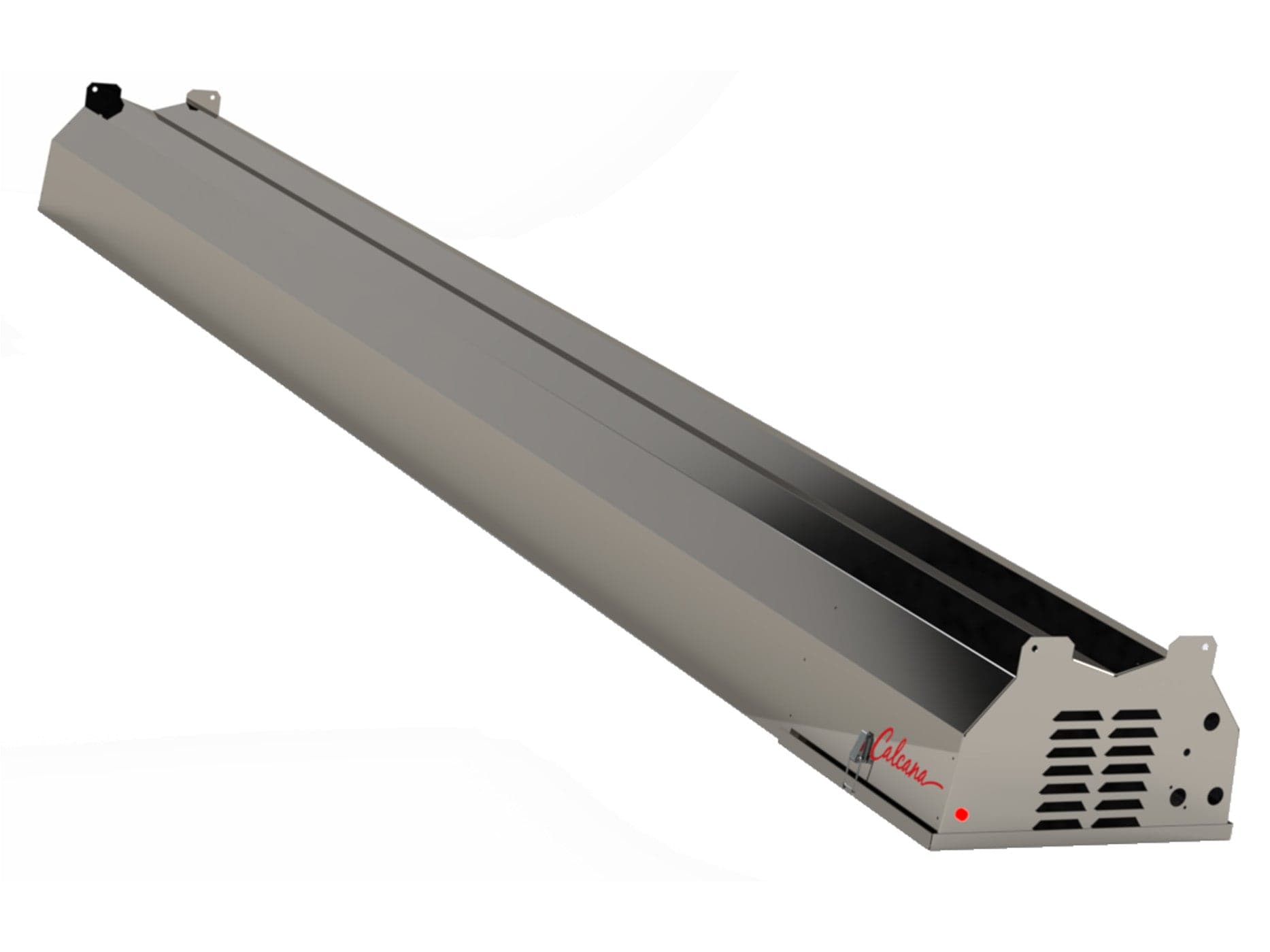

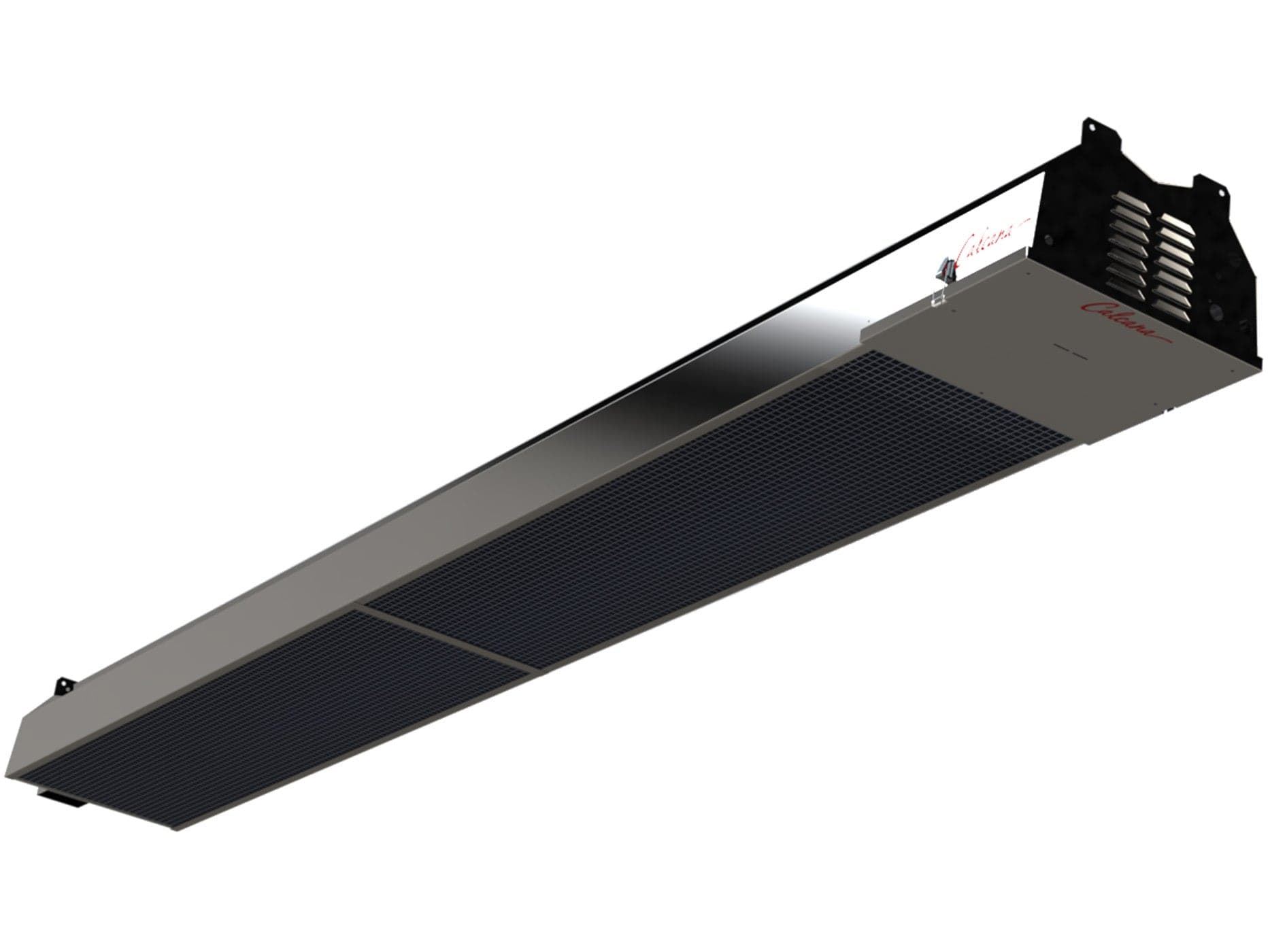

Calcana – PH-75 HO 10' Heater, Marine Grade, High Output Infrared Heating, Natural Gas – 3162004
or $169.36/mo financed
In stock· leaves the warehouse in 1–3 business days · delivery 7–10 business days after
36 months on approved credit. Apply for financing.
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Delivery price
- Delivery
- Shipping options are confirmed before you pay. Shipping details
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET. Project pricing in one business day.
Buyer's notes
A Calcana PH-75 HO 10' natural gas infrared patio heater in 316 marine-grade stainless steel, for restaurant patios, docks and waterfront terraces that need strong heat outdoors.
A modulating burner adjusts infinitely from 37,500–75,000 BTU/hr and covers about 120 to 160 sq ft under average exposed conditions, and the marine-grade steel stands up to humid, salty air.
Check before ordering
- A licensed gas fitter connects it to natural gas.
- Mount it 78" min above the patio and no greater than 10' up, keeping 6" above, 42" below and 12" at the sides clear.
- Plan one heater per 120 to 160 sq ft of seating.
- Model
- 3162004
- Brand
- Calcana
- Department
- Restaurant Furniture
- Size, L × W × H
- 15 × 122 × 9.25
- Weight
- 146 lb
- Availability
- In stock
| Gas | |
|---|---|
| Gas Type | Natural Gas |
| BTU Range | 37,500–75,000 BTU/hr |
| Construction | |
| Material | 316 Marine-Grade Stainless Steel |
| Controls | |
| Input Type | Modulating (variable, infinitely adjustable) |
| Clearance to Combustibles | |
| Above | 6" |
| Below | 42" |
| Sides | 12" |
| Coverage | |
| Heated Area | 120 to 160 sq ft (average conditions, exposed) |
| Installation | |
| Mounting Height | 78" min; no greater than 10' above the patio surface |
Experience unmatched performance and resilience with thePH-75 HO 10′ Marine Grade Infrared Heater,Calcana’s premier solution forcoastal, open-air, and marine environments. Designed to thrive in harsh, humid, and salty conditions, thishigh-output infrared patio heateris constructed from316 marine-grade stainless steel, offering exceptional corrosion resistance and long-term durability.
Whether you're outfitting a restaurant by the sea, a dockside commercial space, or a residential patio near the coast, thismodulating gas heaterensures reliable, powerful heating that adapts to your needs, all while withstanding the elements.
Marine-Grade Heater Built to Withstand Tough Outdoor Weather Conditions
ThePH-75 HO 10′ Heateris crafted from316 stainless steel, a top-tier alloy specifically selected for its superior performance in marine and high-humidity environments. It resists rust, corrosion, and damage from exposure to salt air, making it the trusted choice for locations near oceans, lakes, or anywhere moisture is a concern.
Why choose marine-grade stainless steel?
-
Outstanding corrosion resistance
-
Long lifespan in coastal climates
-
Low maintenance and sleek appearance
-
Ideal for both residential and commercial applications
Powerful and Adjustable Heating Performance
This10′ high-output infrared heateroffers a wide BTU range, from37,500 to 75,000,giving you the flexibility to adjust heat levels based on weather, space size, and usage. Themodulating input typeallows for smooth transitions between low and high settings, providing optimal comfort while maximizing fuel efficiency.
Key Performance Features:
-
Input Type:Modulating for energy-efficient operation
-
BTU Range:37,500 to 75,000 for broad heating coverage
-
Length Installed:10′ 4″ overall length for extended reach
-
Mounting Flexibility:Compatible with multiple mounting configurations for ceilings, walls, and overhead installs

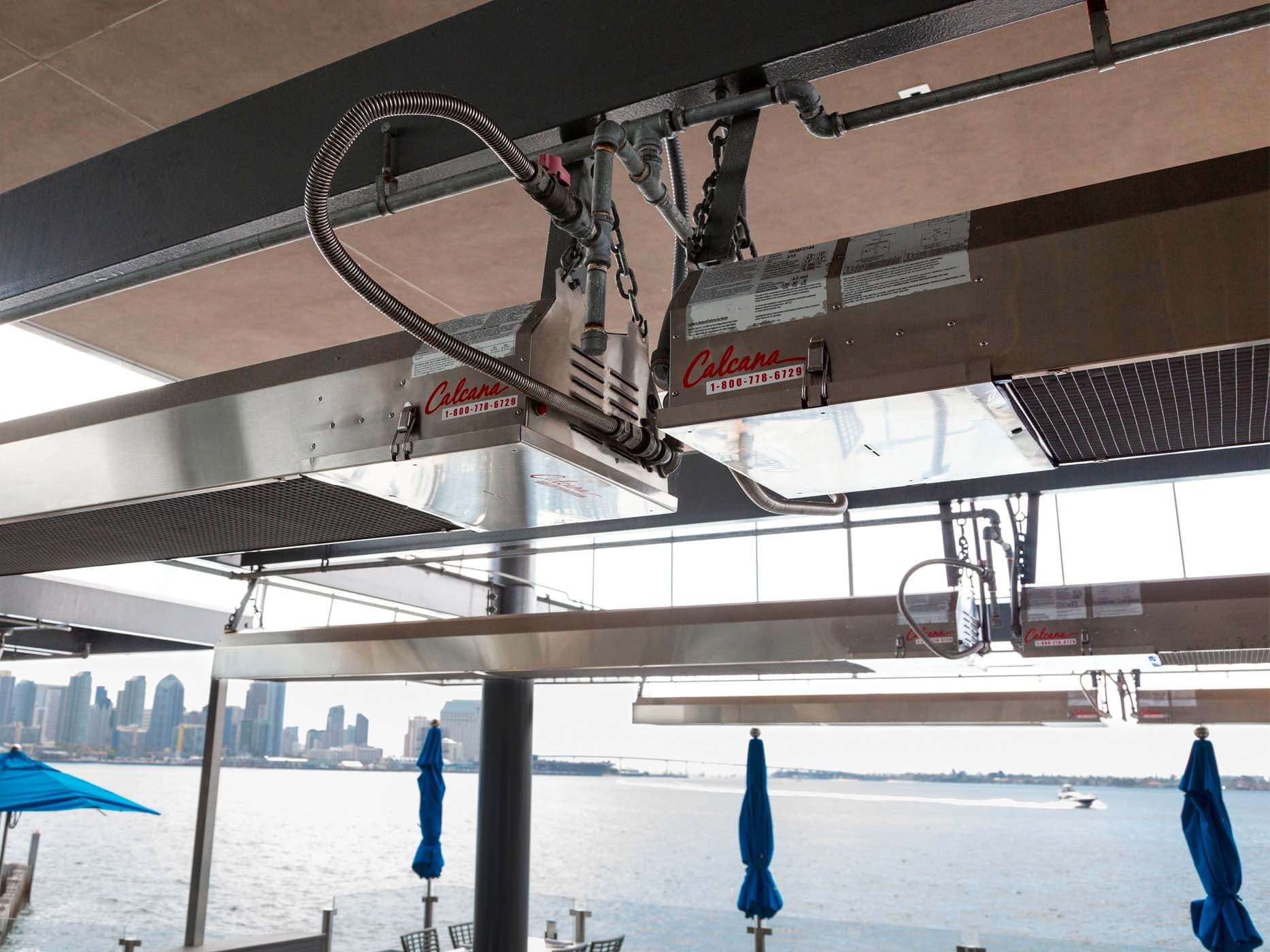

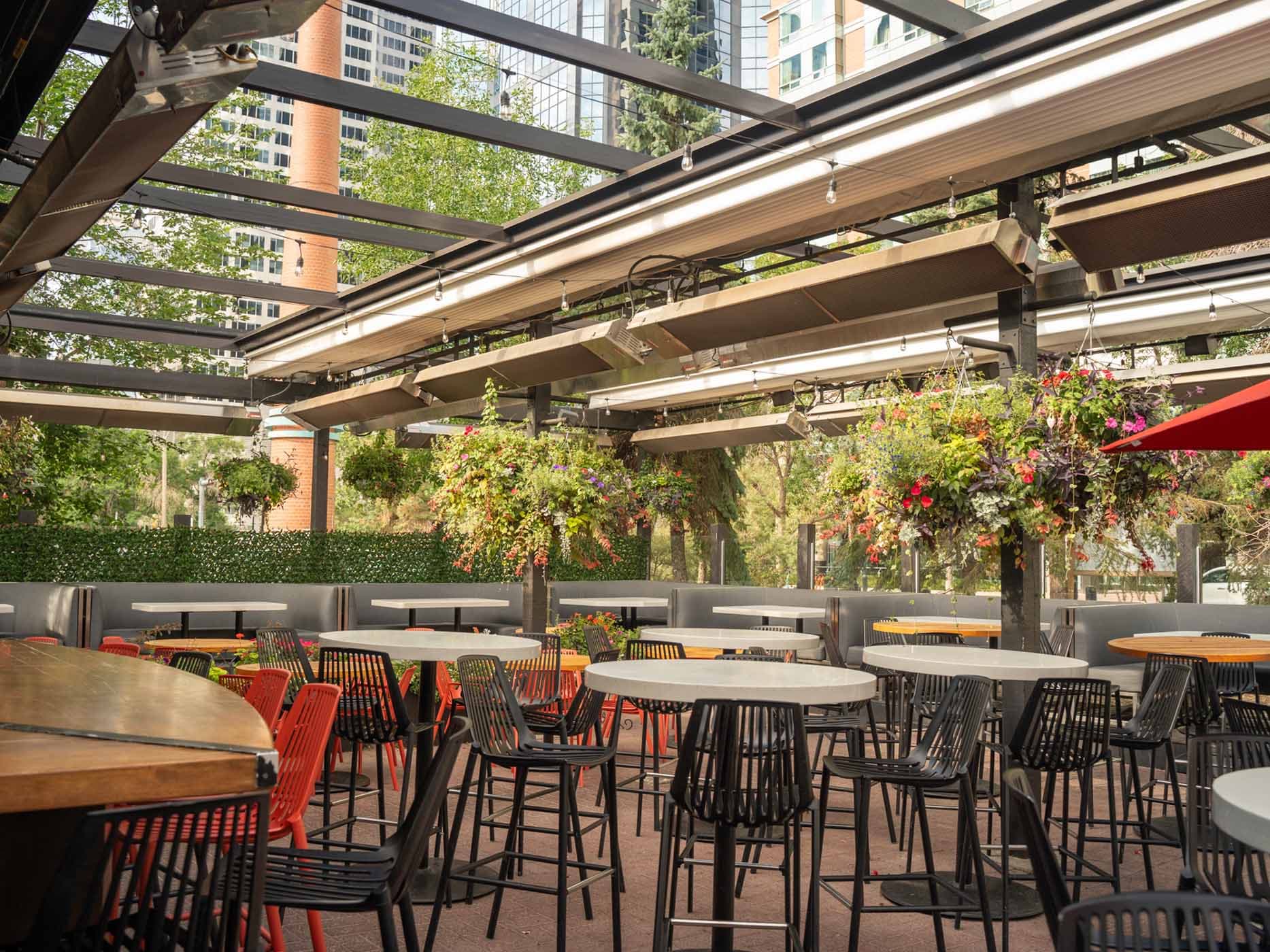

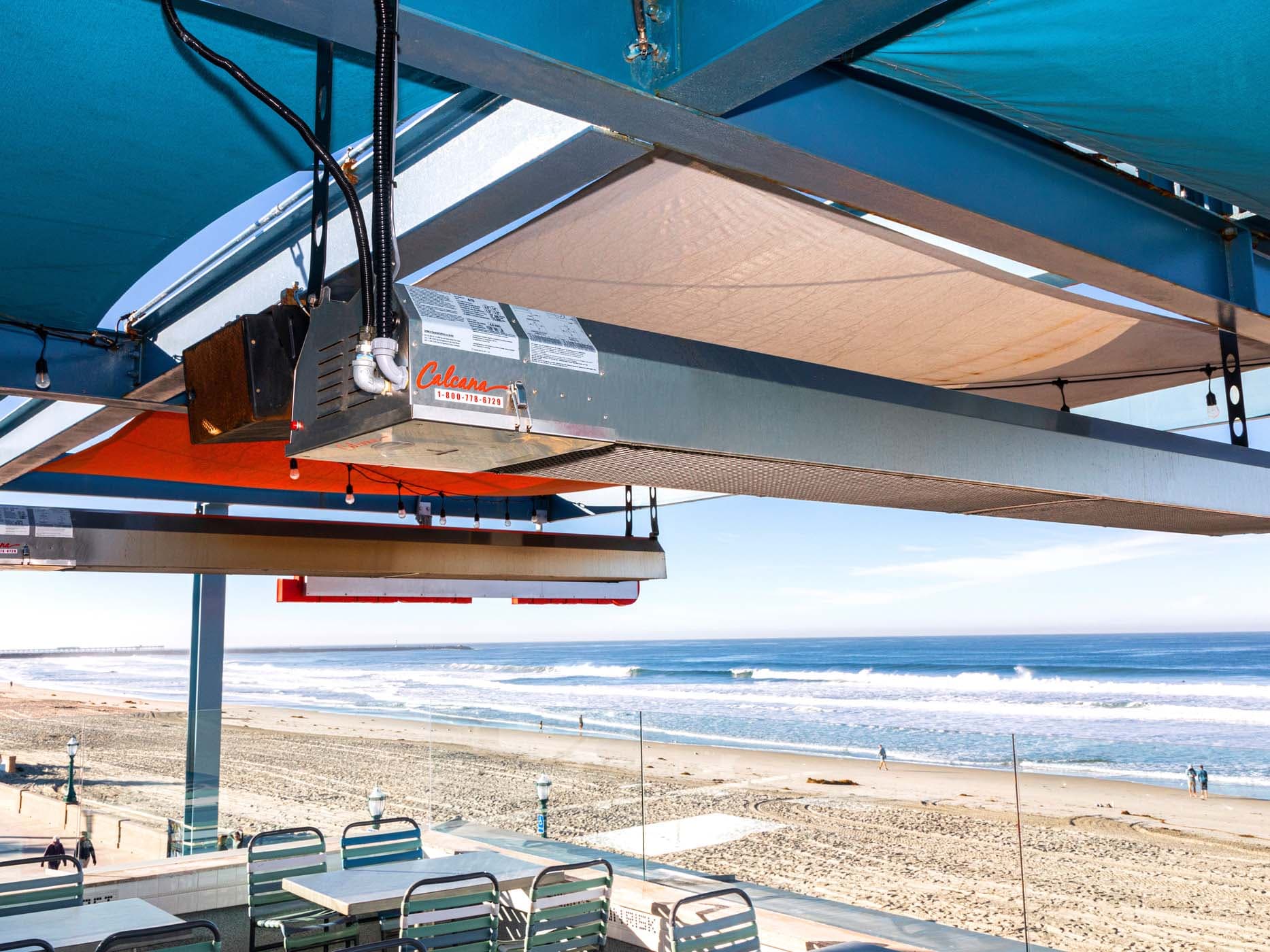

Ideal for Open-Air and Coastal Installations
Designed forrugged outdoor applications, the PH-75 HO 10′ is perfectly suited for areas exposed to wind, moisture, and varying temperatures. It performs reliably in both commercial and residential outdoor settings, including:
-
Waterfront patios and decks
-
Marine terminals and boatyards
-
Open-air dining venues
-
Luxury coastal resorts
-
Covered outdoor lounges
This heater is built towithstand the toughest elementswhile deliveringeven, directional radiant heatto create warm, comfortable spaces all year long.
Key Features at a Glance:
-
Material:316 Marine-Grade Stainless Steel
-
Heat Output:Adjustable 37,500–75,000 BTUs
-
Input Type:Modulating for customized control
-
Length:10′ 4″ installed
-
Application:Ideal for open, marine, and coastal environments
-
Design:Sleek and robust for both function and aesthetics
Trusted Heating for Demanding Conditions
ThePH-75 HO 10′ Marine Grade High Output Infrared Heateris the ultimate solution when strength, performance, and durability matter most. With marine-grade construction and powerful, modulating infrared output, it’s the preferred heater for professionals seeking reliability in challenging outdoor settings.
No reviews yet. If this unit is in your kitchen, the next buyer would like to hear how it runs.
Questions about this product
What are the dimensions and weight of the Calcana PH-75?
The Calcana PH-75 measures 15 × 122 × 9.25 in (length × width × height), and weighs 146 lb.
What power supply does the Calcana PH-75 need?
Gas Type: Natural Gas; BTU Range: 37,500–75,000 BTU/hr.
Is the Calcana PH-75 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Calcana PH-75?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. There is no automatic free-shipping or flat-rate offer.
Can I return the Calcana PH-75?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
Is there a spec sheet for the Calcana PH-75?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
Can I finance the Calcana PH-75?
Financing is available on approved credit. Apply from the financing page and a Norpex rep sets it up within one business day.
How much area does it heat?
120 to 160 sq ft in average exposed conditions.
Is the output adjustable?
Yes. It modulates from 37,500 to 75,000 BTU/hr.
