Ascaso · 5W6BTX2GR00

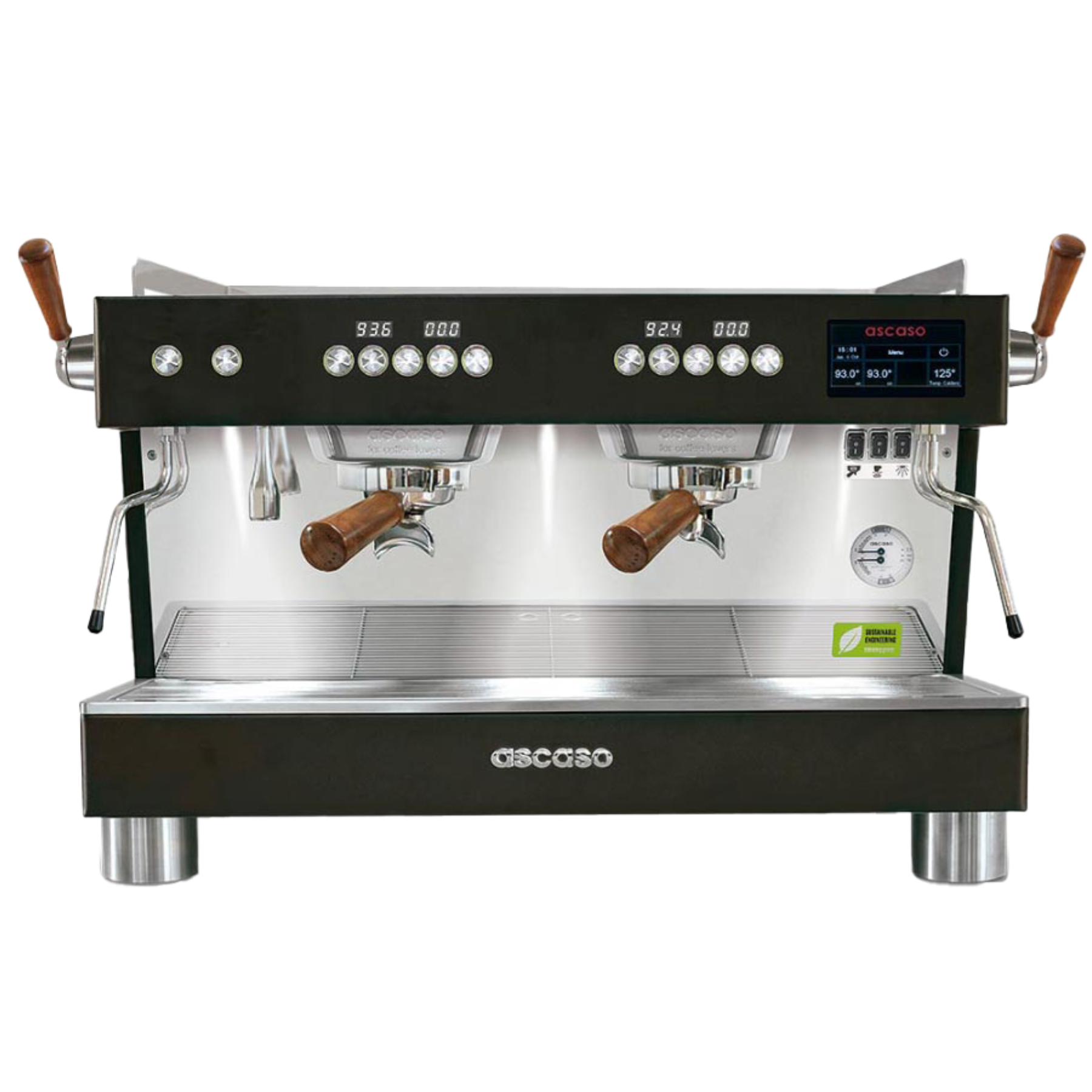

Ascaso Barista T PRO, 2 Group, Black
Questions about this product
What are the dimensions and weight of the Ascaso 5W6BTX2GR00?
The Ascaso 5W6BTX2GR00 measures 27.56" (70 cm) wide, 21.06" (54 cm) deep and 18.7" (48 cm) high, and weighs 156.5 lb (71.0 kg).
Is the Ascaso 5W6BTX2GR00 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Ascaso 5W6BTX2GR00?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Ascaso 5W6BTX2GR00?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
Can I finance the Ascaso 5W6BTX2GR00?
Financing is available on approved credit. Apply from the financing page and a Norpex rep sets it up within one business day.
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Free shippingDrop-off delivery, Canada-wide
Questions before you buy?
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
- LEASEAbout $510.26/mo · $117.75/wk
- Free shipping
- Free drop-off delivery across Canada: to your door for a parcel, to a business with a loading dock for a pallet. A liftgate, a home delivery or a remote address costs only the difference, shown at checkout.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Price match
Price match
Ask for a price matchIf another Canadian store sells this same model new and in stock for less, delivered to your postal code, send it to us before you buy and we'll match their delivered price. Marketplaces, clearance and used items don't qualify.
A matched price is paid by Interac e-Transfer or bank deposit.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- 5W6BTX2GR00
- Brand
- Ascaso
- Department
- Beverage Equipment
About this item
- Thermoblocks – Professional Thermoblocks with a dynamic heating system.
- PID Control – Thermal stability of +/- 0.5ºC with PID controller.
- Rotary Pump – Rotary pump with volumetric control, programmable pre-infusion, and shot timer.
- High-definition Touchscreen -High-definition touchscreen for easy adjustment of machine parameters.
See moreSee less
- Multi-groups -Multi-group system with an independent steam boiler in stainless steel.
- High Quality – High-quality materials, accessories, and components in stainless steel.
- Portafilters, Filters and Handles – Portafilter (Ø58mm), filters, and showers made of stainless steel.
- 5-Year Warranty on Boilers and Thermoblocks.
Specifications
Specifications6
- Groups
- 2
- Steam Boiler
- 8.5 L, independent and insulated
- Display
- 4.2" LCD display; digital multifunction display, 2 per group
- Volumetric Control
- 4 programmable doses
- Thermal Stability
- ±0.5°C
- Max Cup Height
- 9 or 12 cm
Dimensions4
- Width
- 27.56" (70 cm)
- Depth
- 21.06" (54 cm)
- Height
- 18.7" (48 cm)
- Weight
- 156.5 lb (71.0 kg)
Description
The Ascaso Barista T PRO – A professional machine for commercial spaces that meets the demand for more sustainable, energy-efficient, user-friendly, and durable products.
The Barista T reinvents tradition by basing it on sustainable engineering and making it more energy efficient. T Technology combines multi-group technology with independent thermoblocks for coffee and a separate steam boiler.
Product Features
- Thermoblocks– Professional Thermoblocks with a dynamic heating system
- PID Control– Thermal stability of +/- 0.5ºC with PID controller
- Rotary Pump– Rotary pump with volumetric control, programmable pre-infusion, and shot timer
- High-definition Touchscreen-High-definition touchscreen for easy adjustment of machine parameters
- Multi-groups-Multi-group system with an independent steam boiler in stainless steel
- High Quality– High-quality materials, accessories, and components in stainless steel
- Portafilters, Filters and Handles– Portafilter (Ø58mm), filters, and showers made of stainless steel
- Warranty
- 1 Year Labour
- 2-Year Parts
- 5-Year Warranty on Boilers and Thermoblocks
Specifications
| 2 Group | 3 Group | |
| Dimensions (W x H x D) (Inches) | 27.5 x 18.7 x 21 | 36.2 x 18.7 x 21 |
| Weight (lbs) | 156.5 | 205 |
| Voltage | 220 – 240V 50/ 60 Hz | 220 – 240V 50/ 60 Hz |
| Boiler Power (W) | 3500 | 3500 |
| Power Per Coffee Group | 1000 | 1000 |
| Power Guard System | Yes | Yes |
| Max. Cup Height (cm) | 12 | 12 |
| Pump | Rotary | Rotary |
| 4.2″ LCD Display | Yes | Yes |
| Digital Multifunction Display | 2 per Group | 2 Per Group |
| PID Temperature Control | Yes | Yes |
| Volumetric Control | 4 Programmable Doses | 4 Programmable Doses |
| Shot Timer | Yes | Yes |
| Statistics | Yes | Yes |
| Programmable Pre-infusion | Yes | Yes |
| App Connectivity (Android) | Yes | Yes |
| Dynamic Pre-heating | Yes | Yes |
| Thermal Stability | ±0,5°C | ±0,5°C |
| Independent Professional Coffee Groups | Yes | Yes |
| Independent Stainless Steel Steam Boiler (L) | Yes | Yes |
| Coffee Temperature Adjustment | 80 – 110ºC 0.1ºC Increments |
80 – 110ºC 0.1ºC Increments |
| Steam Temperature Adjustment | 110 – 165ºC 1ºC Increments |
110 – 165ºC 1ºC Increments |
| Cool Touch Steam Wand | 2 x 12mm, Double Wall Stainless Steel | 2 x 12mm, Double Wall Stainless Steel |
| Separate Hot Water With Solenoid | Anti-Splash, 2 Doses | Anti-Splash, 2 Doses |
| Double Pressure Gauge | Coffee / Boiler | Coffee / Boiler |
| Programmable Stand-by | Yes | Yes |
| Insulated Coffee Groups | Yes | Yes |
| Heating Element in Coffee Groups | Yes | Yes |
| Insulated Steam Boiler | Yes | Yes |
| Insulated Tubes | Yes | Yes |
| Active Cup Warmer | Yes | Yes |
| Barista Lights | Yes | Yes |
| Adjustable Feet (+/- 30mm) | Chromed, Large Diameter |
Chromed, Large Diameter |
| Wood Handles | Walnut | Walnut |
| Steam Joysticks | Yes | Yes |
| Stainless Steel Wire Tray | Yes | Yes |
| Illuminated Back Panel | Yes | Yes |
| Housing Material | Stainless Steel | Stainless Steel |
