Omcan · 47546 · FW-CN-0001
Omcan Single Freestanding Narrow Warming Drawer – 120 V, 450W
- 1-yearmanufacturer warranty
- Voltage: 120V
- Phase: Single phase
- Current: 3.75 A
- Power: 450 W
- Plug: NEMA 5-15P
- Certification: UL certified
- Certification: NSF certified
Questions about this product
What are the dimensions and weight of the Omcan 47546?
The Omcan 47546 measures 32.5" (83 cm) wide, 21" (53 cm) deep and 17" (43 cm) high, and weighs 125 lb (56.7 kg).
What power supply does the Omcan 47546 need?
Power: 450 W; Electrical: 120V / 60Hz / 1Ph; Plug Type: 5-15 P.
What is the capacity of the Omcan 47546?
Food Pan Included: Yes, 1.
What certifications does the Omcan 47546 have?
Certifications: UL, NSF.
Is the Omcan 47546 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Omcan 47546?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Omcan 47546?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Omcan 47546?
The manufacturer lists: 1 Year Parts Warranty, 1 Year Labor Warranty. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Omcan 47546?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
What pan fits?
One full size 12" x 20" x 6" pan, included.
What temperature range does it have?
80ºF - 220ºF (27ºC - 104.4ºC).
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Save $550.1526% below the maker's list price of $2,100.14
Questions before you buy?
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
4 payments of about $387.50Afterpay: pay in 4
Every 2 weeks · 0% interest
From about $134.82/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $50.37/mo · $11.62/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- 47546
- Brand
- Omcan
- Department
- Cooking Equipment
- Maker's model
- FW-CN-0001
- Voltage
- 120V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Plug
NEMA plug
The NEMA code names the shape of the plug and the outlet it fits (for example 5-15P is the standard 15 A, 120 V plug). The outlet at the counter has to match it, or an electrician fits one that does. - NEMA 5-15P
- Current
Current
How many amps the unit draws at full load. The circuit feeding it has to be rated above this figure, which an electrician checks before installation. - 3.75 A
- Power
- 450 W
- Certifications
UL
A UL certification to US safety standards; equipment installed in Canada normally carries a Canadian mark such as cUL or cULus as well.NSF
A sanitation mark from NSF: the design and materials were judged cleanable and suitable for food use. It is not an electrical safety certification; health inspectors commonly look for it on food equipment.- Manufacturer warranty
- 1 year, parts and labour
- Country of origin
- China
About this item
- A single freestanding narrow warming drawer that holds a full size 12" x 20" x 6" pan (included), for kitchens keeping bread, sides and plated food warm next to the line.
- Its own thermostat sets 80ºF - 220ºF / 27ºC - 104.4ºC, and 1" fiberglass insulation with a drawer gasket keeps the heat in a 14” x 27” x 7.6” interior. It is UL and NSF listed and made for deep countertops.
- Check before ordering: It plugs into a 5-15 P outlet on 120V / 60Hz / 1Ph and draws 3.75A (450 W). The drawer itself weighs 91 lb; ask us for its own size, as the listed figures match the crate. Check your counter depth before ordering: the maker designs it for deep countertops.
- The Omcan single freestanding narrow drawer warmer is a great choice to keep your food warm and ready for service.
See moreSee less
- The drawer is spacious enough to fit a full size food pan of size 12″ x 20″ x 6″ which comes with the product.
- Its freestanding design lets you fit the drawer warmer anywhere in your kitchen, and the unit is designed specifically for deep countertops.

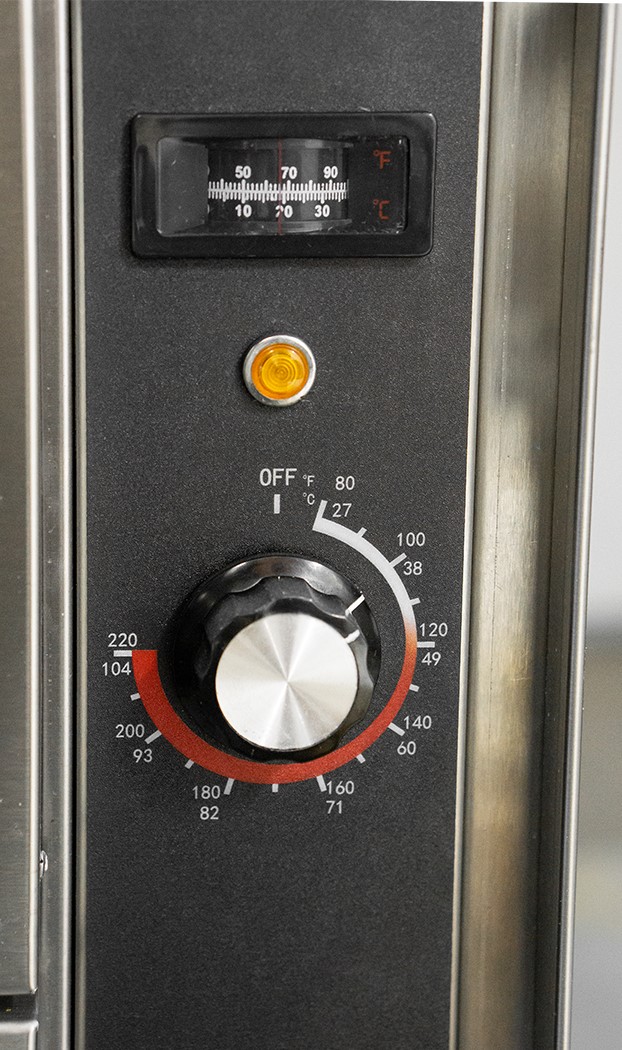

- Each drawer has a separate thermostatic control that provide the flexibility to adjust heating temperature in the 80-220 degrees Fahrenheit (27ºC-104.4 ºC) range.
- The drawer is finished with a 1″ thick fiberglass insulation and built-in drawer gasket that retains heat inside for energy efficiency.
Specifications
Specifications8
- Number of Drawers
- 1
- Temperature Range
- 80ºF - 220ºF / 27ºC - 104.4ºC
- Power
- 450 W
- Current
- 3.75A
- Electrical
- 120V / 60Hz / 1Ph
- Interior Dimensions (WDH)
- 14” x 27” x 7.6” / 356 x 686 x 193 mm (Each Insulated Drawer)
- Product Weight
- 91 lb / 41 kg
- Food Pan Included
- Yes, 1
Details4
- Country of Origin
- China
- Certifications
- UL, NSF
- Plug Type
- 5-15 P
- Warranty
- 1 Year Parts Warranty, 1 Year Labor Warranty
Dimensions4
- Length
- 21" (53 cm)
- Width
- 32.5" (83 cm)
- Height
- 17" (43 cm)
- Weight
- 125 lb (56.7 kg)
Shipping4
- Box length
- 21" (53 cm)
- Box width
- 32.5" (83 cm)
- Box height
- 17" (43 cm)
- Shipping weight
- 125 lb (56.7 kg)
Description
Keep your food warm, fresh and ready for service
The Omcan single freestanding narrow drawer warmer is a great choice to keep your food warm and ready for service. The drawer is spacious enough to fit a full size food pan of size 12″ x 20″ x 6″ which comes with the product. Its freestanding design lets you fit the drawer warmer anywhere in your kitchen, and the unit is designed specifically for deep countertops.

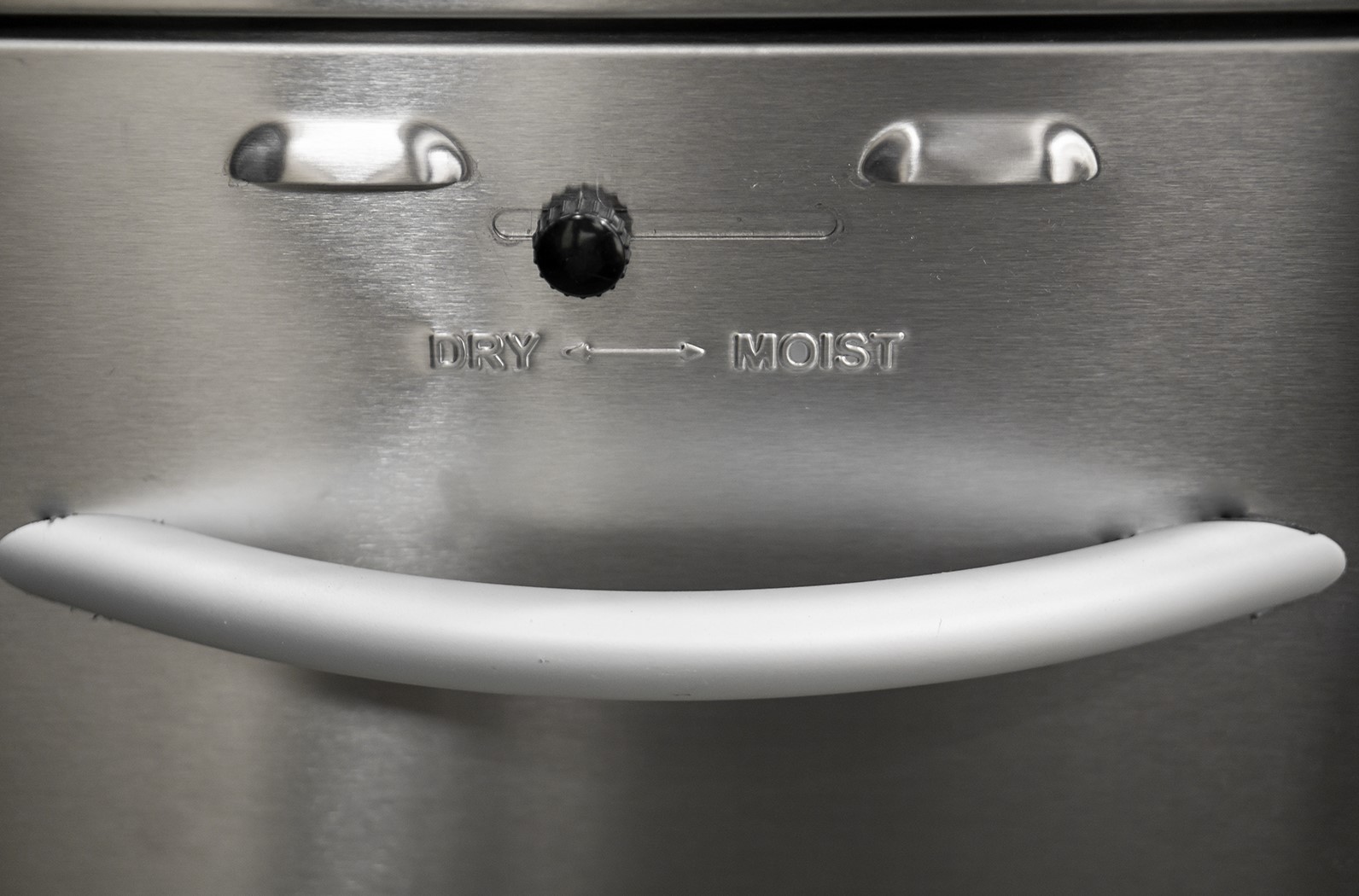

Each drawer has a separate thermostatic control that provide the flexibility to adjust heating temperature in the 80-220 degrees Fahrenheit (27ºC-104.4 ºC) range. The drawer is finished with a 1″ thick fiberglass insulation and built-in drawer gasket that retains heat inside for energy efficiency. The durable stainless steel construction is designed taking into consideration its frequent use in a busy kitchen environment. The drawer warmer is equipped with a vent control feature ranging from ‘dry’ to ‘moist’ that allows to adjust the humidity levels in the warmer.
