Scotsman · MC0522SAX-1

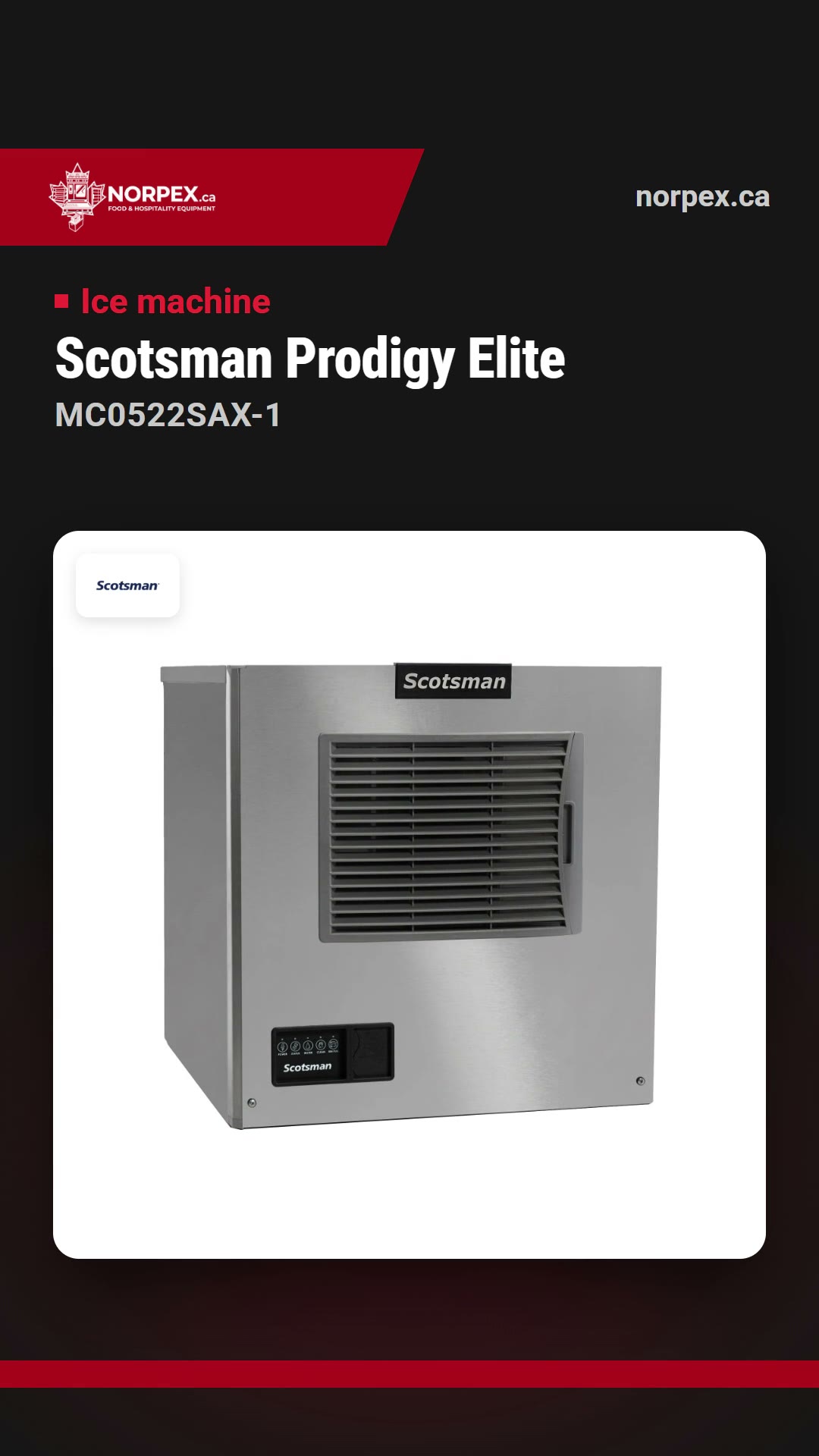

Scotsman MC0522SAX-1 22″ Prodigy Elite Air Cooled Modular Small Cube Ice Machine – 464 Lbs.
- 3-yearmanufacturer warranty
- Voltage: 115V
- Phase: Single phase
- Refrigerant: R-290
- Certification: cULus certified
- Certification: NSF certified
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
- Good dealAt or below the market price for this model
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
From about $535.33/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $200.02/mo · $46.16/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- MC0522SAX-1
- Brand
- Scotsman
- Department
- Refrigeration & Ice
- Voltage
- 115V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Refrigerant
Refrigerant
The gas inside the cooling circuit. R-290 (propane) and R-600a are the newer low-impact refrigerants most makers now use; a service technician works with whichever one the unit holds. - R-290
- Certifications
cULus
A UL certification to both Canadian and US safety standards; the small c and us name the two countries.NSF
A sanitation mark from NSF: the design and materials were judged cleanable and suitable for food use. It is not an electrical safety certification; health inspectors commonly look for it on food equipment.- Manufacturer warranty
- 3 years, parts and labour
About this item
- Stainless steel evaporator and exterior panels for long-term durability.
- every 24h of small ice cubes.
- Environmentally friendly R290 refrigerant.
- Bluetooth connectivity enables machine interaction via the ICELINQ app.
See moreSee less
- External air filters are easily removed for routine sanitary maintenance.
- suitable for hotels, restaurants, bars, healthcare facilities, etc.
- Restaurant Size Recommendation: Suitable for small to medium-sized dining rooms, coffee shops, and bars requiring up to 500 lbs.
- Maintenance Advice: Clean the removable air filters weekly and utilize the guided cleaning sequences in the ICELINQ app.
Item details
Certifications
- Certifications
- NSF, cULus
Warranty & Origin
- Warranty
- 3 Years Parts & Labour, 5 Years Evaporator Plate Parts & Labour, 5 Years Compressor & Condenser Parts
- Country of Origin
- Assembled in USA
Electrical
- Condenser
- Air
- Volts/Hz/Phase
- 115/60/1
- Max Fuse/HACR Breaker (amps)
- 15
- Circuit Wires
- 2
- Min. Circuit Ampacity
- 11.1
- Energy Consumption (kWh/100 lb)
- 5.09
Water Usage
- Potable Water (gal/100 lb)
- 18.7/71.1
Refrigeration
- Refrigerant
- R290
- Refrigerant Charge (oz)
- 6.5
Specifications
- BTUs per hour
- 160
Dimensions
- Length
- 24" (61 cm)
- Width
- 22" (56 cm)
- Height
- 23" (58 cm)
- Weight
- 165 lb (74.8 kg)
Shipping
- Box length
- 28" (71 cm)
- Box width
- 26" (66 cm)
- Box height
- 29" (74 cm)
- Shipping weight
- 160 lb (72.6 kg)
Specs
- Model
- MC0522SAX-1
- Brand
- Scotsman
- Department
- Refrigeration & Ice
- Availability
- In stock
Certifications1
- Certifications
- NSF, cULus
Warranty & Origin2
- Warranty
- 3 Years Parts & Labour, 5 Years Evaporator Plate Parts & Labour, 5 Years Compressor & Condenser Parts
- Country of Origin
- Assembled in USA
Electrical6
- Condenser
- Air
- Volts/Hz/Phase
- 115/60/1
- Max Fuse/HACR Breaker (amps)
- 15
- Circuit Wires
- 2
- Min. Circuit Ampacity
- 11.1
- Energy Consumption (kWh/100 lb)
- 5.09
Water Usage1
- Potable Water (gal/100 lb)
- 18.7/71.1
Refrigeration2
- Refrigerant
- R290
- Refrigerant Charge (oz)
- 6.5
Specifications1
- BTUs per hour
- 160
Dimensions4
- Length
- 24" (61 cm)
- Width
- 22" (56 cm)
- Height
- 23" (58 cm)
- Weight
- 165 lb (74.8 kg)
Shipping4
- Box length
- 28" (71 cm)
- Box width
- 26" (66 cm)
- Box height
- 29" (74 cm)
- Shipping weight
- 160 lb (72.6 kg)
Description
- 22″ modular ice machine
- Stainless steel evaporator and exterior panels for long-term durability
- Produces up to 464 Lbs. every 24h of small ice cubes
- Environmentally friendly R290 refrigerant
- Bluetooth connectivity enables machine interaction via the ICELINQ app
- External air filters are easily removed for routine sanitary maintenance
- suitable for hotels, restaurants, bars, healthcare facilities, etc
Description
The Scotsman MC0522SAX-1 Ice Machine delivers a high-capacity ice solution within a compact 22″ wide footprint. This air-cooled modular unit generates up to 464 lbs. of small, half-diced ice cubes every 24 hours under well-suited conditions. Each cube provides a standard choice for mixed drinks and carbonated beverages in professional settings.
Integration with the ICELINQ mobile application allows kitchen operators to access real-time diagnostics and guided cleaning via a Bluetooth connection. The external AutoAlert panel includes an easy-to-read 16-segment display that communicates machine status from across the room. These technical provides assist managers in maintaining constant production without complex manual checks.
Maintenance efficiency is supported by removable external air filters and WaterSense adaptive purge technology, which optimizes water consumption and keeps the unit cleaner between service intervals. Upgraded sensors for ice thickness and water levels contribute to long-term performance. Preservation mode further protects the hardware by notifying users of potential operational issues before they lead to downtime.
- Restaurant Size Recommendation:Suitable for small to medium-sized dining rooms, coffee shops, and bars requiring up to 500 lbs. of daily ice production.
- Maintenance Advice:Clean the removable air filters weekly and utilize the guided cleaning sequences in the ICELINQ app. Descale the water system regularly to prevent mineral buildup and maintain efficiency.
- Manufacturer’s Warranty:Scotsman delivers a 3 year parts and labor warranty on all components, with 5 year coverage on the evaporator, compressor, and condenser.
Read more
This product was made in United States of America.
This item meets NSF’s standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
Certified by Underwriters Laboratories, this product has been stringently tested and meets US and Canada’s safety standards.
This item meets strict energy performance standards set by EPA. Highly energy efficient making it less expensive to operate.
Manuals and documents4
4 documents
- Installation and User’s Manual for Air and Water Cooled Modular Cuber Prodigy Elite® A Series Models MC0322X, MC0522X, MInstallationPDF, opens in a new tab
- Service Manual for Air, Water, and Remote Cooled Modular Cuber Prodigy Elite® Models MC0322X, MC0522X, MC0722X, MC0330X,ServicePDF, opens in a new tab
- MC0322X, MC0522X and MC0722X Service PartsPartsPDF, opens in a new tab
- Specification SheetSpec sheetPDF, opens in a new tab
Videos1
Reviews
No reviews yet. If this unit is in your kitchen, the next buyer would like to hear how it runs.
Questions about this product
What are the dimensions and weight of the Scotsman MC0522SAX-1?
The Scotsman MC0522SAX-1 measures 22" (56 cm) wide, 24" (61 cm) deep and 23" (58 cm) high, and weighs 165 lb (74.8 kg).
What power supply does the Scotsman MC0522SAX-1 need?
Condenser: Air; Volts/Hz/Phase: 115/60/1; Max Fuse/HACR Breaker (amps): 15; Circuit Wires: 2; Min. Circuit Ampacity: 11.1; Energy Consumption (kWh/100 lb): 5.09.
What is the capacity of the Scotsman MC0522SAX-1?
BTUs per hour: 160.
What certifications does the Scotsman MC0522SAX-1 have?
Certifications: NSF, cULus.
Is the Scotsman MC0522SAX-1 in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Scotsman MC0522SAX-1?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Scotsman MC0522SAX-1?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Scotsman MC0522SAX-1?
The manufacturer lists: 3 Years Parts & Labour, 5 Years Evaporator Plate Parts & Labour, 5 Years Compressor & Condenser Parts. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Scotsman MC0522SAX-1?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
