Ice-O-Matic · CIM0530FW90

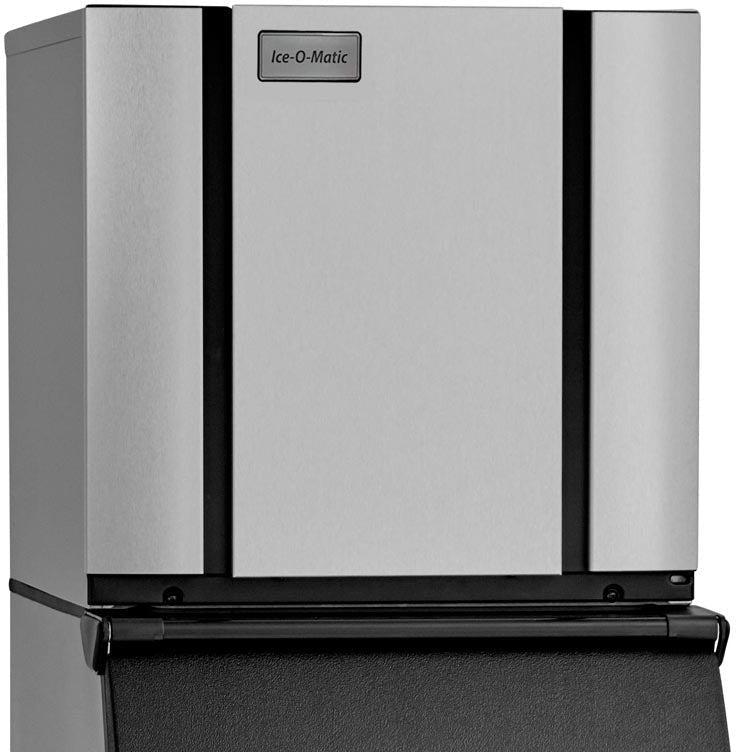

Ice-O-Matic – Elevation Series™ 30″ 586 lb Water Cooled Full Dice Cube Ice Machine – CIM0530FW90

Ice-O-Matic - Elevation Series™ 30" 586 lb Water Cooled Full Dice Cube Ice Machine - CIM0530FW90
  • 3-yearmanufacturer warranty
  • Voltage: 115V
  • Phase: Single phase
  • Refrigerant: R-290A
  • Certification: cULus certified

Questions about this product

What are the dimensions and weight of the Ice-O-Matic CIM0530FW90?

The Ice-O-Matic CIM0530FW90 measures 24.25" (62 cm) wide, 30.25" (77 cm) deep and 21.25" (54 cm) high, and weighs 156 lb (70.8 kg).

What power supply does the Ice-O-Matic CIM0530FW90 need?

Voltage: 115/60/1.

What is the capacity of the Ice-O-Matic CIM0530FW90?

Production: 500 - 600 pounds.

What certifications does the Ice-O-Matic CIM0530FW90 have?

Certifications: cULus.

Is the Ice-O-Matic CIM0530FW90 in stock, and can I buy it online?

It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.

How much does shipping cost for the Ice-O-Matic CIM0530FW90?

Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.

Can I return the Ice-O-Matic CIM0530FW90?

The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.

What warranty comes with the Ice-O-Matic CIM0530FW90?

The manufacturer lists: 3 Years Parts & Labour, 5 Years Evaporator & Compressor Parts. Warranty terms are set by each manufacturer and vary by product line.

Is there a spec sheet for the Ice-O-Matic CIM0530FW90?

Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.

$8,254.99
In stock

Get a quote for this item

Tell us who to send it to. We reply with a written quote, delivery included, the same business day.

No account needed. We only use these details for this quote.

Questions before you buy?

Get a call back

Questions before you buy? Leave your number and a person from Norpex calls you back, usually the same business day.

No account needed. We only use these details to call you about this item.

Pay your way

  • Klarna
    From about $718.05/mo
  • LEASE
    About $268.29/mo · $61.91/wk
Delivery price
Delivery
Returns
Payment
Sold by
Talk to a person
(226) 336-9954, Mon–Fri 8am–6pm ET.

Product details

Top highlights
Model
CIM0530FW90
Voltage
115V
Phase
Single phase
Refrigerant
R-290A
Certifications
Manufacturer warranty
3 years, parts and labour
About this item
  • The Ice-O-Matic Elevation Series™ 30″ Water Cooled Full Dice Cube Ice Machine is engineered for high-volume ice production, making it an ideal solution for restaurants, bars, and other commercial environments.
  • This robust unit can produce approximately 586 lbs of full-size ice cubes in a 24-hour period under optimal conditions (70°F air / 50°F water) and up to 533 lbs at warmer temperatures (90°F air / 70°F water).
  • Featuring a water-cooled, self-contained condenser, this machine operates efficiently and quietly, ensuring a seamless experience in any setting.
  • It is equipped with PURE ICE® built-in antimicrobial protection, which inhibits the growth of bacteria and ensures cleaner ice.
See more
  • The LED status display offers real-time updates on the machine’s operation, while the one-touch sanitizing and descaling controls simplify maintenance routines.
  • Additionally, the dishwasher-safe food zone components facilitate quick and thorough cleaning.
  • Key Features: Ice Production: Capable of producing up to 586 lbs of full-size cubes daily under optimal conditions.
  • Water-Cooled Condenser: Ensures efficient operation while minimizing noise.
Specifications

Certifications1

Certifications
cULus

Warranty & Origin1

Warranty
3 Years Parts & Labour, 5 Years Evaporator & Compressor Parts

Technical Details7

Ice Type
Full Cube
Filter System
IFQ1-XL
Voltage
115/60/1
Condensing Type
Water
Refrigerant
R290A
Production
500 - 600 pounds
BABA Compliant
Yes

Dimensions4

Length
30.25" (77 cm)
Width
24.25" (62 cm)
Height
21.25" (54 cm)
Weight
156 lb (70.8 kg)
Description

The Ice-O-Matic Elevation Series™ 30″ Water Cooled Full Dice Cube Ice Machine is engineered for high-volume ice production, making it an ideal solution for restaurants, bars, and other commercial environments. This robust unit can produce approximately 586 lbs of full-size ice cubes in a 24-hour period under optimal conditions (70°F air / 50°F water) and up to 533 lbs at warmer temperatures (90°F air / 70°F water). Featuring a water-cooled, self-contained condenser, this machine operates efficiently and quietly, ensuring a seamless experience in any setting. It is equipped with PURE ICE® built-in antimicrobial protection, which inhibits the growth of bacteria and ensures cleaner ice. The LED status display offers real-time updates on the machine’s operation, while the one-touch sanitizing and descaling controls simplify maintenance routines. Additionally, the dishwasher-safe food zone components facilitate quick and thorough cleaning. Key Features: Ice Production: Capable of producing up to 586 lbs of full-size cubes daily under optimal conditions. Water-Cooled Condenser: Ensures efficient operation while minimizing noise. Full-Size Cubes: Perfect for various beverage applications requiring substantial ice. PURE ICE® Antimicrobial Protection: Helps maintain cleaner and safer ice production. LED Status Display: Provides instant updates on machine performance and maintenance alerts. One-Touch Controls: Streamlines the sanitizing and descaling processes for easier upkeep. Dishwasher Safe Components: Allows for quick and convenient cleaning of food zone parts. Certifications: cULus, NSF, and CE certified for safety and compliance with energy efficiency standards.
