Ice-O-Matic · CIM0520HA

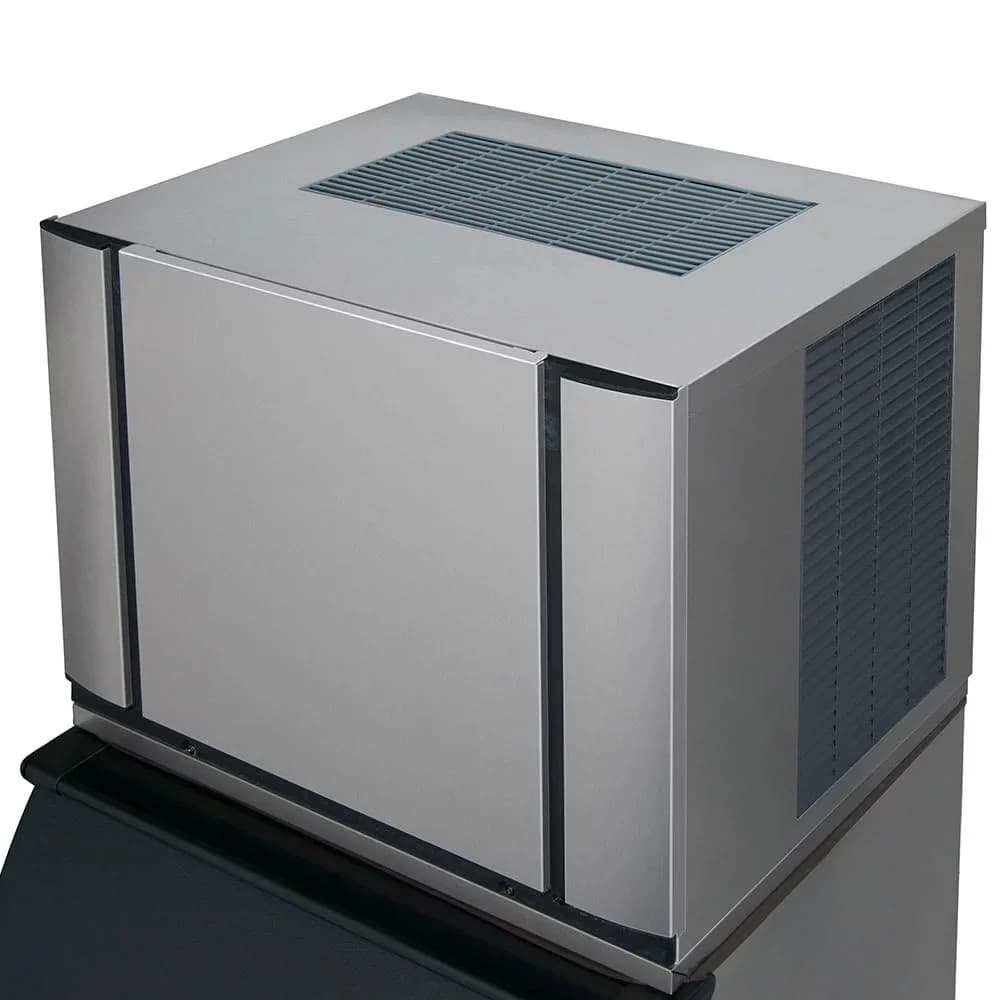

Ice-O-Matic CIM0520HA 22″ Elevation Series Air Cooled Modular Half Size Cube Ice Machine – 561 Lbs
- 3-yearmanufacturer warranty
- ENERGY STARcertified
- Voltage: 115V
- Phase: Single phase
- Refrigerant: R-290A
- Certification: ENERGY STAR
Shipping time
Leaves the warehouse in 1–3 business days
Delivery 7–10 business days after it ships
How checkout works
Choose available delivery options and continue to secure payment at checkout. Taxes and the final total are shown before payment.
Pay your way
About these plans
Before tax and delivery. Klarna and Afterpay plans are approved and set at checkout.
From about $571.05/moKlarna monthly financing
12 monthly payments · 7.99%–34.9% APR, set by Klarna at checkout on approval
- LEASEAbout $213.36/mo · $49.24/wk
Delivery discount
30% off delivery or more, and it can be free depending on the order and your postal code.
- Delivery
Shipping and delivery
Read the full shipping pageShipping options are confirmed before you pay.
Shipping is calculated at checkout for supported items and Canadian delivery addresses, and confirmed before you pay.
We prepare your order and hand it to the carrier within 1–3 business days of payment.
Delivery takes 7–10 business days after it ships.
Ranges, refrigeration, furniture and other heavy items ship by freight carrier. Tell us if you need a liftgate, a delivery appointment or inside delivery.
These are estimates: freight bookings, special-order items, remote addresses and carrier delays can add time. If your order runs late, we will email you.
- Returns
Returns
Read the returns policyAll sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time, so inspect every delivery before signing for it.
- Payment
Secure payment
Terms of saleCheckout runs on Stripe; card numbers never reach Norpex. A card is authorized at checkout and charged only after we confirm availability with the supplier; if the order cannot be filled, the hold is released.
Klarna and Afterpay plans are approved and set at checkout. Bank transfer and Interac e-Transfer are offered at checkout too.
- Sold by
Norpex
About NorpexNorpex is a business name of 12756528 Canada Inc.. Orders ship from our fulfillment center or the supplier's Canadian warehouse, whichever is closest to you.
- Talk to a person
- (226) 336-9954, Mon–Fri 8am–6pm ET.
Project pricing
Start your project quoteSend your equipment list, drawing or spec sheet and we match each line to live Canadian inventory, then get back to you with pricing, financing and freight within one business day.
Prefer to talk? Call (226) 336-9954.
Product details
Top highlights
- Model
- CIM0520HA
- Brand
- Ice-O-Matic
- Department
- Refrigeration & Ice
- Voltage
- 115V
- Phase
Phase
Single phase is the ordinary supply most plug-in equipment uses (120 V or 208 to 240 V). Three phase is a heavier commercial supply that large ovens, fryers and dishwashers use; an electrician can confirm which your building has. - Single phase
- Refrigerant
Refrigerant
The gas inside the cooling circuit. R-290 (propane) and R-600a are the newer low-impact refrigerants most makers now use; a service technician works with whichever one the unit holds. - R-290A
- Certifications
ENERGY STAR
An efficiency label, administered in Canada by Natural Resources Canada, for equipment that meets set energy-use criteria. Some utilities offer rebates on certified models.- Manufacturer warranty
- 3 years, parts and labour
About this item
- Dishwasher-safe water distribution tube and plastic foodzone parts make cleaning easy.
- 22.25″ (565 mm) wide space-saving design.

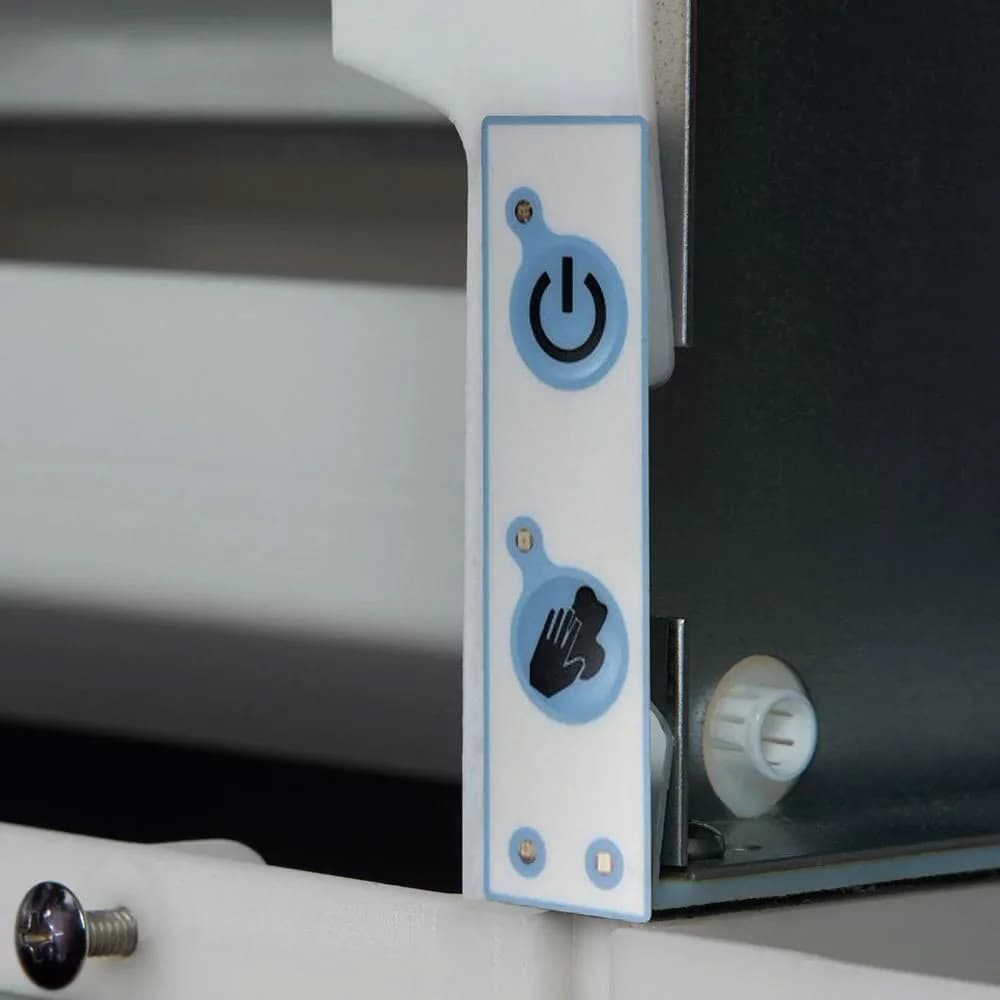

- 1-touch sanitizing and descaling, indicator LEDs notify you when cleaning is required.
- Agion antimicrobial protection, side and top exhaust discharge.
See moreSee less
- Smart Harness control board delivers digital diagnostics and access to components.
- UL Canada & USA Certified by Underwriters Laboratories, this product has been stringently tested and meets US and Canada’s safety standards.
- NSF Certified This item meets NSF’s standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
- CE Certified This item has been assessed and meets health, safety, and environmental requirements set by CE.
Item details
Warranty & Origin
- Warranty
- 3 Years Parts & Labour, 5 Years Evaporator & Compressor Parts
Technical Details
- Ice Type
- Half Cube
- Filter System
- IFQ1-XL
- Voltage
- 115/60/1
- Condensing Type
- Air
- Refrigerant
- R290A
- Production
- 500 - 600 pounds
- Energy Star
- Yes
- BABA Compliant
- Yes
Dimensions
- Length
- 24.25" (62 cm)
- Width
- 22.25" (57 cm)
- Height
- 21.25" (54 cm)
- Weight
- 363.76 lb (165 kg)
Specs
- Model
- CIM0520HA
- Brand
- Ice-O-Matic
- Department
- Refrigeration & Ice
- Availability
- In stock
Warranty & Origin1
- Warranty
- 3 Years Parts & Labour, 5 Years Evaporator & Compressor Parts
Technical Details8
- Ice Type
- Half Cube
- Filter System
- IFQ1-XL
- Voltage
- 115/60/1
- Condensing Type
- Air
- Refrigerant
- R290A
- Production
- 500 - 600 pounds
- Energy Star
- Yes
- BABA Compliant
- Yes
Dimensions4
- Length
- 24.25" (62 cm)
- Width
- 22.25" (57 cm)
- Height
- 21.25" (54 cm)
- Weight
- 363.76 lb (165 kg)
Description
- Produces up to 561 lb. of half cube ice per day
- Dishwasher-safe water distribution tube and plastic foodzone parts make cleaning easy
- 22.25″ (565 mm) wide space-saving design
- 1-touch sanitizing and descaling, indicator LEDs notify you when cleaning is required
- Agion antimicrobial protection, side and top exhaust discharge
- Smart Harness control board delivers digital diagnostics and access to components
Description
Choose this Ice-O-Matic CIM0520HA 22″ air cooled ice machine for dependable ice production and a host of smart design includes that will help your business run at maximum efficiency! This ice machine is able to producing up to 561 lb. of half cube (3/8″ x 7/8″ x 7/8″) ice per day and it exceeds energy regulations for ice machines, providing superior efficiency that will save you on your utility bill. All ice machines require frequent maintenance and cleaning to keep them running properly, so it’s important to choose a model that will make this process as easy and as fast as possible. Ice-O-Matic’s Elevation series accomplishes this by making the foodzone components out of recyclable, dishwasher-safe, and BPA-free plastic. Simply snap each piece out, run them through a dishwasher cycle, and then snap them back into place to get back to producing ice! The entire disassembly process takes mere minutes, which makes it easier for your employees to do, and also makes it more likely that it will be done when the machine requires it. Additionally, key components utilize Agion antimicrobial protection to help inhibit harmful pathogens from growing in the first place.
The Universal Smart Harness control board system allows easy access, and delivers digital diagnostics, universal components and a common configuration that together make it easy and intuitive to set up your new machine, and to find and fix a problem should one arise. This translates to shorter installation times, easier service calls, and more money saved on your bottom line! This air-cooled model also addresses tricky installation clearance requirements with its unique dual-exhaust design! Because it has hot air discharge vents on both the top and the side, this unit can be installed in a wider range of locations without fear of obstructing the exhaust. It uses R404A refrigerant and requires a 115V electrical connection.
Read more
Manuals and documents4
Reviews
No reviews yet. If this unit is in your kitchen, the next buyer would like to hear how it runs.
Questions about this product
What are the dimensions and weight of the Ice-O-Matic CIM0520HA?
The Ice-O-Matic CIM0520HA measures 22.25" (57 cm) wide, 24.25" (62 cm) deep and 21.25" (54 cm) high, and weighs 363.76 lb (165 kg).
What power supply does the Ice-O-Matic CIM0520HA need?
Voltage: 115/60/1.
What is the capacity of the Ice-O-Matic CIM0520HA?
Production: 500 - 600 pounds.
What certifications does the Ice-O-Matic CIM0520HA have?
Energy Star: Yes.
Is the Ice-O-Matic CIM0520HA in stock, and can I buy it online?
It is in stock and can be bought online by card: choose a delivery option at checkout, and taxes and the final total are shown before payment.
How much does shipping cost for the Ice-O-Matic CIM0520HA?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer.
Can I return the Ice-O-Matic CIM0520HA?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
What warranty comes with the Ice-O-Matic CIM0520HA?
The manufacturer lists: 3 Years Parts & Labour, 5 Years Evaporator & Compressor Parts. Warranty terms are set by each manufacturer and vary by product line.
Is there a spec sheet for the Ice-O-Matic CIM0520HA?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
