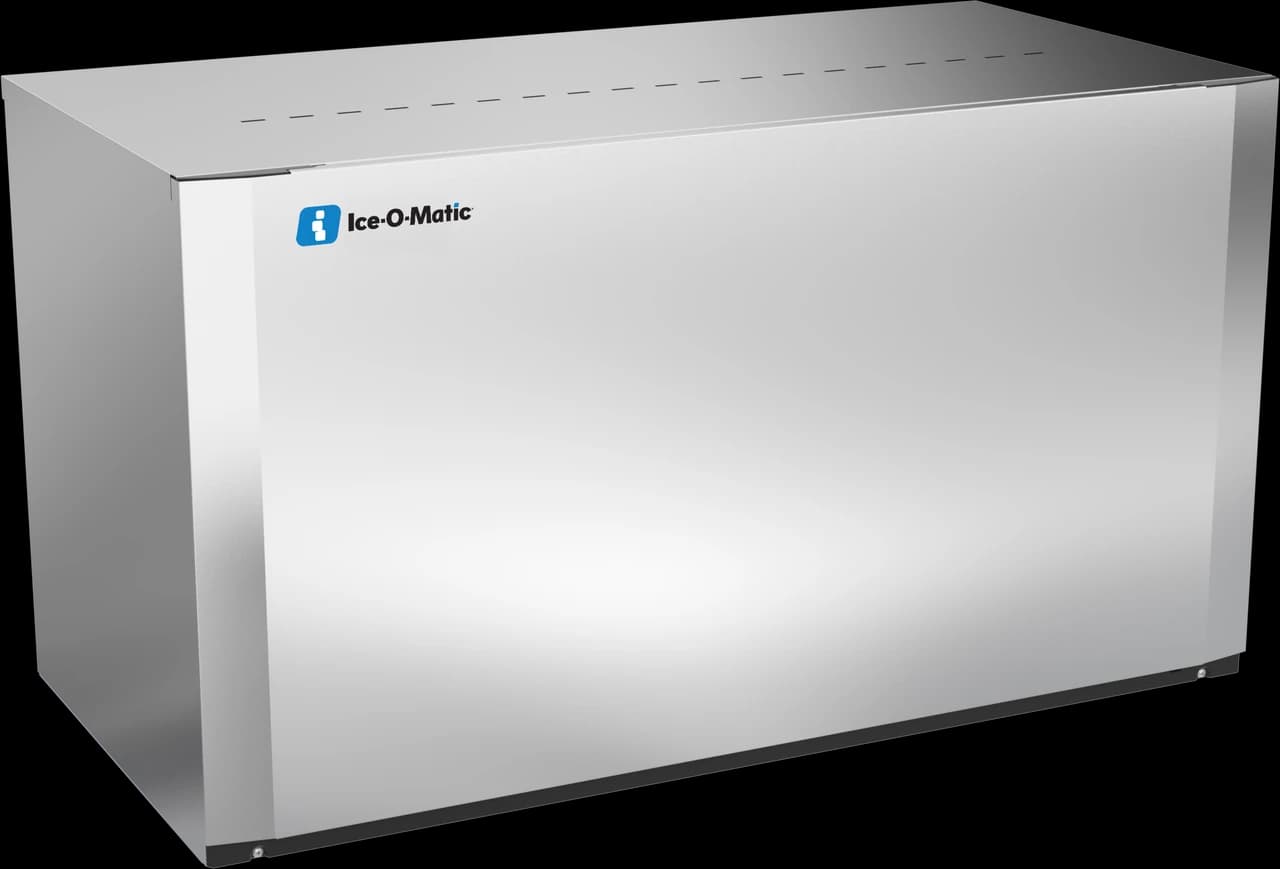

Ice-O-Matic · CIM2046HW49
Ice-O-Matic – 48″ Water-Cooled Half Cube Ice Machine, 1800–1900 lb/day, 208-230V – CIM2046HW49
- Voltage: 208-230V
- Phase: Single phase
- Refrigerant: R-449A
Priced on request
In stock
Volume-priced item. A specialist replies with exact pricing within one business day. Prefer the full quote form?
Product info
Ice-O-Matic cube ice maker: half cube ice, water-cooled condenser, 1800–1900 lb a day, 208-230V.
Specs
- Model
- CIM2046HW49
- Brand
- Ice-O-Matic
- Department
- Refrigeration & Ice
- Availability
- In stock
Dimensions
- Exterior Dimensions WxDxH
- 48.25 x 24.25 x 26.8
- Width
- 48"
- Shipping Weight
- 329 lbs / 149 kg
- Shipping Dimensions (in.)
- 51 (W) x 27 (D) x 33 (H)
Specifications
- Ice Type
- Half Cube
- Filter System
- IFQ2-XL
- Condensing Type
- Water
- Refrigerant
- R449A
- Production
- 1800 - 1900 pounds
Electrical
- Voltage
- 208-230/60/1
- Min. Circuit Amp
- 24.1
- Max Breaker Size
- 40 A
Description
Ice-O-Matic cube ice maker: half cube ice, water-cooled condenser, 1800–1900 lb a day, 208-230V.
- Uses R449A for a more environmentally friendly and efficient refrigerant.
- Water condensed unit .

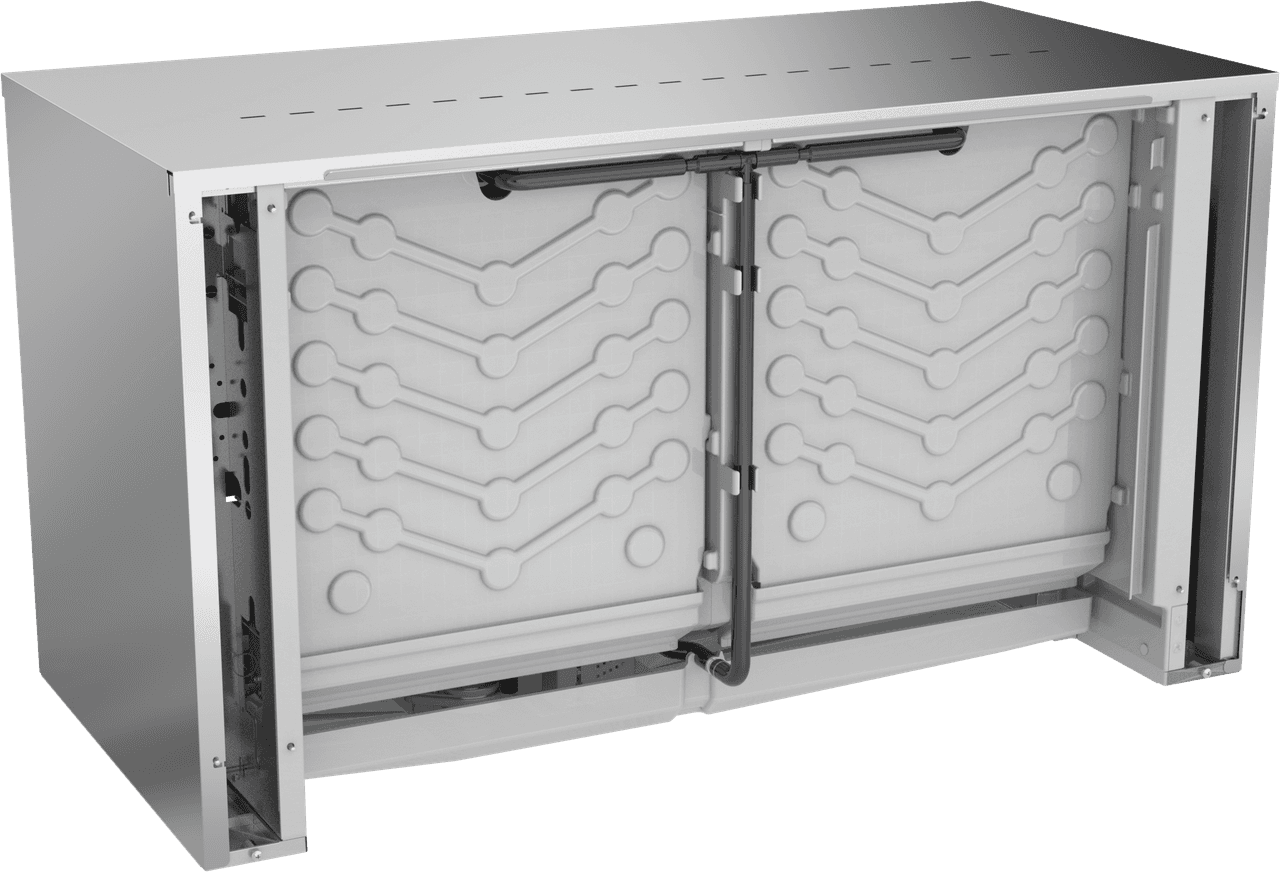

- Easy to clean with front facing evaporator and dishwasher safe (up to 180°F) components.
- Easy and quick cleaning reduces operating costs.
- Simple service with many common parts across all CIM machines.
- Harvest Assist provides consistent ice production for the life of the ice maker while reducing energy consumption and increasing capacity.
- Durable, electroless nickel plating on all evaporator plates ensures reliability.
- Constructed from corrosion-resistant and fingerprint-proof aluminum.
Manuals and documents4
Reviews
No reviews yet. If this unit is in your kitchen, the next buyer would like to hear how it runs.
Questions about this product
What are the dimensions and weight of the Ice-O-Matic CIM2046HW49?
The Ice-O-Matic CIM2046HW49 measures 24.25 × 48.25 × 26.8 in (length × width × height), and weighs 329 lb.
What power supply does the Ice-O-Matic CIM2046HW49 need?
Voltage: 208-230/60/1; Min. Circuit Amp: 24.1; Max Breaker Size: 40 A.
What is the capacity of the Ice-O-Matic CIM2046HW49?
Production: 1800 - 1900 pounds.
Is the Ice-O-Matic CIM2046HW49 in stock, and can I buy it online?
It is in stock. It is ordered through a quote rather than online checkout. Large equipment, configured machines and anything that cannot be bought online are priced by a person on a quote, with freight included. Quotes come back within one business day.
How much does shipping cost for the Ice-O-Matic CIM2046HW49?
Norpex ships to delivery addresses across Canada. Equipment ships from distributor warehouses, so dispatch timing depends on the supplier and the destination. For items that can be bought online, shipping is calculated at checkout from live carrier rates for the delivery address and confirmed before payment. Some products ship free: their product page says so, and checkout applies it automatically. There is no flat-rate offer. Ranges, refrigeration and other heavy equipment ship by freight carrier. A liftgate, a delivery appointment or inside delivery needs to be arranged with Norpex before paying.
Can I return the Ice-O-Matic CIM2046HW49?
The returns rule depends on the type of item. All sales at Norpex are final: commercial equipment, smallwares, tabletop and supplies cannot be returned or exchanged. Damaged, missing or wrong items are made right when reported on time. Commercial equipment is final sale with no returns or exchanges, so confirm voltage, phase, gas type and door swing before ordering.
Is there a spec sheet for the Ice-O-Matic CIM2046HW49?
Yes. The manufacturer's spec sheet is under Manuals and documents on this page, as a PDF you can download.
