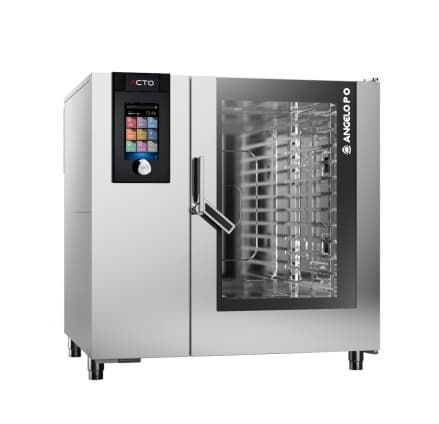

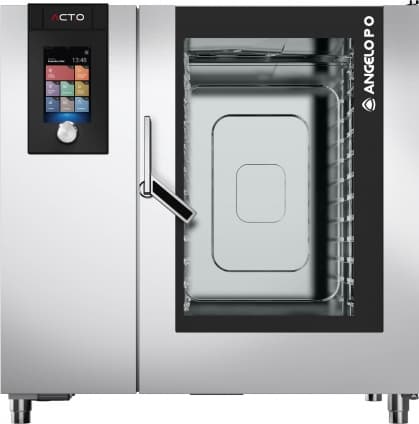

Angelo Po – ACT.O Gas Combi Oven — 12 x GN 2/1 – AT122GW

The Angelo Po AT122GW is a 12-pan gas combi oven from the ACT. O line, holding 12 x GN 2/1 or 24 x GN 1/1 containers — accommodating 12 full-size 26" x 18" bake sheets or 24 steam table pans per load, with capacity for 32 chickens per load. Rated at 121,000 BTU/hr, it's built for higher-volume operations that need substantial daily throughput.

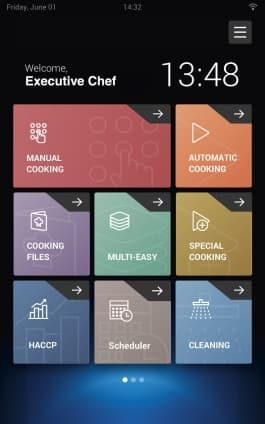

The 10" capacitive touchscreen with rotary scroller selector delivers clear, responsive navigation across customizable home screens, user-specific access profiles, and full cooking/washing schedule programming. Remote access via smartphone, tablet, or desktop (iOS/Android/Windows) puts control in the palm of your hand — or off-site via APO. LINK cloud connectivity.

ACT. O's boilerless steam generation system produces steam directly in the chamber, delivering faster heat-up, lower energy use, and reduced maintenance without sacrificing performance. Cooking modes include Convection (86–572°F), Steam (86–257°F with 3 intensity levels), Combination (86–572°F with 5% humidity steps), Low Temp/Delta T for slow overnight cooking, and Regeneration for reheating plated or bulk food. Optional SMOK and FMP accessories unlock smoking and in-jar pasteurization.

The high-grade AISI 304 and 316L stainless steel chamber features joint-free rounded edges, an electropolished removable container rack fitting GN 1/1, 2/3, and 1/2 pans, and a double-glazed low-emissivity tempered glass door with 90° and 130° stops. Auto wash with detergent recirculation runs a 4 wash, 2 descale, 1 rinse cycle using liquid or Power Pearls detergent sachets. IPX5 water protection, magnetic door microswitch, and HACCP-compliant data logging round out the safety features.

Functional Features:

• 10" capacitive touchscreen with rotary scroller selector
• Multi-user profiles with role-based access
• MULTI. TIMER — up to 20 simultaneous timers

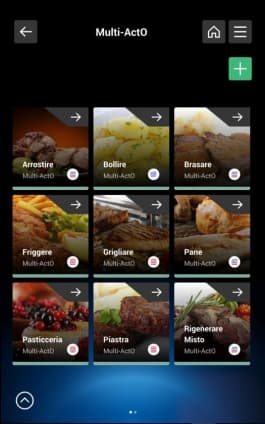

• MULTI. ACTO — cook multiple items using compatible programs simultaneously

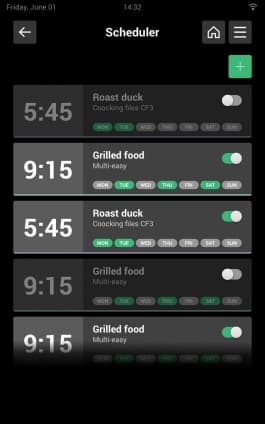

• Weekly Scheduler with auto-start for cooking or washing
• Continue Cooking, ECO Mode, Power Boost
• USB port for recipe transfer, software updates, and data backups
• Remote monitoring and control via APO. LINK (Wi-Fi/Ethernet ready)

Cooking Modes:

• Convection: 86–572°F dry heat with active airflow
• Steam: 86–257°F pure steam, 3 selectable intensity levels
• Combination: 86–572°F hot air + steam, 5% humidity steps

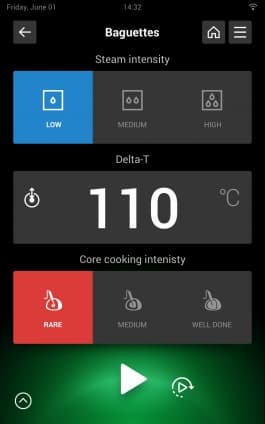

• Low Temp/Delta T: slow, core-temperature-guided cooking
• Regeneration: even reheating of plated or bulk food
• Vacuum & Pasteurisation (FMP accessory required)
• Drying & Smoking (SMOK accessory required)

Construction:

• High-grade AISI 304 and 316L stainless steel chamber, joint-free rounded edges
• Electropolished, removable container rack (fits GN 1/1, 2/3, 1/2 pans)
• Double-glazed, low-emissivity tempered glass door, 90°/130° stops
• High-efficiency LED chamber lighting
• 100mm adjustable AISI 304 stainless steel feet
• Triple-insulated with radiant heat barriers and thermal shielding
• Fold-down partition for easy heat exchanger access

Safety Features:

• IPX5 water protection rating
• Magnetic door microswitch and fan rotation cut-off
• Automatic cooling with door closed
• Thermal protection on chamber, control board, inverter, fan motor
• Overload and water failure alarms with diagnostic codes
• HACCP-compliant data logging
• Self-diagnostics with alert notifications

Cleaning & Maintenance:

• Auto wash with detergent recirculation
• 4 wash, 2 descale, 1 rinse cycle
• Supports liquid or Power Pearls
• Easy-access drain and service panel

Technical Specifications:

• Model: AT122GW
• Oven Dimensions: 46.5" × 42.7" × 48.2"
• Chamber Dimensions: 35.0" × 32.5" × 36.4"
• Containers: 12 × GN 2/1 or 24 × GN 1/1
• Container Spacing: 2.7"
• Container Dimensions: 20.9" × 25.6" × 2.5"
• Gas Input Rate: 121,000 BTU/Hr
• Electrical: 120V/1Ph/60Hz — Max 35.5 kW, Min 11.7 kW
• Chicken Capacity: 32 chickens per load
• Water Pressure: 30–60 psi (100–400 kPa)
• Water Flow Rate: 24 L/h (≈6.34 GPH)
• Net Weight: 568 lbs (258 kg)
• Gross Weight: 602 lbs (273 kg)
• Certifications: CE, NSF, ETL/cETL (Intertek)

Included Accessories:

• Multipoint core probe (5-point sensor)
• Removable pan rack (12 x GN 2/1 or 24 x GN 1/1)
• User manual with cooking guidance
• After-sales support kit

Optional Accessories:

• SMOK kit (smoking)
• FMP kit (in-jar pasteurisation)
• Additional core probe (vacuum or multipoint)
• KIOT kit (Wi-Fi connectivity)
