The Minipack Double Chamber Swing Lid F&B Seal Vacuum Sealer is a reliable and durable model designed for heavy-duty use in food and beverage industries, combining simplicity with robust functionality. The Minipack Double Chamber Swing Lid F&B Seal Vacuum Sealer is designed to meet the rigorous demands of commercial food packaging operations, offering efficient vacuum sealing with advanced features and durable construction.
Key Features:
Chamber & Seal Bars:
- Chamber Dimensions: 27.00″ x 35.00″ x 10.00″
-
Number of Seal Bars: 2 lid-mounted seal bars

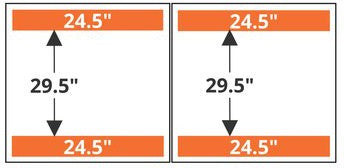

- Front & Back Seal Bars:
- Position: Front & Back
- Length: 2 x 24.50″
- Distance between: 29.50″
- Left & Right Seal Bars:
- Position: Left & Right
- Length: 2 x 33.00″
- Distance between: 21.00″
- Front & Back Seal Bars:
- Quick Change Seal Bars with Independent Power to each Seal Bar
Performance:
- Pump Type: Busch R5 Oil Rotary
- Cycles per Minute: Up to 3
-
Free Air Displacement:
- @ 50Hz: 160 m³/h
- @ 60Hz: 190 m³/h
- Pump Power Rating: 8 hp
- Power Supply: 200-240V / 3ph / 38A
Display & Controls:
- Water Resistant Digital Display (IP65)
- Selectable Control (Time or %)
- Electronic Millibar Sensor
- Customizable Programs: 9
Operational Features:
- Programmable Sealbar Pre-Heat
- Programmable Sealing Time
- Gentle Air Return
- Gas Plus Program (pouch ballooning)
- Extra Vacuum (30 sec)
- Fast & Hygienic Lid Evacuation
- High Volume Density Plates for efficient packaging
Service:
- Pump Conditioning
- Self Diagnostic
- Indicating Display
- Toolless Valve Replacement
- Programmable Service Reminder
- 1 Year Limited Warranty, 2nd Year Conditional Warranty (VP Program)
Housing & Dimensions:
- Material: Stainless 304
- Lid Type / Lid Spring Alignment: Swing Lid / Horizontal
- Width x Length: 58.75″ x 38.75″
- Height (Lid open/closed): 53.00″ / 43.00″
- Working Height: 33″
- Locking Casters for mobility
- Shipping Weight: 1480 lbs
