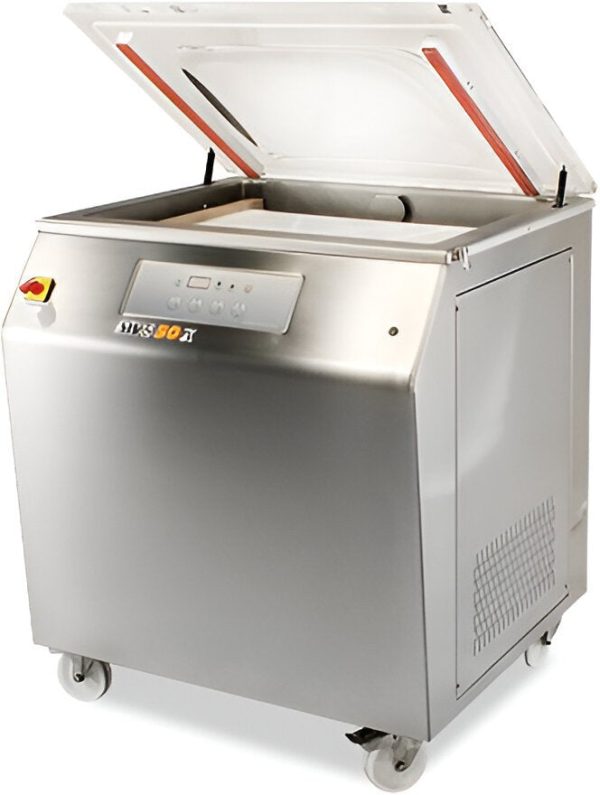

The Minipack Double Chamber Swing Lid F&B Seal Vacuum Sealer is a robust and reliable model designed for heavy-duty use in food and beverage industries, offering straightforward functionality and durability. The Minipack Double Chamber Swing Lid F&B Seal Vacuum Sealer is designed to meet the rigorous demands of industrial food and beverage packaging, providing efficient vacuum sealing with advanced features for ease of use and maintenance.
Key Features:
Chamber & Seal Bars:
- Chamber Dimensions: 45.50″ x 35.75″ x 11.00″
-
Number of Seal Bars: 2 lid-mounted seal bars
- Front & Back Seal Bars:
- Position: Front & Back
- Length: 2 x 43.25″
- Distance between: 28.75″
- Left & Right Seal Bars:
- Position: Left & Right
- Length: 2 x 33.5″
- Distance between: 39.50″
- Front & Back Seal Bars:
- Quick Change Seal Bars with Independent Power to each Seal Bar
Performance:
- Pump Type: Busch R5 Oil Rotary
- Cycles per Minute: Up to 3
-
Free Air Displacement:
- @ 50Hz: 300 m³/h
- @ 60Hz: 360 m³/h
- Pump Power Rating: 12 hp
- Power Supply: 220V / 3ph / 40A
Display & Controls:
- Water Resistant Digital Display (IP65)
- Selectable Control (Time or %)
- Electronic Millibar Sensor
- Customizable Programs: 9
Operational Features:
- Programmable Sealbar Pre-Heat
- Programmable Sealing Time
- Gentle Air Return
- Gas Plus Program (pouch ballooning)
- Extra Vacuum (30 sec)
- Fast & Hygienic Lid Evacuation
- High Volume Density Plates for efficient packaging
Service:
- Pump Conditioning
- Self Diagnostic
- Indicating Display
- Toolless Valve Replacement
- Programmable Service Reminder
- 1 Year Limited Warranty, 2nd Year Conditional Warranty (VP Program)
Housing & Dimensions:
- Material: Stainless 304
- Lid Type / Lid Spring Alignment: Swing Lid / Horizontal
- Width x Length: 95.50″ x 38.50″
- Height (Lid open/closed): 63.25″ / 46.00″
- Working Height: 33″
- Locking Casters for mobility
- Shipping Weight: 2128 lbs
