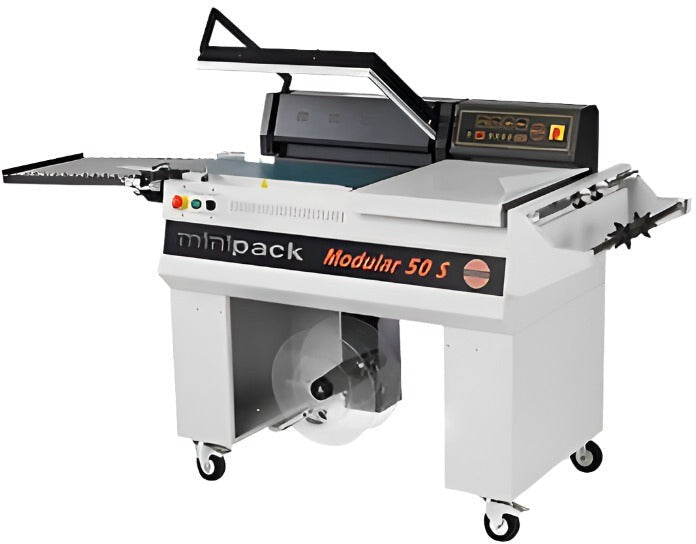

The Modular 50 Semi-Automatic Shrink Wrapper is a reliable and efficient packaging solution, designed to handle a variety of products with precision and ease. Ideal for users who require a dependable shrink wrapping machine that combines simplicity with high performance. The Minipack 22″ x 16″ x 9″ Semi-Automatic Shrink Wrapper offers a perfect balance of durability, functionality, and ease of use, making it an excellent choice for businesses seeking efficient and reliable packaging solutions.
Key Features:
Sealing Area:
- Maximum Product Size: 22″ x 16″ x 9″ (W x L x H)
- Center Folded Film Types: Polyolefin / PVC
- Maximum Roll Width: 24″
- Maximum Roll Diameter: 10″
- Adjustable Product Height
- Programmable Seal Arm Opener
- Teflon Coated Sealing Blade
- Programmable Sealing Blade Temperature
Performance:
- Wraps per Minute: 12-16 items
- External Pneumatic Seal Pressure Required: No
- Power Supply: 208V / 3ph / 11A
Display & Controls:
- Water Resistant LED Display
- Digital Controls
- Customizable Programs: 6
Operational Features:
- Machine Type: Semi-Automatic
- Automatic Process: Seal»Cut»Release»Advance
- Sealing Blade Heat: Impulse
- Precision Blade Cooling System: Coolant Fluid
- Sealing Activation Modes: Timer / Push Button / Foot Pedal (optional)
- Automatic Seal Arm Closure
- Auto-Discharge Conveyor
- Conveyor Belt Modes: Continuous / Step-Advance
- Programmable Conveyor Speed
- Automatic Waste Winder
- Tearless Perforation System
- Overheat Safety Circuit
- Patented Safety System
Service:
- Easy Frontal Access
- Indicating Display
- Error Codes
- 1 Year Limited Warranty
Housing & Dimensions:
- Material: Steel / Baked Enamel
- Dimensions: 63″ x 30″ (W x L)
- Height (Lid open/closed): 55″ / 44″
- Working Height: 34″
- Locking Casters
- Weight (Net/Shipping): 332lbs / 398lbs
