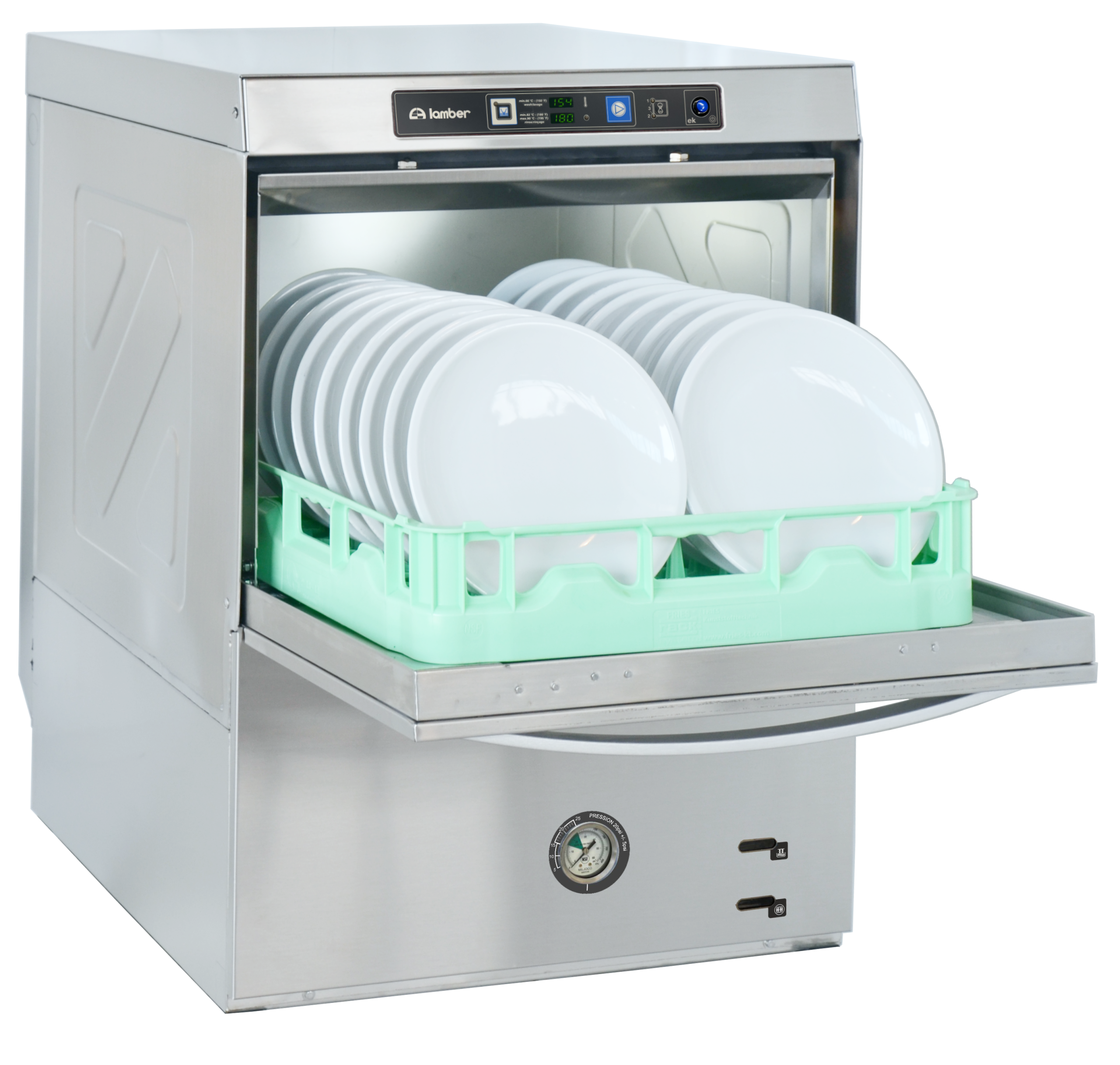

This professional under counter dishwasher is capable of delivering up to 600 dishes per hour with 4 operation cycles that ensure clean and sanitized dishes. The compact stainless steel design makes it ideal for commercial kitchens that require reliable and long-lasting performance during service hours. – Exclusive DPS model equipped with top rotating rinse arm provides thorough water coverage for improved cleaning performance. – Built?in drain pump enables flexible installations where gravity drainage is not available. – Thermostatic control system maintains the selected wash and rinse temperatures throughout every cycle. – Features like automatic tank loading, soft start, and integrated soap and rinse pumps reduce manual tasks.
Specifications
Power: 3550 W – 208 V – 1 PH – 60 Hz – 17 A Clearance: 12.6″ (32 cm) Rack dimensions: 19.6″ x 19.6″ (50 cm x 50 cm) Work height: 15.3″ (38 cm) Tank capacity: 4 gal (15 L) Wash cycle duration: 2 – 3 – 4 – 15 min. Wash cycle capacity: 30/20/15/4 baskets/h Water consumption per cycle: 0.6 gal (2 L) Electric pump: 550 W Wash tank element: 2000 W Rinse tank element: 3000 W Boiler capacity: 1.32 gal (5 L) Water inlet temperature: 131 ÷ 140 °F (55 ÷ 60 °C) Water inlet connection: 3/4″ G Water outlet connection 32 mm?/?3/4″ Inlet water pressure: 40 ÷ 80 psi Water hardness: 7.2 ÷ 12.5 °F (-13 ÷ -10 °C) Rinse temperature: 180 ÷ 195 °F (82 ÷ 90 °C) Noise level: < 70 dB (A) Dimensions: Length: 25.6" (65 cm) Width: 23.7" (60 cm) Height: 32.2" (81 cm) Connection: Hardwired – 1 phase Net weight: 136 lb (62 kg) UPC: 990022850915Power: 3550 W – 208 V – 1 PH – 60 Hz – 17 A Clearance: 12.6" (32 cm) Rack dimensions: 19.6" x 19.6" (50 cm x 50 cm) Work height: 15.3" (38 cm) Tank capacity: 4 gal (15 L) Wash cycle duration: 2 – 3 – 4 – 15 min. Wash cycle capacity: 30/20/15/4 baskets/h Water consumption per cycle: 0.6 gal (2 L) Electric pump: 550 W Wash tank element: 2000 W Rinse tank element: 3000 W Boiler capacity: 1.32 gal (5 L) Water inlet temperature: 131 ÷ 140 °F (55 ÷ 60 °C) Water inlet connection: 3/4" G Water outlet connection 32 mm?/?3/4" Inlet water pressure: 40 ÷ 80 psi Water hardness: 7.2 ÷ 12.5 °F (-13 ÷ -10 °C) Rinse temperature: 180 ÷ 195 °F (82 ÷ 90 °C) Noise level: < 70 dB (A) Dimensions: Length: 25.6" (65 cm) Width: 23.7" (60 cm) Height: 32.2" (81 cm) Connection: Hardwired – 1 phase Net weight: 136 lb (62 kg) UPC: 990022850915
